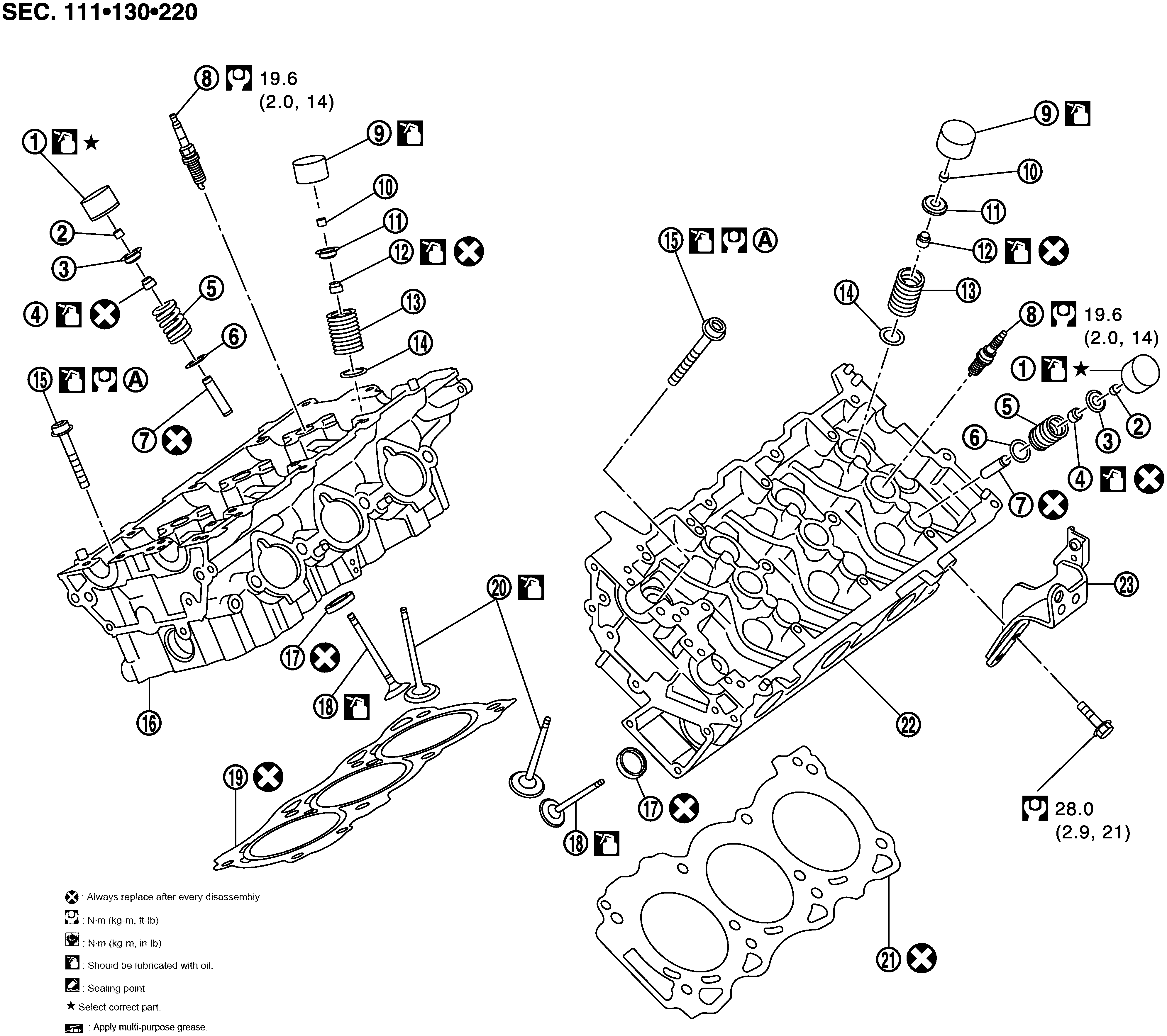

Exploded View With Torque Specifications
| 1. | Valve lifter (EXH) | 2. | Valve collet (EXH) | 3. | Valve spring retainer (EXH) |
| 4. | Valve oil seal (EXH) | 5. | Valve spring (EXH) | 6. | Valve spring seat (EXH) |
| 7. | Valve guide (EXH) | 8. | Spark plug | 9. | Valve lifter (INT) |
| 10. | Valve collet (INT) | 11. | Valve spring retainer (INT) | 12. | Valve oil seal (INT) |
| 13. | Valve spring (INT) | 14. | Valve spring seat (INT) | 15. | Cylinder head bolt |
| 16. | Cylinder head (bank 1) | 17. | Valve seat (EXH) | 18. | Valve (EXH) |
| 19. | Cylinder head gasket (bank 1) | 20. | Valve (INT) | 21. | Cylinder head gasket (bank 2) |
| 22. | Cylinder head (bank 2) | 23. | Engine rear lower slinger | ||
| A. | Comply with the installation procedure when tightening. Refer to DISASSEMBLY AND ASSEMBLY | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
CAUTION:
A high degree of precision is required for a valve on the intake side. Never remove the valve related parts unless necessary.
NOTE:
- As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly and cylinder head assembly. (Only valve oil seals are replaceable as a single part.)
- VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.
