When New Cylinder Block Is Used

Check the cylinder bore grade ("1", "2" or "3") on rear side of cylinder block, and select piston of the same grade.

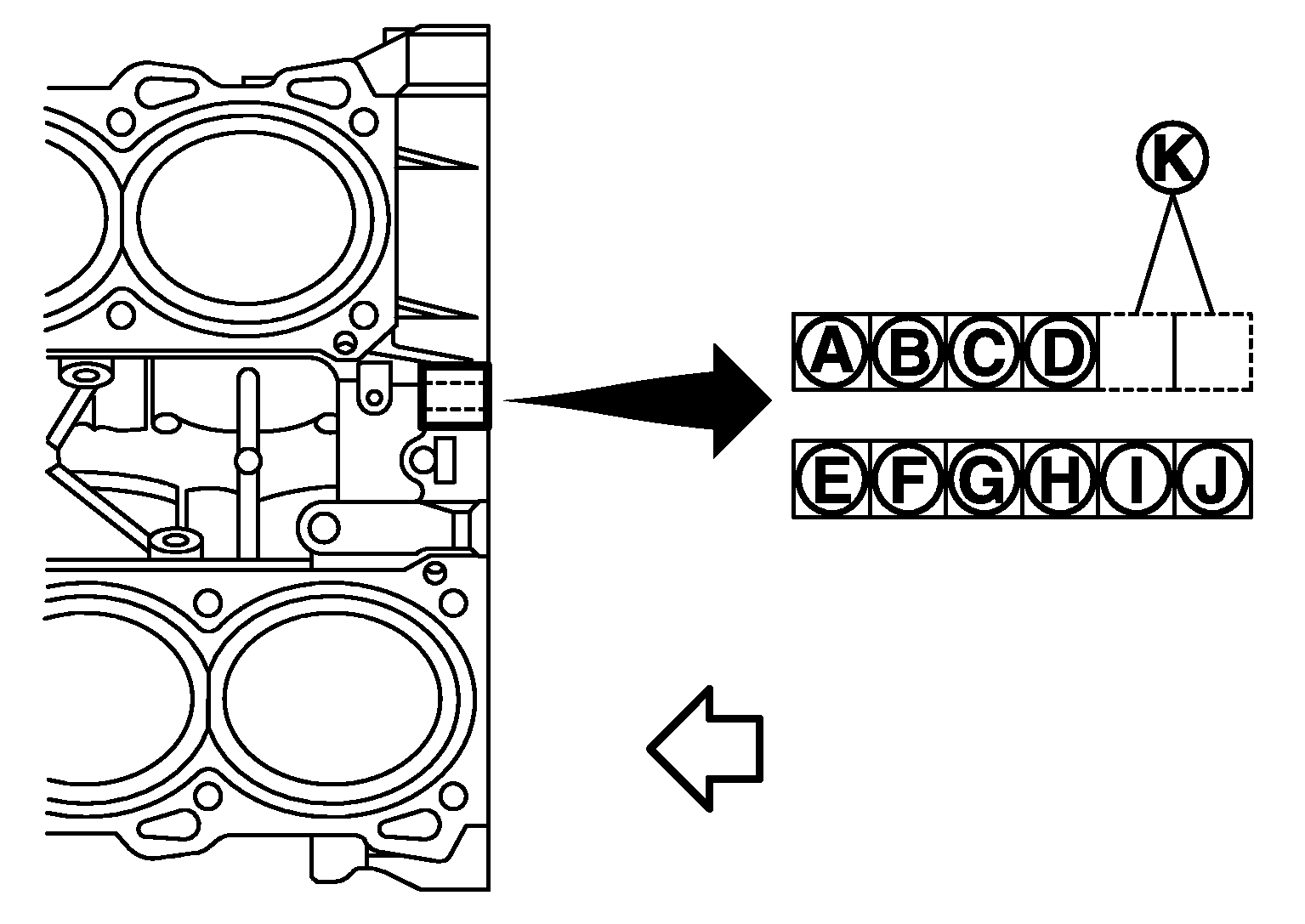

Fig 1: Identifying Cylinder Bore Grade

G05207447

Courtesy of NISSAN NORTH AMERICA, INC.

A	: Bearing housing grade No. 1
B	: Bearing housing grade No. 2
C	: Bearing housing grade No. 3
D	: Bearing housing grade No. 4
E	: Cylinder bore grade No. 1
F	: Cylinder bore grade No. 2
G	: Cylinder bore grade No. 3
H	: Cylinder bore grade No. 4
I	: Cylinder bore grade No. 5
J	: Cylinder bore grade No. 6
K	: Identification
→	: Engine front

NOTE:

Piston is available with piston pin as a set for the service part. (Only "0" grade piston pin is available.)
