Exploded View With Torque Specifications

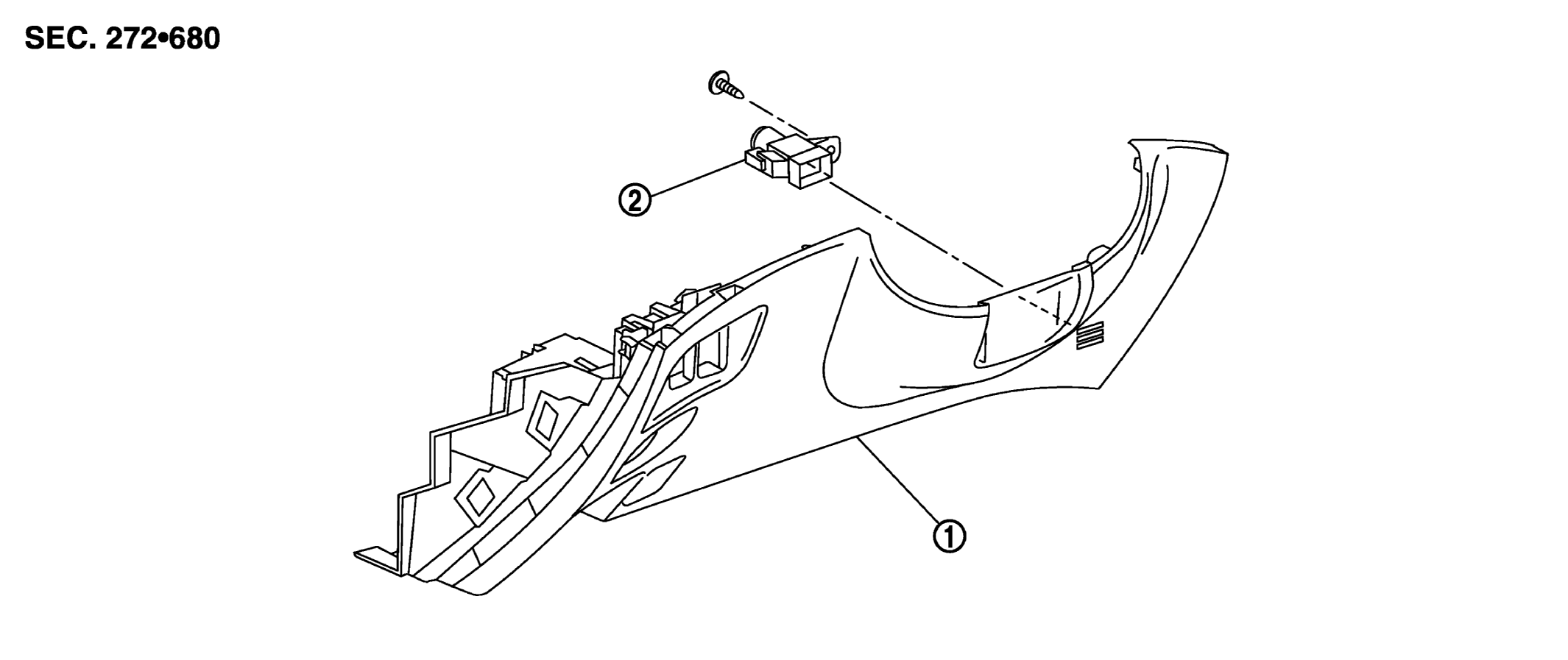

Fig 1: Exploded View Of In-Vehicle Sensor
GNSJSIIA1562ZZ-562Courtesy of NISSAN NORTH AMERICA, INC.
1. Instrument lower panel LH 2. In - vehicle sensor
