Exploded View With Torque Specifications

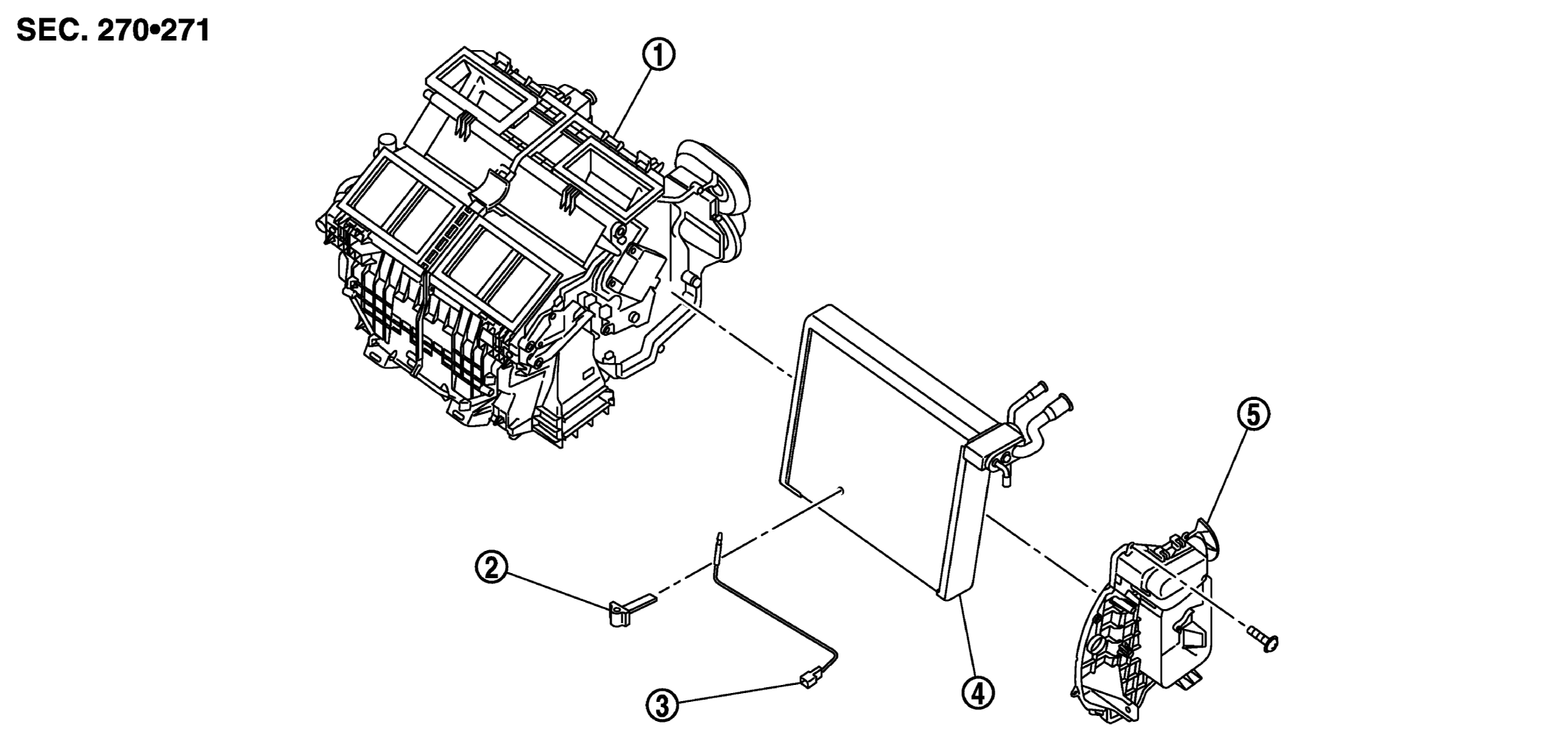

Fig 1: Exploded View Of Intake Sensor
GNSJSIIA1424ZZ-424Courtesy of NISSAN NORTH AMERICA, INC.
1. Heater & cooling unit assembly 2. Intake sensor bracket 3. Intake sensor
4. Evaporator assembly 5. Evaporator cover
