Exploded View With Torque Specifications

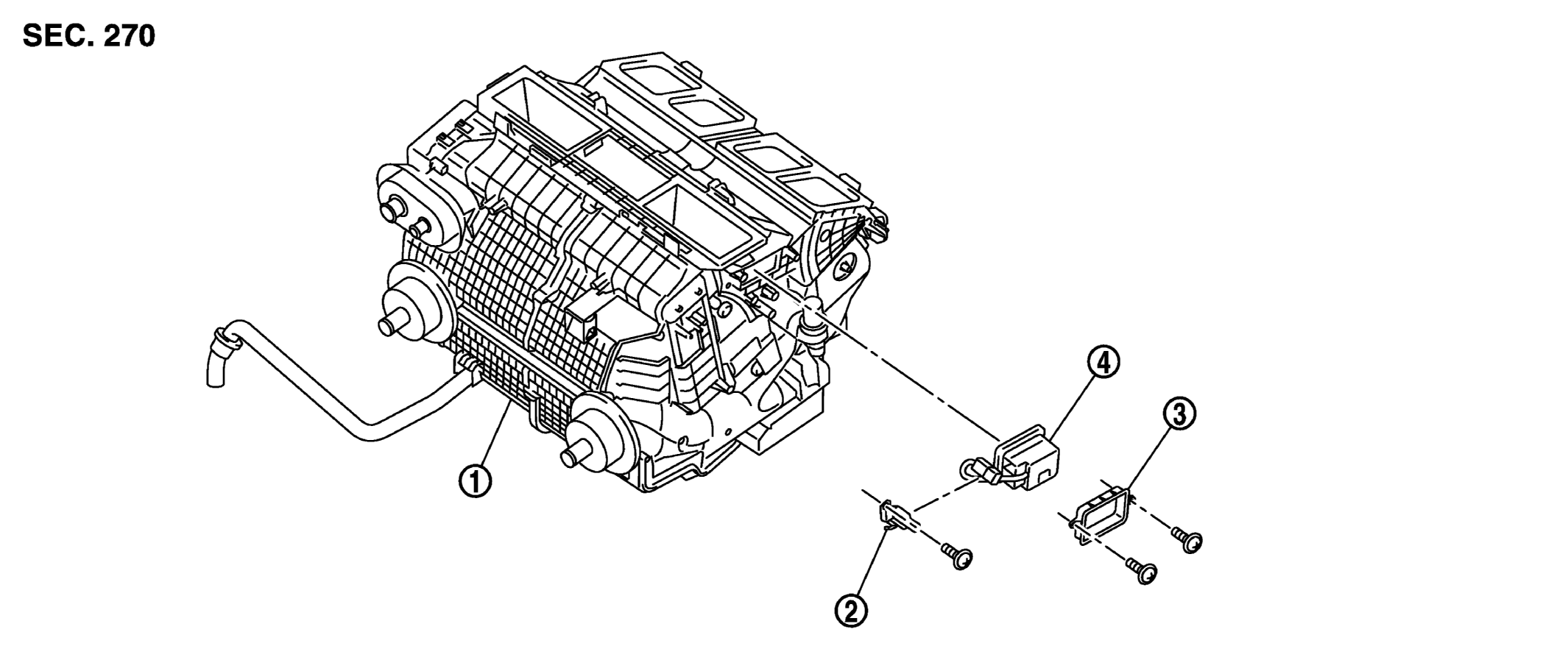

Fig 1: Exploded View Of Ionizer
GNSJSIIA1143ZZ-143Courtesy of NISSAN NORTH AMERICA, INC.
1. Heater & cooling unit assembly 2. Ionizer harness bracket 3. Ionizer bracket
4. Ionizer
