Exploded View With Torque Specifications

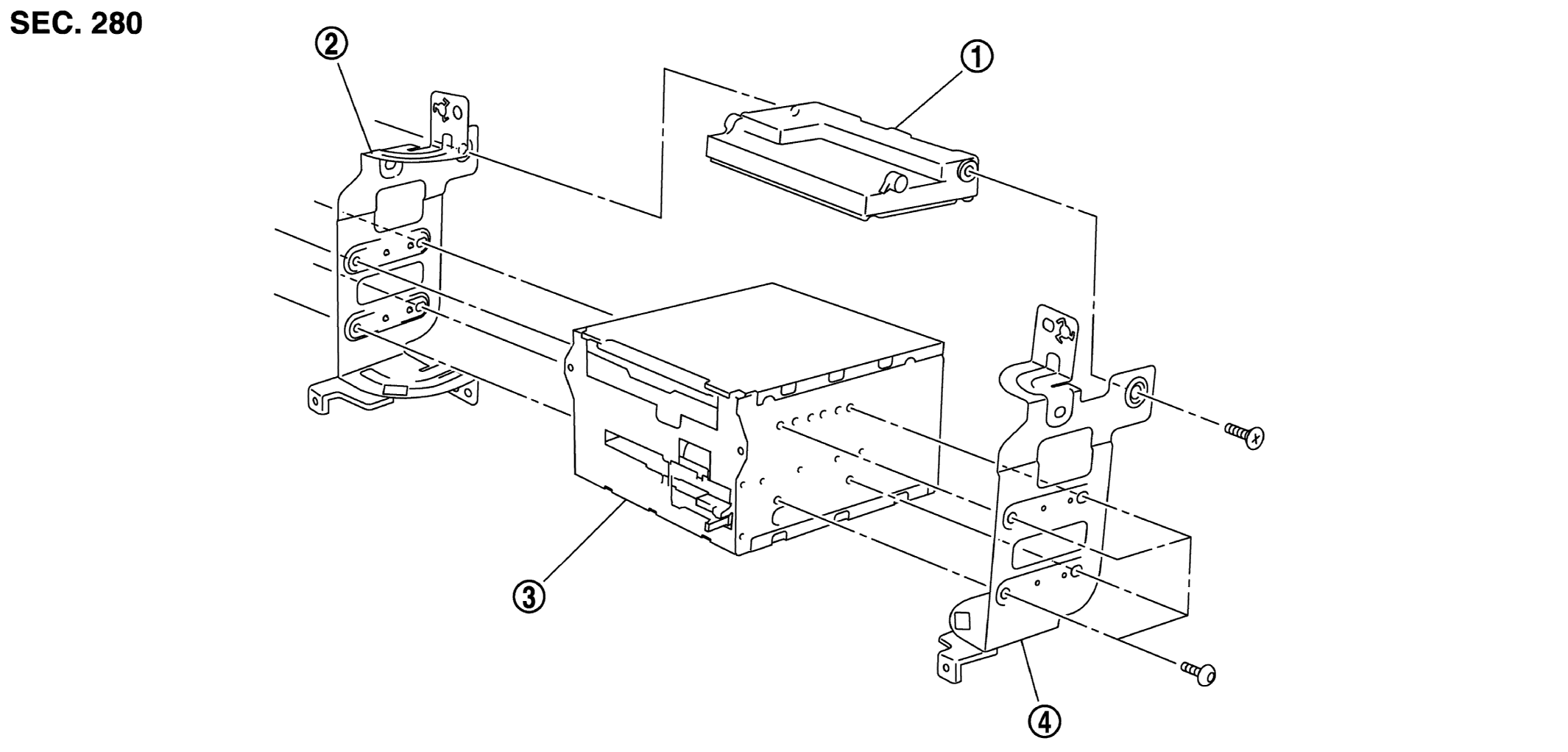

Fig 1: Exploded View Of Unified Meter And A/C Amp.
GNSJPNIA0494ZZ-494Courtesy of NISSAN NORTH AMERICA, INC.
1. Unified meter and A/C amp. 2. Bracket LH 3. AV control unit
4. Bracket RH
