Passenger Compartment

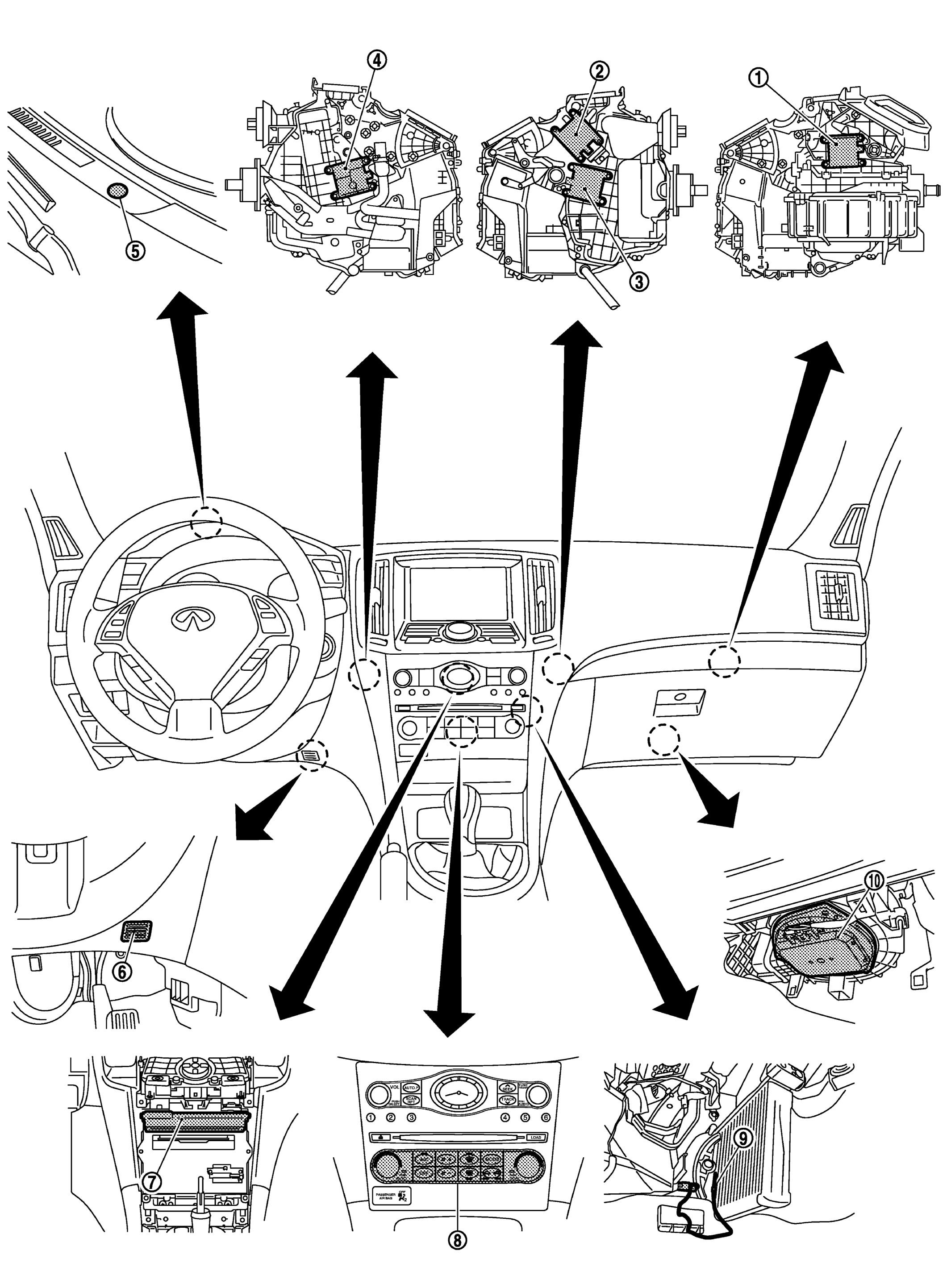

Fig 1: Air Conditioning Control System Component Parts Location (Passenger Compartment)
GNSJSIIA1561ZZ-561Courtesy of NISSAN NORTH AMERICA, INC.
1. Intake door motor 2. Mode door motor 3. Air mix door motor (passenger side)
4. Air mix door motor (driver side) 5. Sunload sensor 6. In - vehicle sensor
7. Unified meter and A/C amp. 8. Preset switch 9. Intake sensor
10. Blower motor
