Exploded View With Torque Specifications: Notes

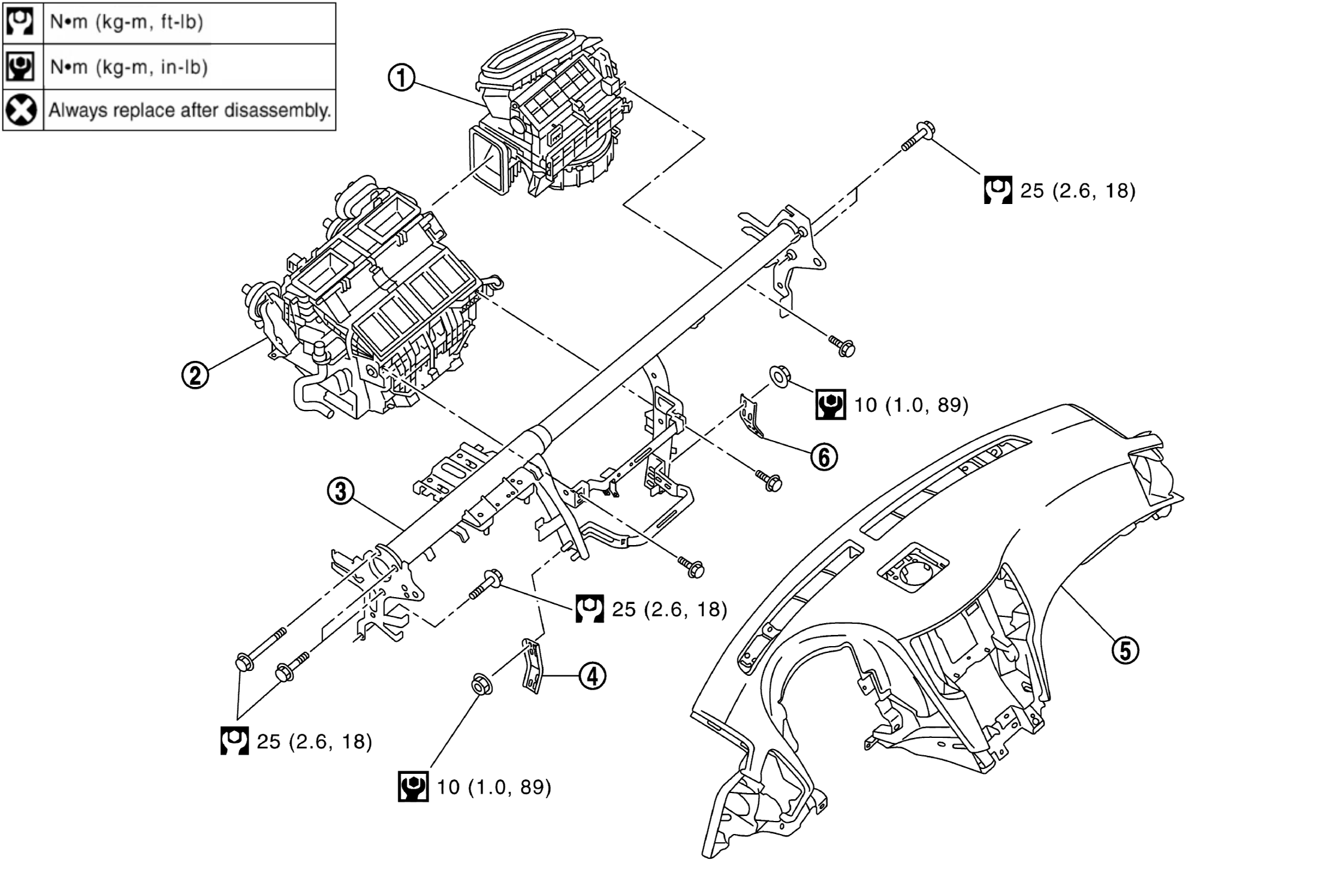

Fig 1: Exploded View Of Blower Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Blower unit	2.	Heater & cooling unit assembly	3.	Steering member
4.	Instrument stay LH	5.	Instrument panel assembly	6.	Instrument stay RH
Torque	: N•m (kg - m, ft - lb)
Torque	: N•m (kg - m, in - lb)
