Retractable Hard Top Control Unit Connector End View (B82)

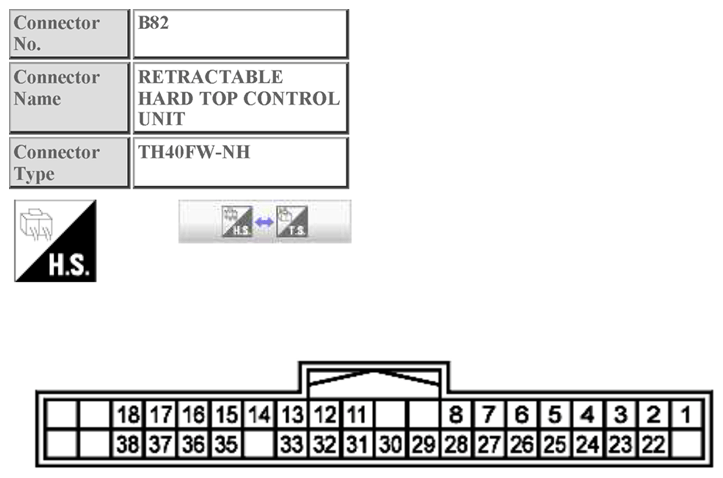

Fig 1: Retractable Hard Top Control Unit Connector End View (B82)
G10428151Courtesy of NISSAN NORTH AMERICA, INC.
