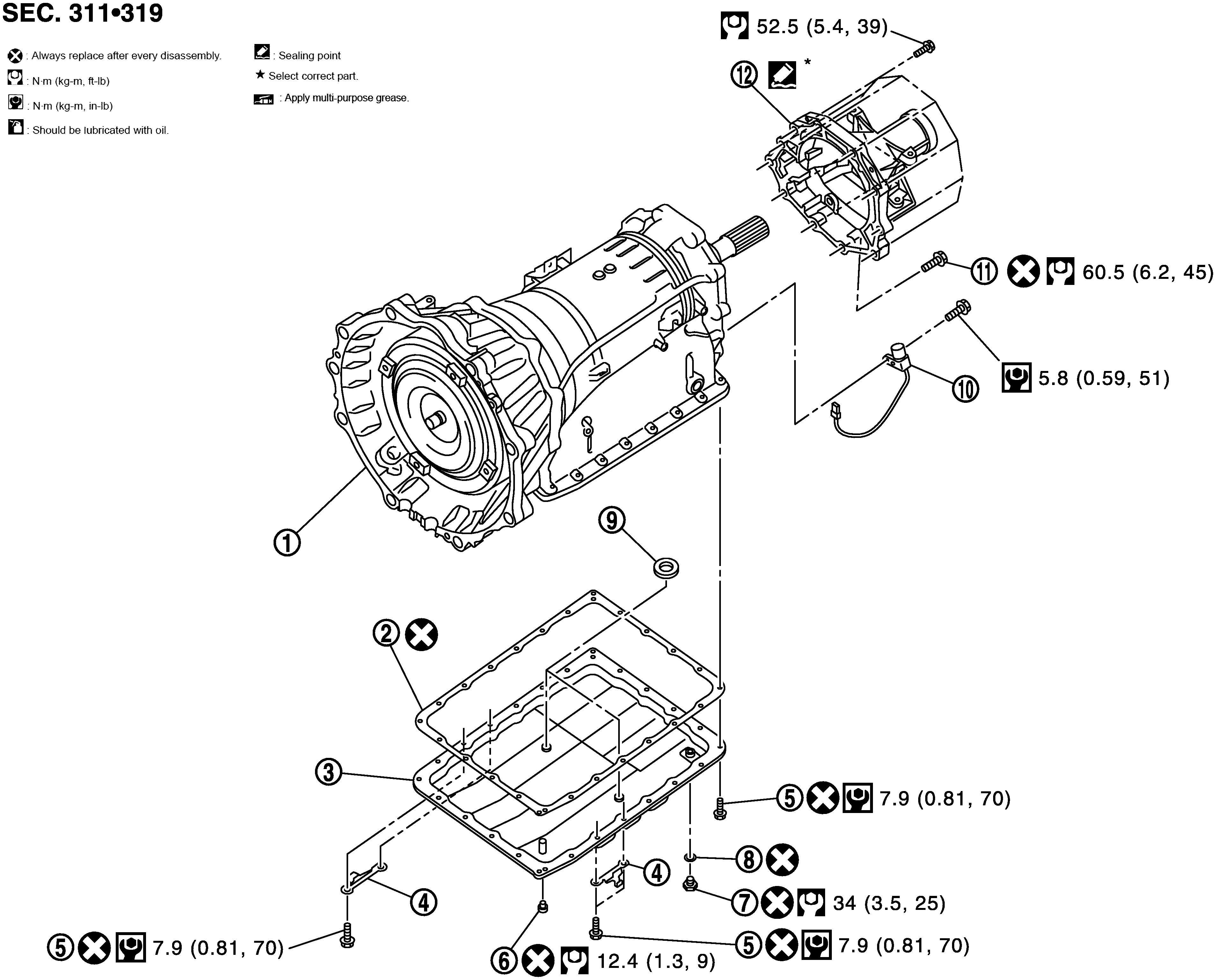

Exploded View With Torque Specifications
| 1. | A/T | 2. | Oil pan gasket | 3. | Oil pan |
| 4. | Overflow plug | 5. | Drain plug | 6. | Drain plug gasket |
| 7. | Oil pan mounting bolt | 8. | Magnet | 9. | Output speed sensor |
| 10. | Rear extension | 11. | Self-sealing bolt | ||
| Sealer*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS . | |||||
| Refer to COMPONENTS for symbols not described on the above. | |||||
