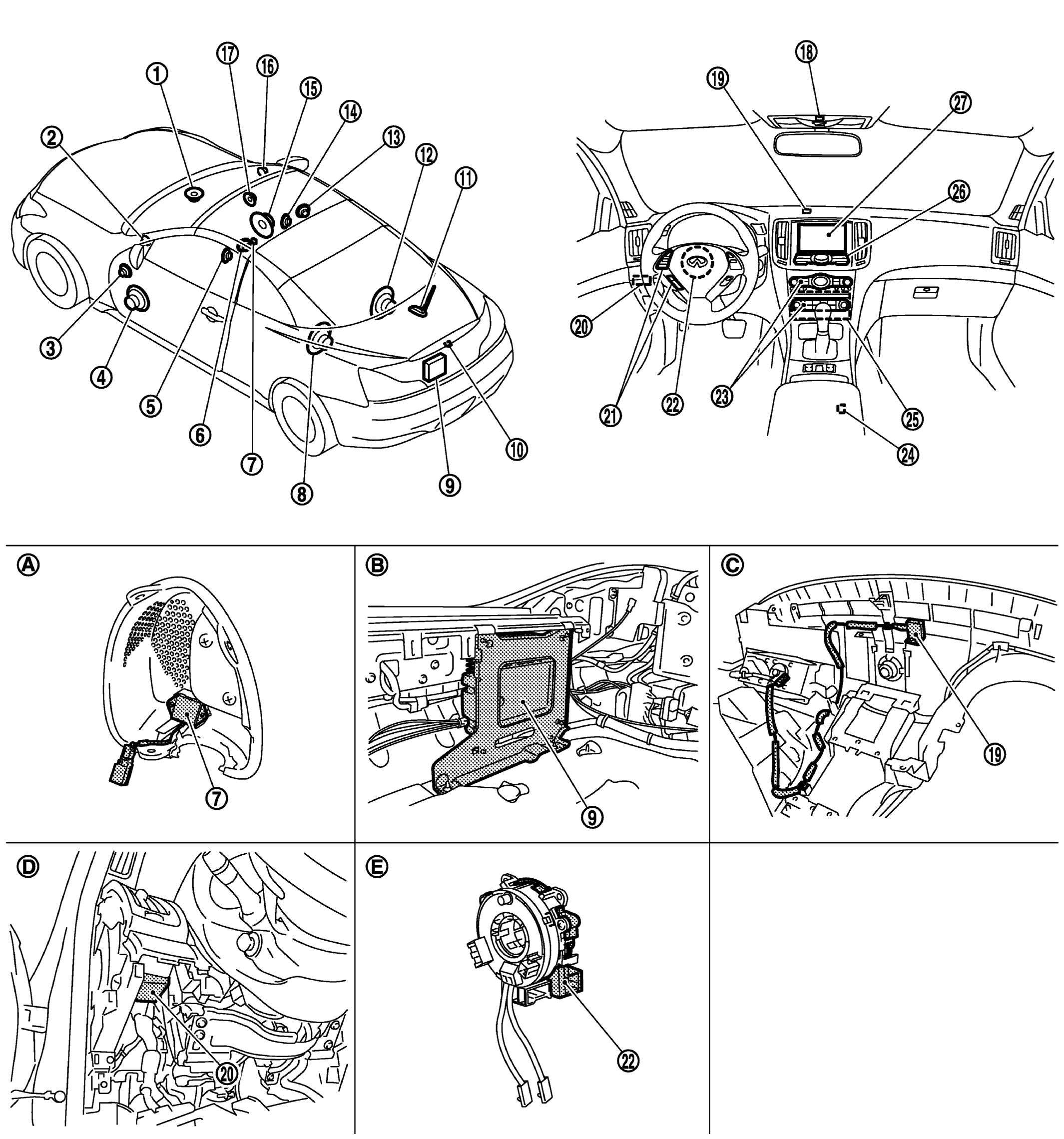

| 1. |
Center speaker |
2. |
Tweeter LH |
3. |
Door squawker LH |
| 4. |
Door woofer LH |
5. |
Driver headrest speaker LH |
6. |
Driver headrest speaker RH |
| 7. |
Microphone (for AudioPilot®
) |
8. |
Rear woofer LH |
9. |
BOSE amp. |
| 10. |
Rear view camera |
11. |
Antenna base |
12. |
Rear woofer RH |
| 13. |
Passenger headrest speaker RH |
14. |
Passenger headrest speaker LH |
15. |
Door woofer RH |
| 16. |
Tweeter RH |
17. |
Door squawker RH |
18. |
Microphone |
| 19. |
GPS antenna |
20. |
Sonar control unit |
21. |
Steering switch |
| 22. |
Steering angle sensor |
23. |
Preset switch |
24. |
USB connector |
| 25. |
AV control unit |
26. |
Multifunction switch |
27. |
Display unit |
| A. |
Inner grille removed condition |
B. |
Rear plate removed condition |
C. |
Instrument panel rear side |
| D. |
Instrument driver lower panel removed condition |
E. |
Spiral cable removed condition |
|
|
