Component Parts Location

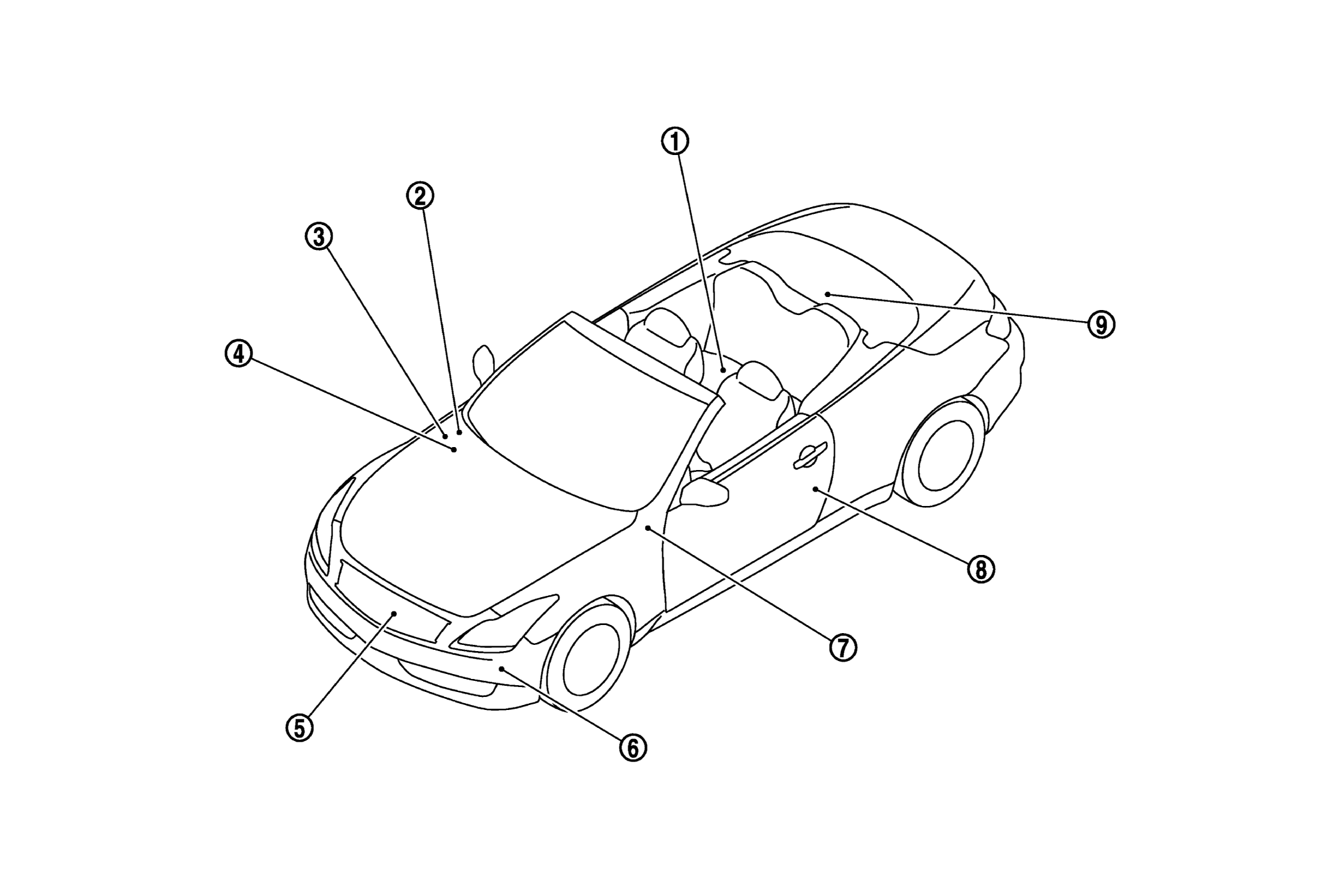

Fig 1: Security Control System Component Parts Location (1 Of 2)
GNSJMKIA4198ZZ-198Courtesy of NISSAN NORTH AMERICA, INC.
1. Inside key antenna (console) M146 2. Remote keyless entry receiver M104 3. IPDM E/R E5, E6, E7, E9,
4. BCM M118, M119, M121, M122, M123 5. Horn (low) E67, E70 6. Horn (high) E61, E62
7. Key slot M22 8. Driver side door switch B16 9. Inside key antenna (trunk room) B49

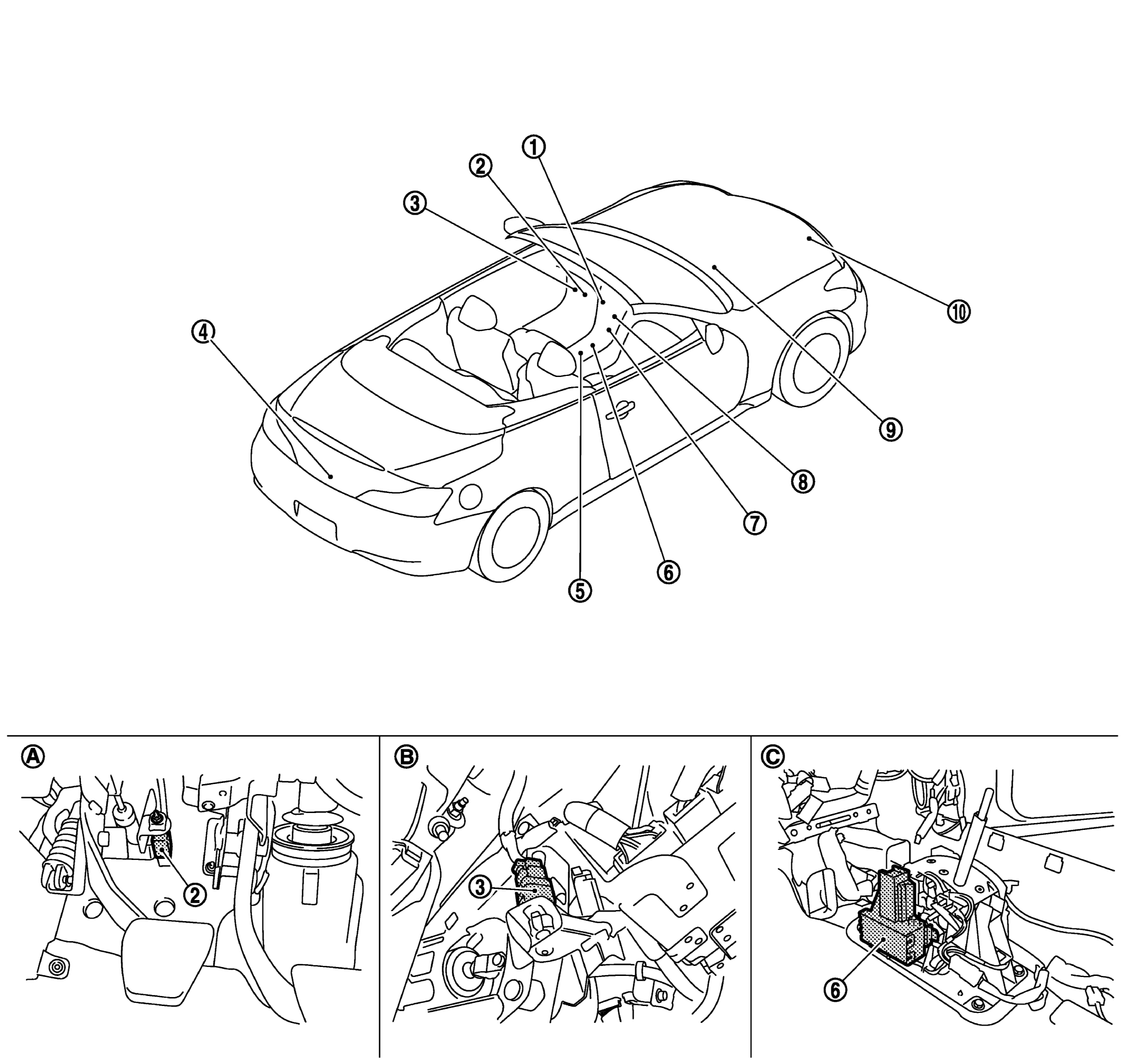

Fig 2: Security Control System Component Parts Location (2 Of 2)
GNSJMKIA4199ZZ-199Courtesy of NISSAN NORTH AMERICA, INC.
1. Push-button ignition switch M50 2. Stop lamp switch E110 3. Clutch interlock switch E111
(M/T models)
4. Trunk room lamp switch B306 5. TCM F157
(A/T models)		 6. A/T shift selector (detention switch) M137 (A/T models)
7. Inside key antenna (instrument center) M131 8. Unified meter and A/C amp. M66, M67 9. ECM M107
A. View with instrument driver lower cover removed. B. View with instrument driver lower cover removed. C. View with center console assembly removed
