Exploded View With Torque Specifications

Without rain sensor

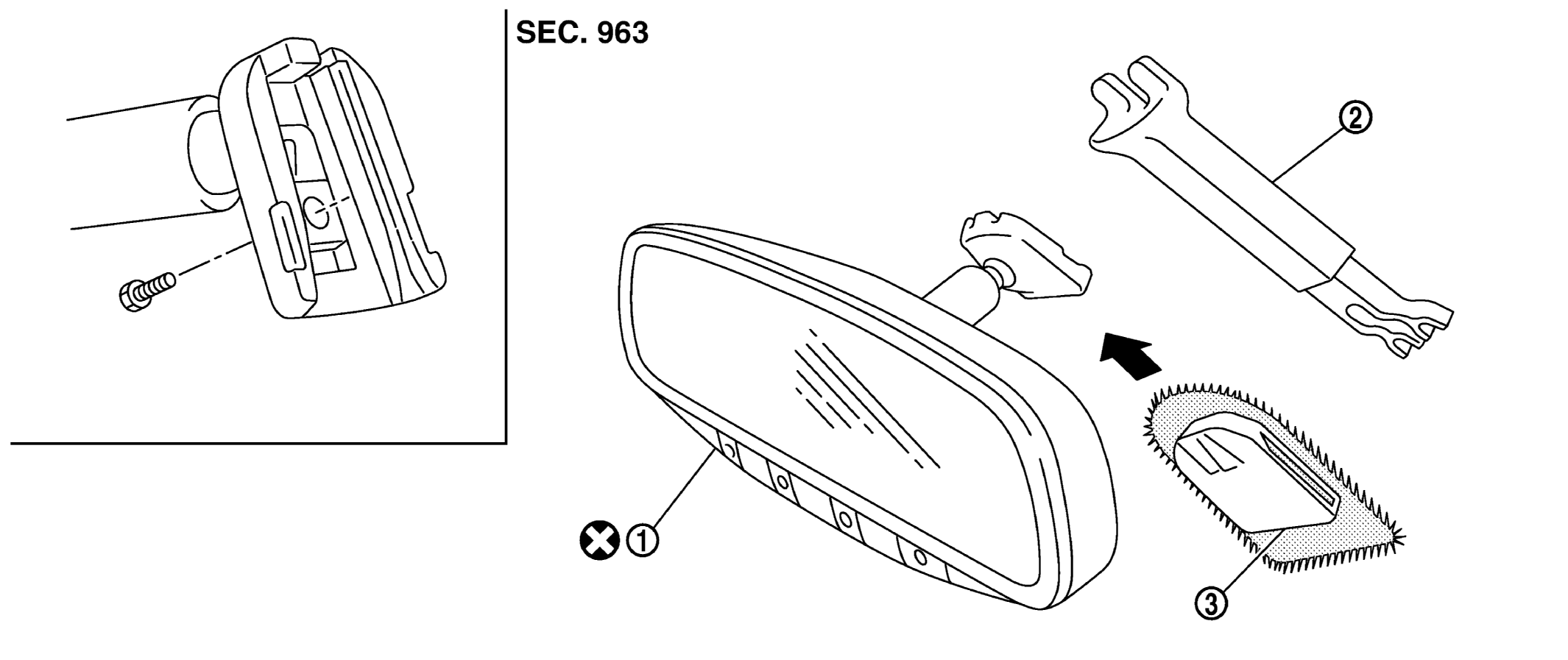

Fig 1: Exploded View Of Inside Mirror (Without Rain Sensor)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Inside mirror	2.	Inside mirror finisher (if equipped)	3.	Mirror base
	: Always replace after every disassembly.

With rain sensor

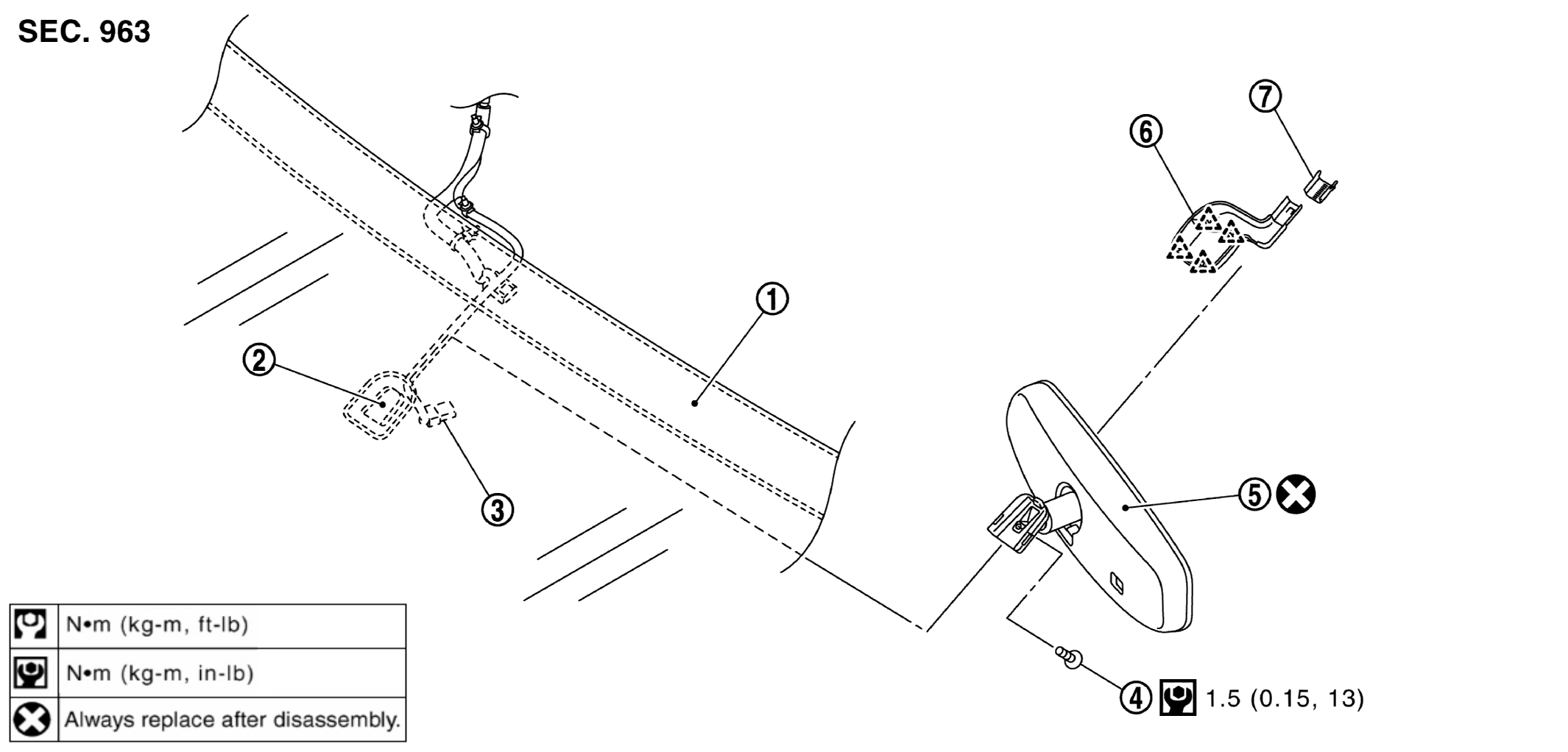

Fig 2: Exploded View Of Inside Mirror With Torque Specifications (With Rain Sensor)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass	2.	Mirror base	3.	Harness connector
4.	TORX bolt	5.	Inside mirror	6.	Inside mirror cover (lower)
7.	Inside mirror cover (upper)
: Pawl
	: Always replace after disassembly
	: Always replace after disassembly
