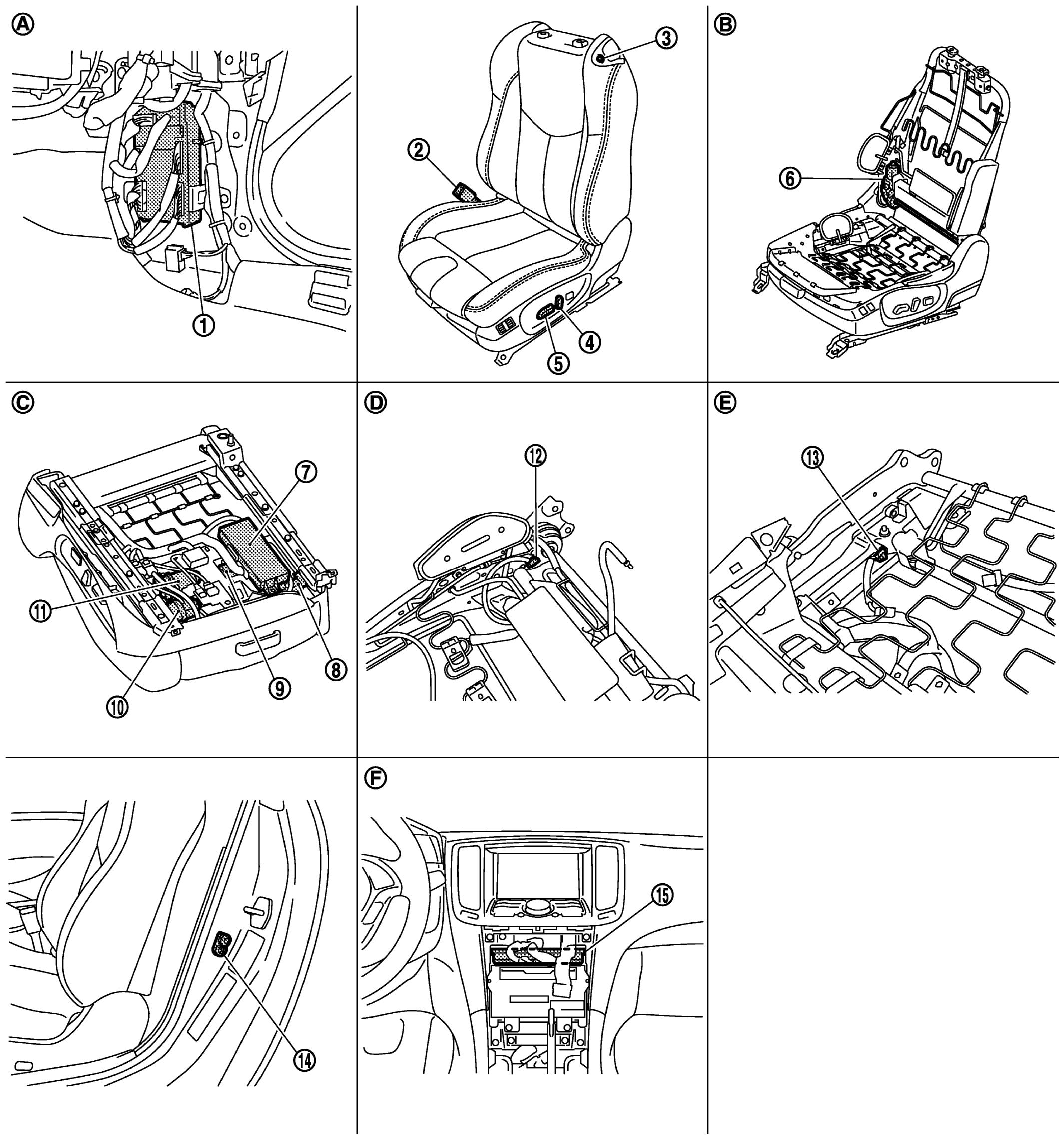

| 1. |
BCM |
2. |
Seat belt buckle switch (driver side) |
3. |
Power walk-in switch |
| 4. |
Reclining switch (power seat switch) |
5. |
Sliding, lifting switch (power seat switch) |
6. |
Reclining motor |
| 7. |
Driver seat control unit |
8. |
Sliding sensor |
9. |
Lifting motor (front) |
| 10. |
Sliding motor |
11. |
Lifting motor (rear) |
12. |
Forward switch |
| 13. |
Sliding limit switch |
14. |
Driver side door switch |
15. |
Unified meter and A/C amp. |
| A. |
Dash side lower (passenger side) |
B. |
View with seat cushion pad and seatback pad removed |
C. |
View with back side of seat cushion |
| D. |
View with seatback pad removed |
E. |
View with seat cushion pad removed |
F. |
Behind cluster lid C |
