Exploded View With Torque Specifications

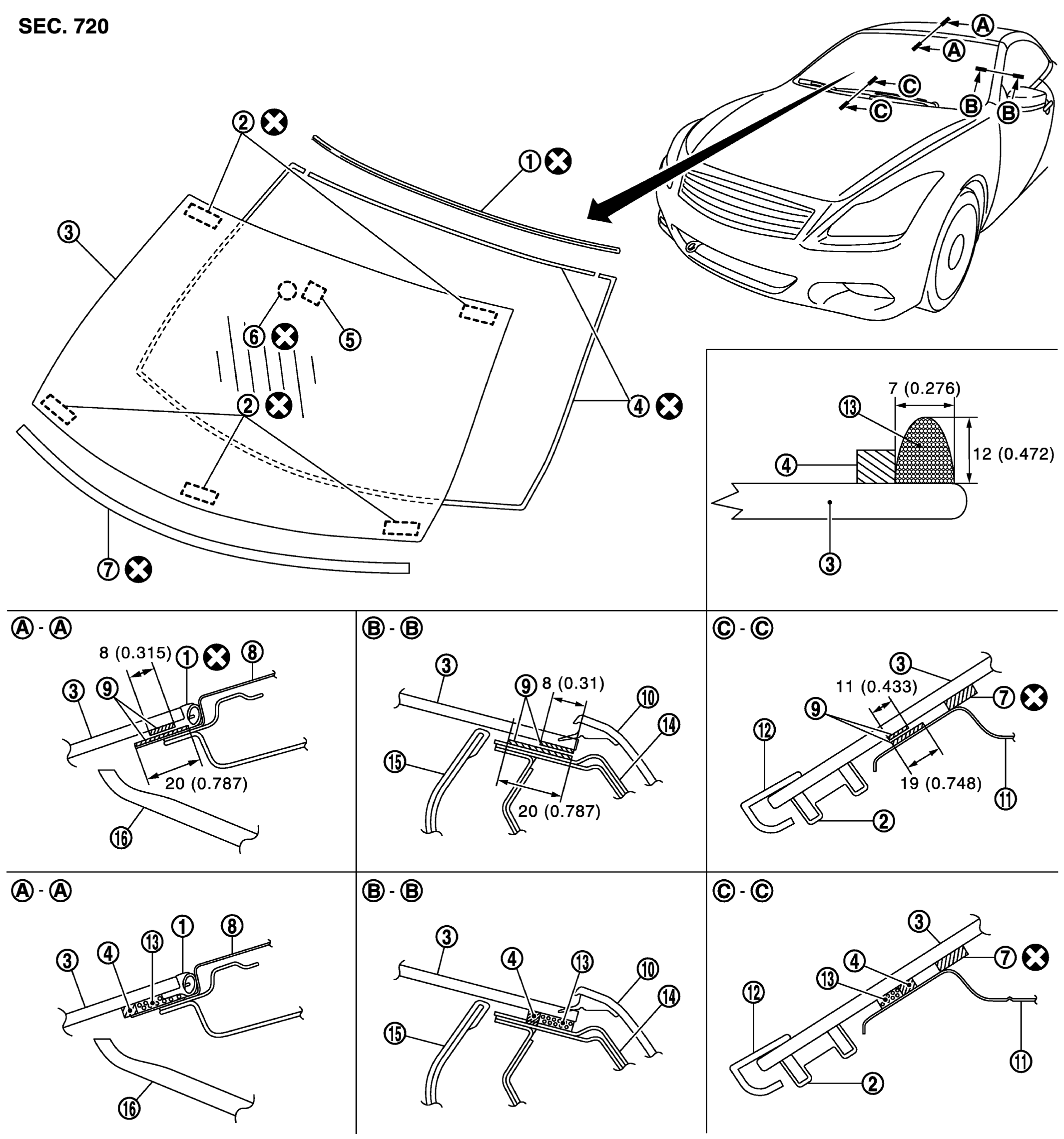

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield molding	2.	Spacer	3.	Windshield glass
4.	Dam rubber (upper, lower)	5.	Mirror base	6.	Rain sensor bracket
7.	Insulator	8.	Roof panel	9.	Primer
10.	Front pillar finisher	11.	Dash upper cross member	12.	Cowl top cover
13.	Adhesive	14.	Front pillar outer upper	15.	Front pillar garnish
16.	Roof front finisher
Unit	: mm (in)
X	: Always replace after every disassembly.
