PDS (Power Distribution System) Connector End Views

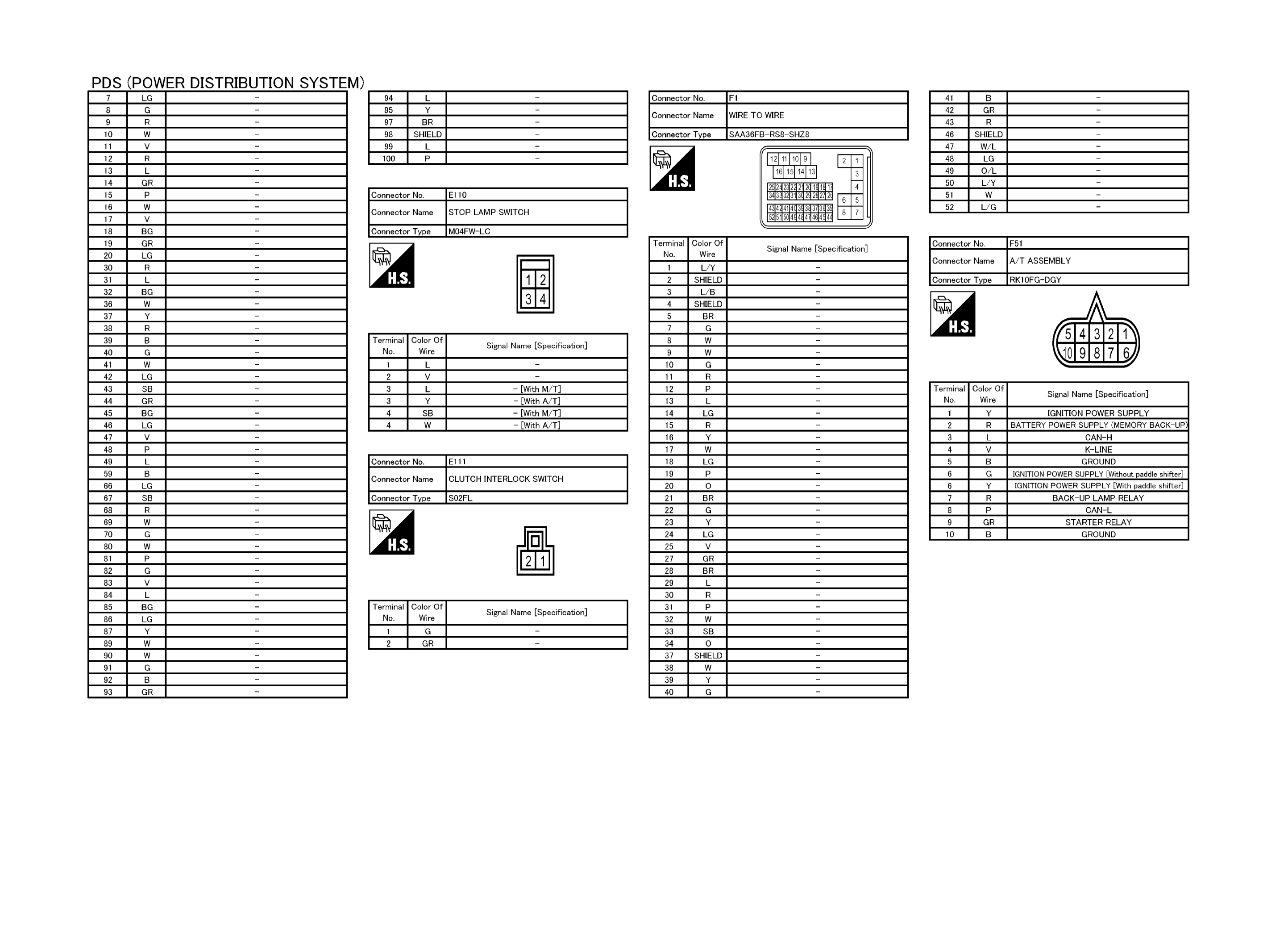

Fig 1: PDS (Power Distribution System) Connector End Views (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

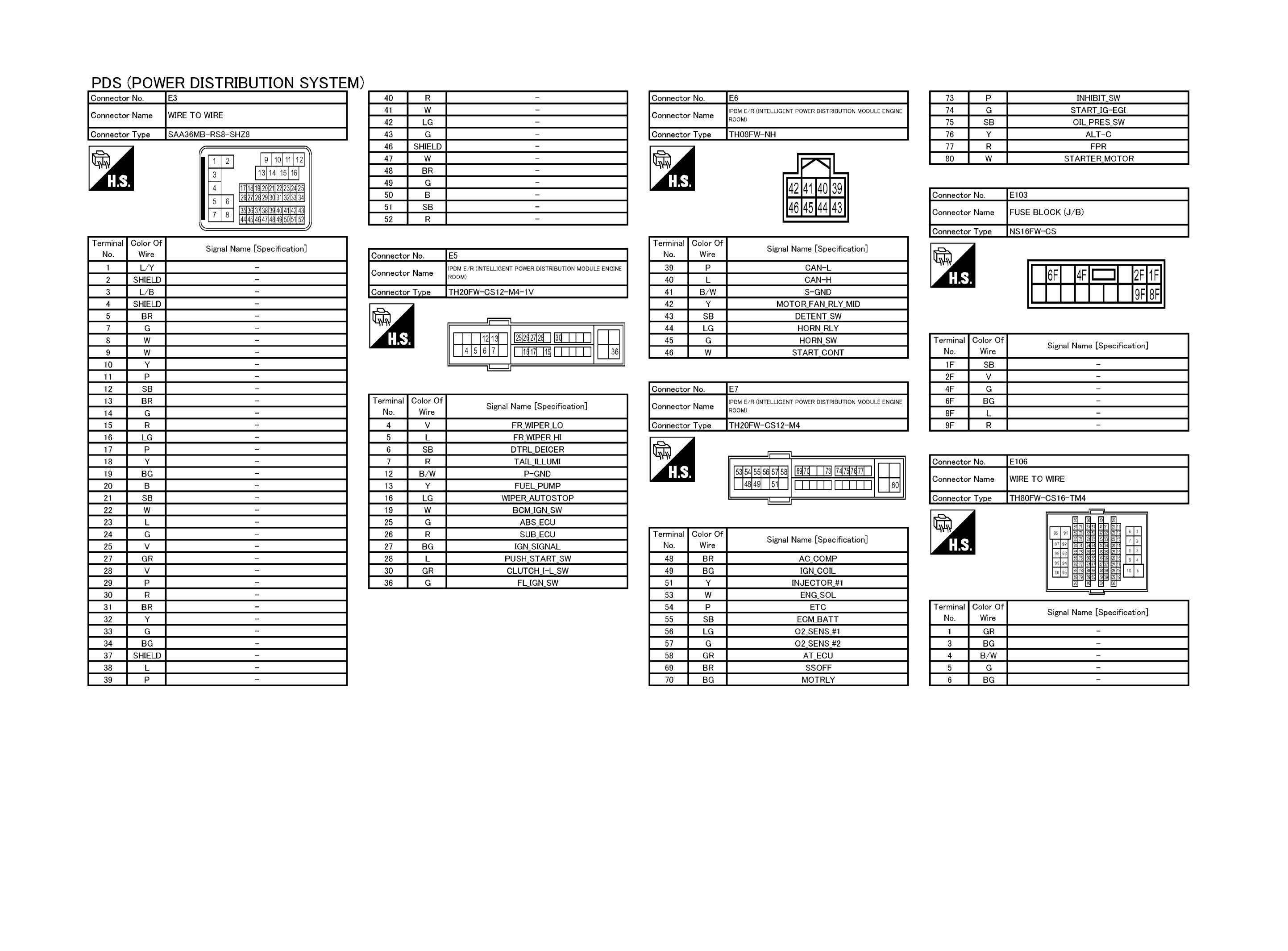

Fig 2: PDS (Power Distribution System) Connector End Views (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

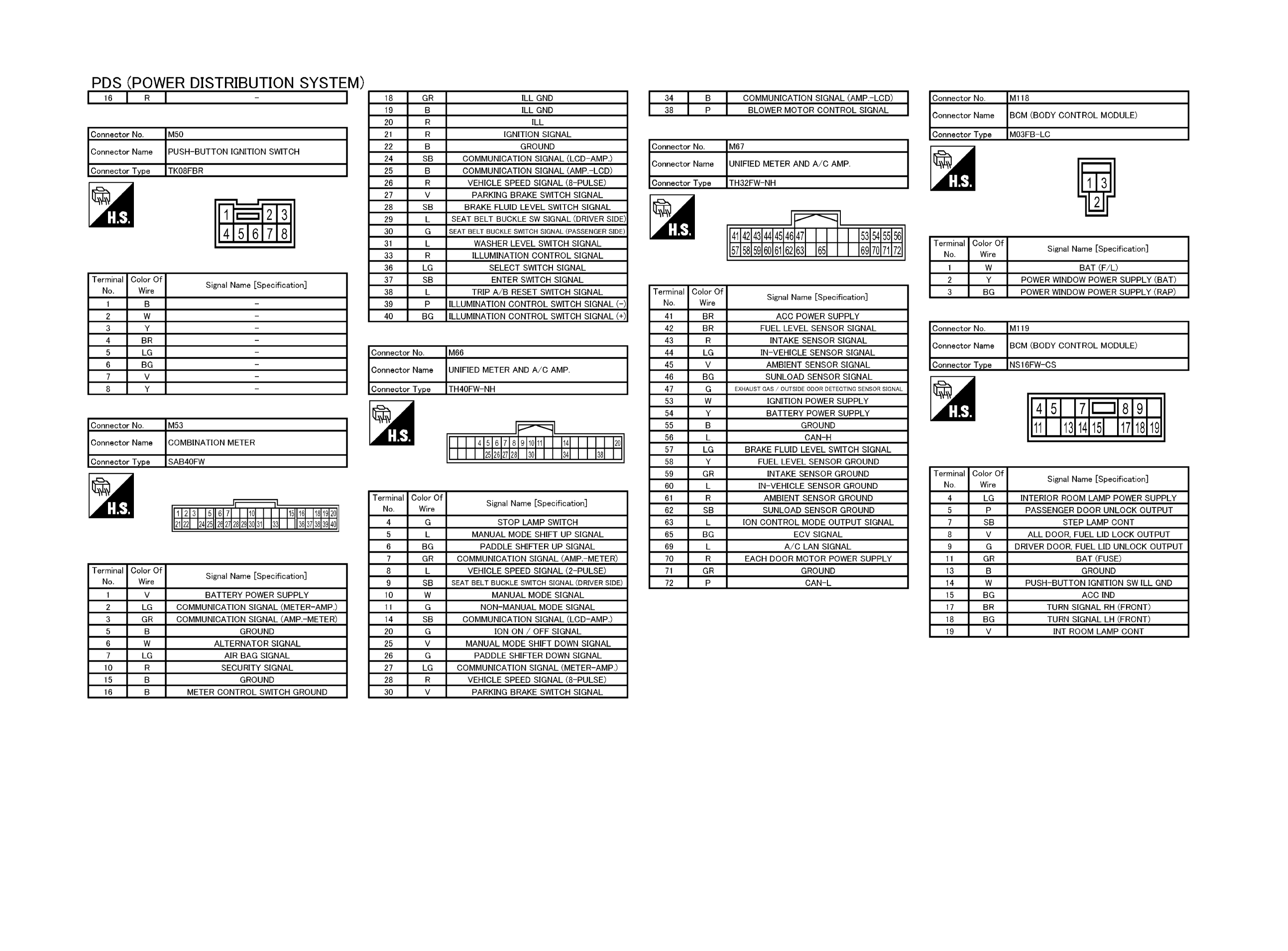

Fig 3: PDS (Power Distribution System) Connector End Views (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

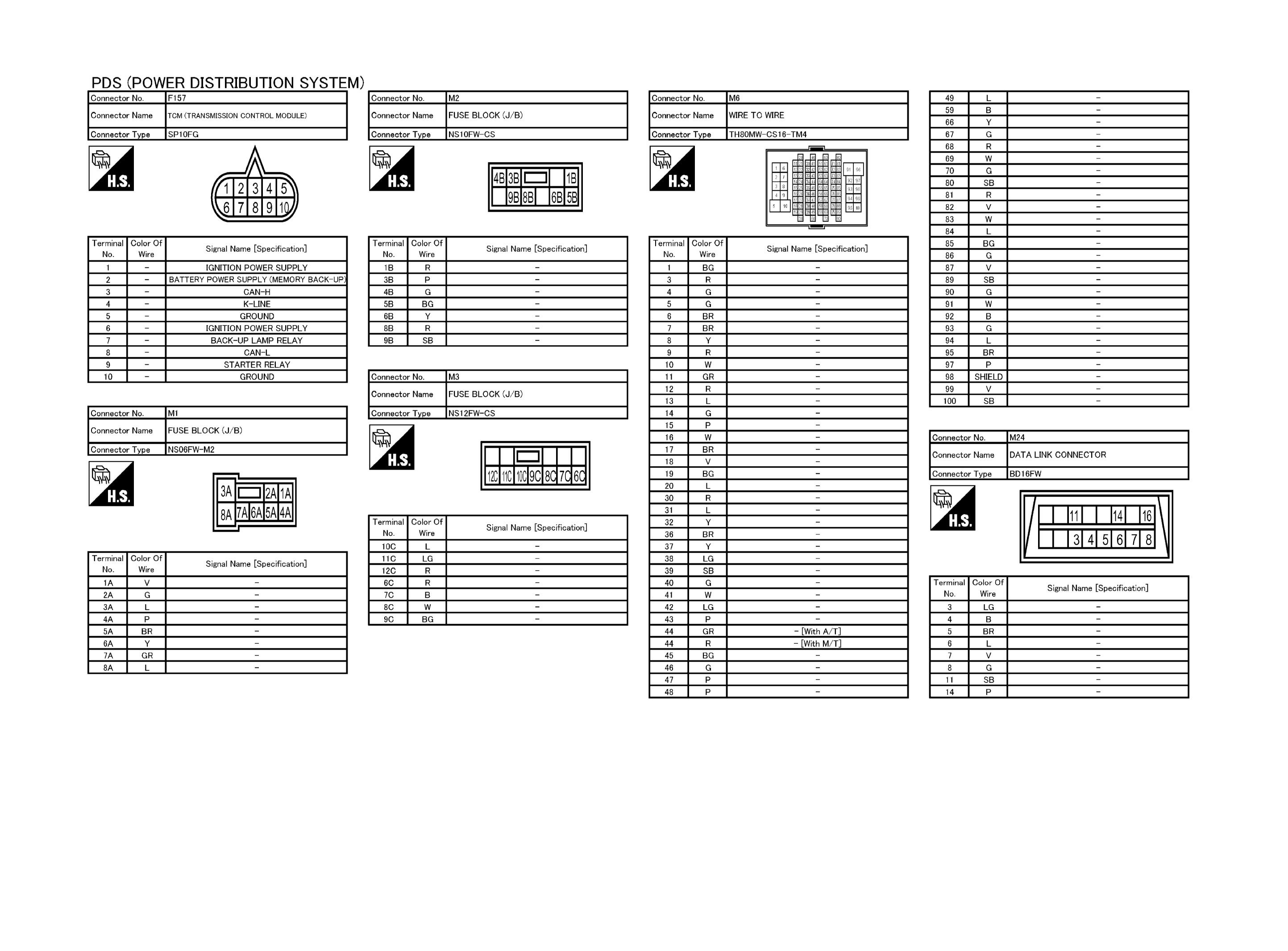

Fig 4: PDS (Power Distribution System) Connector End Views (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

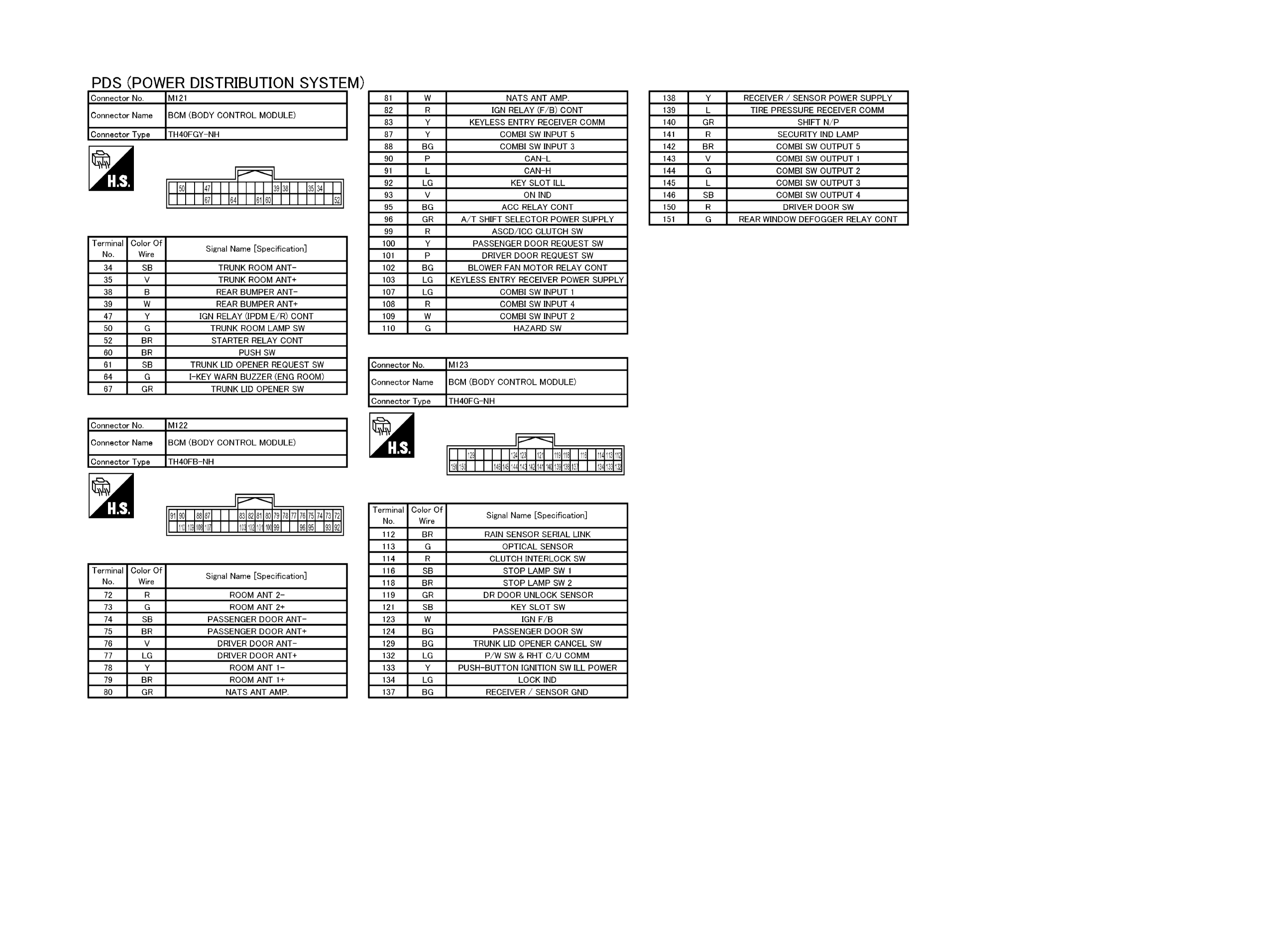

Fig 5: PDS (Power Distribution System) Connector End Views (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
