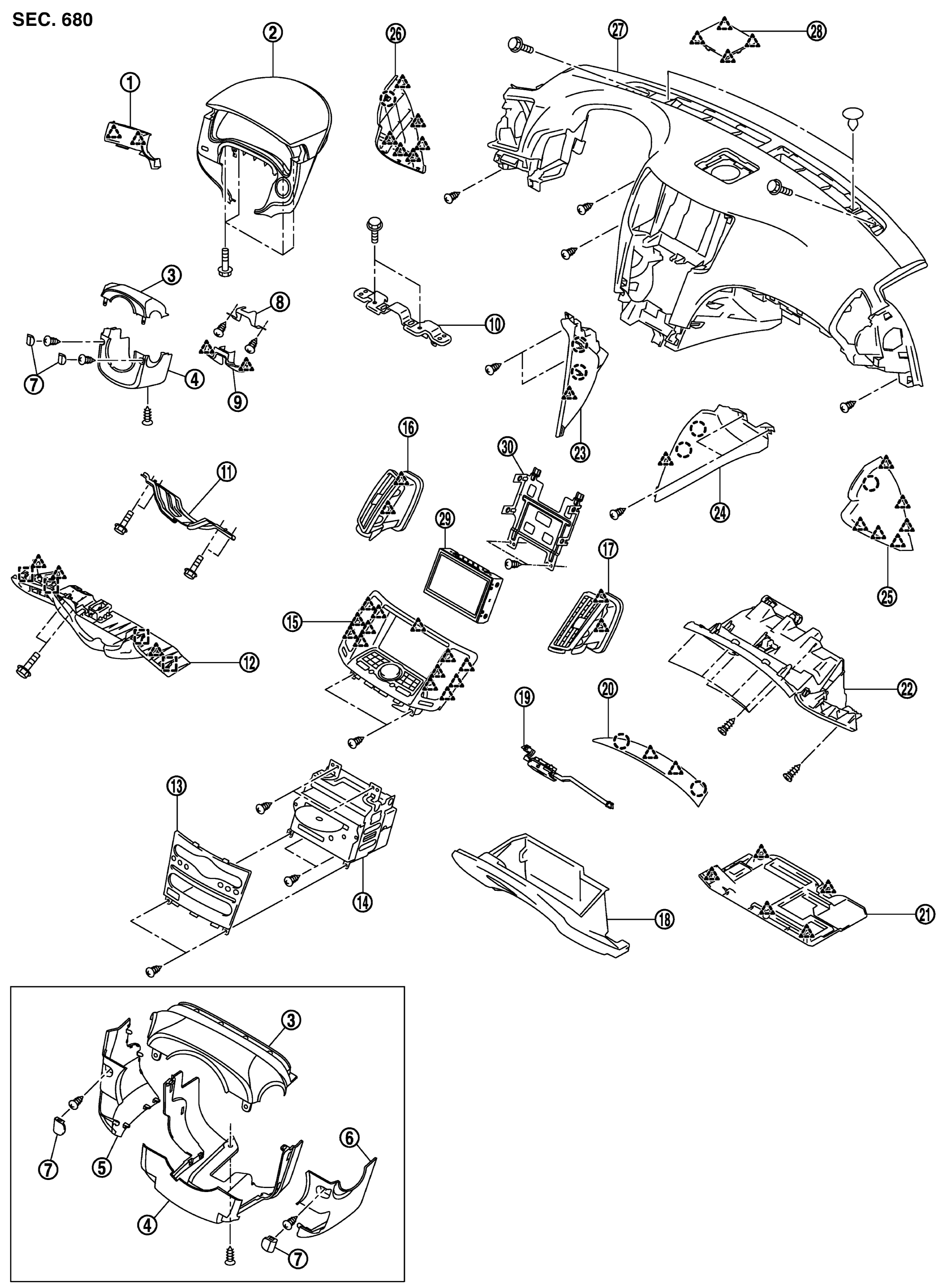

| 1. |
Instrument finisher A |
2. |
Cluster lid A (Combination meter) |
3. |
Steering column cover upper |
| 4. |
Steering column cover lower |
5. |
Steering column side cover LH |
6. |
Steering column side cover RH |
| 7. |
Steering column mask |
8. |
Cluster lid A lower bracket |
9. |
Steering column front lower cover |
| 10. |
Meter bracket |
11. |
Knee protector |
12. |
Instrument lower panel LH |
| 13. |
Cluster lid C |
14. |
AV control unit |
15. |
Cluster lid D |
| 16. |
Center ventilator grille LH |
17. |
Center ventilator grille RH |
18. |
Glove box assembly |
| 19. |
Glove box lock assembly |
20. |
Instrument finisher B |
21. |
Instrument lower cover |
| 22. |
Instrument lower panel RH |
23. |
Instrument side panel LH |
24. |
Instrument side panel RH |
| 25. |
Instrument side finisher RH |
26. |
Instrument side finisher LH |
27. |
Instrument panel assembly |
| 28. |
Center speaker grille |
29. |
Display unit |
30. |
Display unit bracket |
| ◦ |
: Clip |
|
|
|
|
| Δ |
: Pawl |
|
|
|
|
| Δ |
: Metal clip |
|
|
|
|
