Exploded View With Torque Specifications

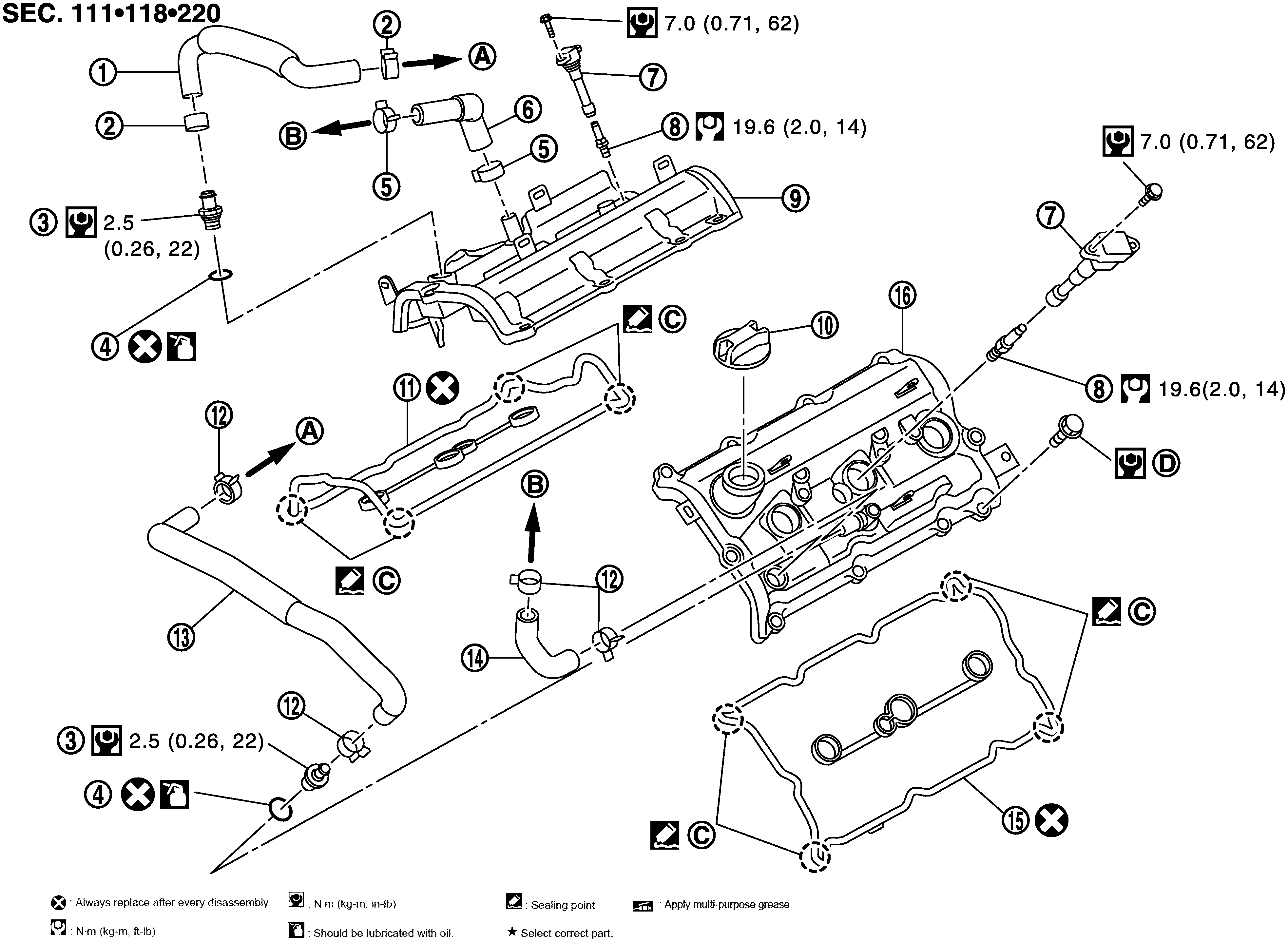

Fig 1: Exploded View Of Valve Covers With Torque Specifications
GNSJPBIA2803GB-803Courtesy of NISSAN NORTH AMERICA, INC.
1. PCV hose 2. Clamp 3. PCV valve
4. O - ring 5. Clamp 6. PCV hose
7. Ignition coil 8. Spark plug 9. Rocker cover (bank 1)
10. Oil filler cap 11. Rocker cover gasket (bank 1) 12. Clamp
13. PCV hose 14. PCV hose 15. Rocker cover gasket (bank 2)
16. Rocker cover (bank 2)
A. To intake manifold collector B. To air duct C. VVEL ladder assembly side
D. Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION
Refer to COMPONENTS for symbols in the figure.
