Exploded View With Torque Specifications

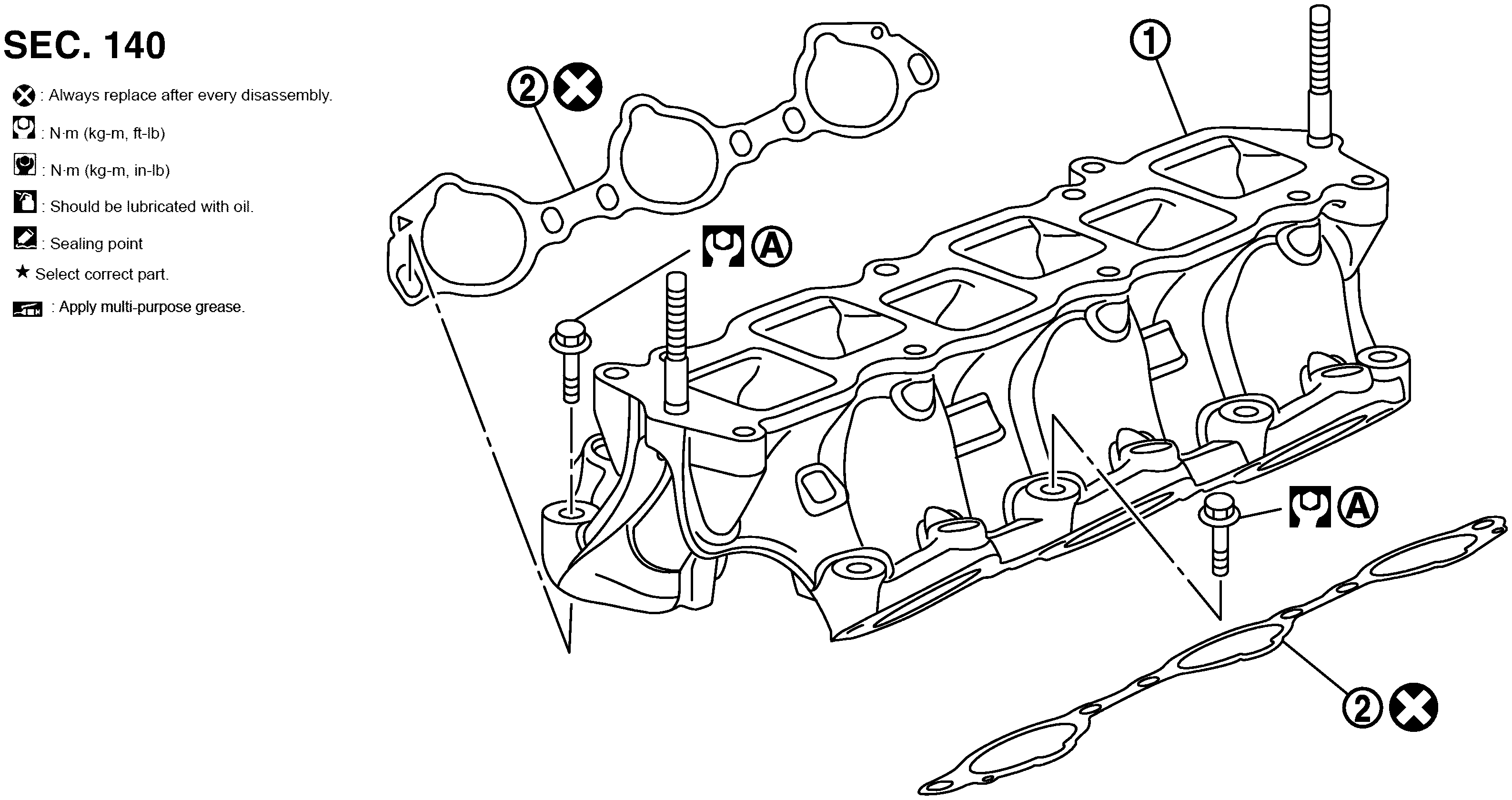

Fig 1: Exploded View Of Intake Manifold
GNSJPBIA1350GB-350Courtesy of NISSAN NORTH AMERICA, INC.
1. Intake manifold 2. Gasket
A. Comply with the installation procedure when tightening. Refer to REMOVAL AND INSTALLATION
Refer to COMPONENTS for symbols in the figure.
