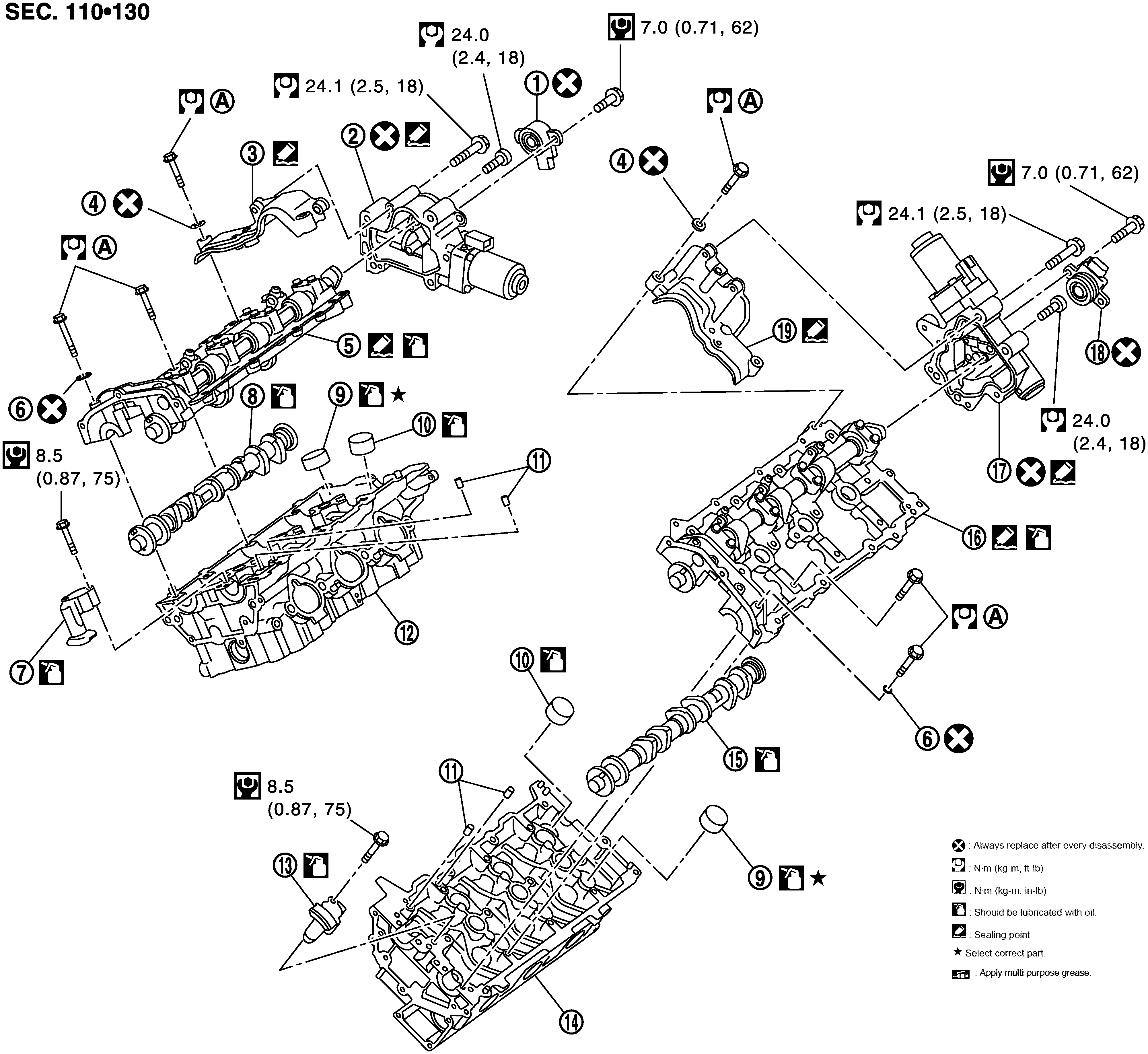

Exploded View With Torque Specifications
| 1. | VVEL control shaft position sensor (bank 1) | 2. | VVEL actuator sub assembly (bank 1) | 3. | Actuator bracket (rear) (bank 1) |
| 4. | Washer | 5. | VVEL ladder assembly (bank 1) | 6. | Washer |
| 7. | Timing chain tensioner (secondary) (bank 1) | 8. | Camshaft (EXH) (bank 1) | 9. | Valve lifter (EXH) |
| 10. | Valve lifter (INT) | 11. | Oil filter | 12. | Cylinder head (bank 1) |
| 13. | Timing chain tensioner (secondary) (bank 2) | 14. | Cylinder head (bank 2) | 15. | Camshaft (EXH) (bank 2) |
| 16. | VVEL ladder assembly (bank 2) | 17. | VVEL actuator sub assembly (bank 2) | 18. | VVEL control shaft position sensor (bank 2) |
| 19. | Actuator bracket (rear) (bank 2) | ||||
| A. | Comply with the installation procedure when tightening. Refer to DISASSEMBLY AND ASSEMBLY | ||||
| Refer to COMPONENTS for symbols in the figure. | |||||
CAUTION:
A high degree of precision is required for a valve on the intake side. Never remove the valve related parts unless necessary.
NOTE:
- As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly and cylinder head assembly.
- VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.

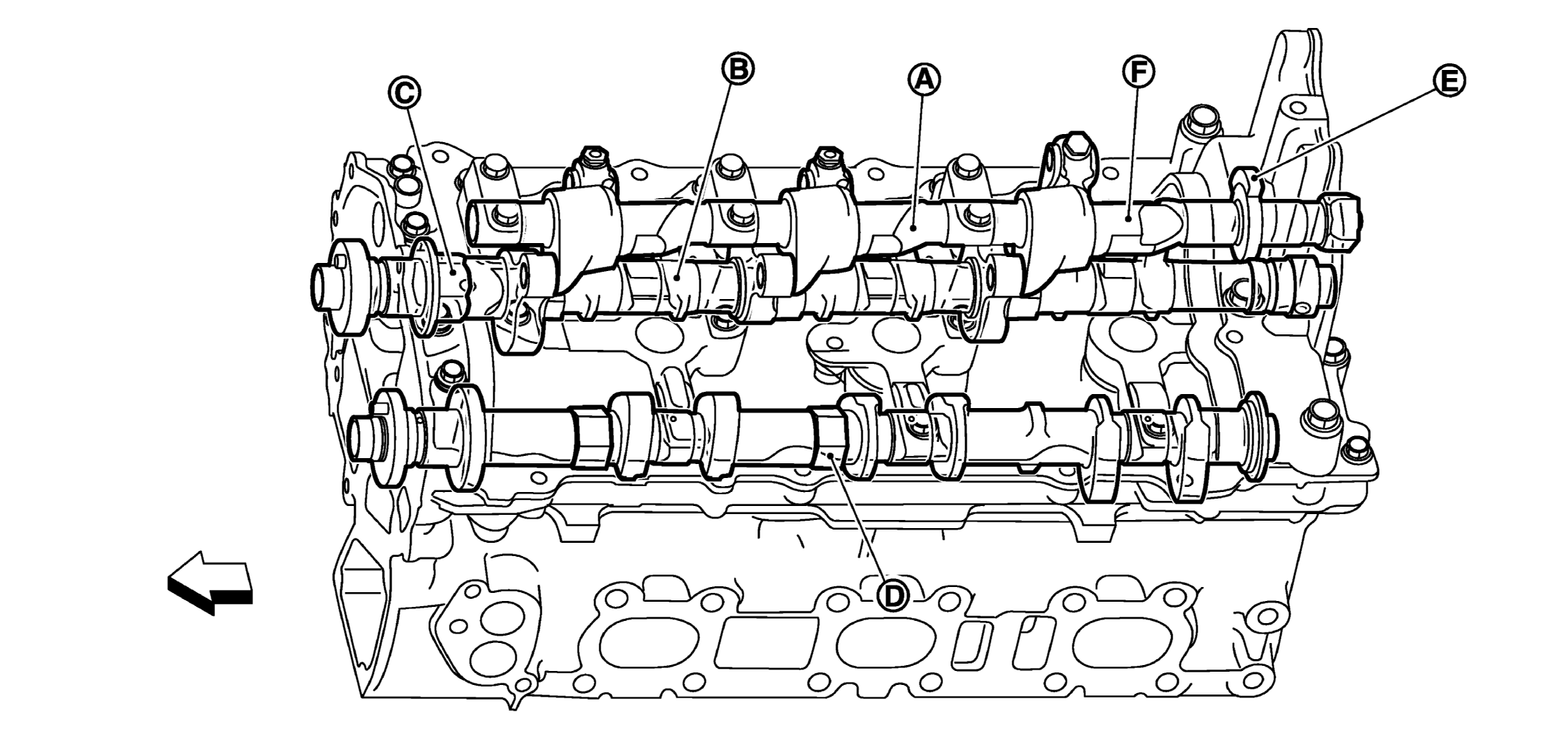

VVEL Ladder Assembly and Cylinder Head Assembly Features
| A. | Control shaft | B. | Drive shaft | C. | Hexagonal part of drive shaft (for holding) |
| D. | Hexagonal part of camshaft (EXH) (for holding) |
E. | Stopper of control shaft | F. | Two flat area of control shaft (for holding) |
| → | : Engine front |
NOTE:
The figure shows an example of bank 2.
