Disassembly And Assembly: Disassembly

Remove the following parts:
- Oil pans (upper and lower): Refer to EXPLODED VIEW and EXPLODED VIEW .
- Front and rear timing chain case: Refer to EXPLODED VIEW and EXPLODED VIEW .
- Cylinder head: Refer to EXPLODED VIEW .
Remove knock sensor.
CAUTION:
Carefully handle sensor avoiding shocks.
Remove baffle plate from lower cylinder block.
Remove piston and connecting rod assembly with the following procedure:
- Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to INSPECTION .
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
1. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
2. Remove connecting rod bearing cap.
3. Using a hammer handle or similar tool, push piston and connecting rod assembly out to the cylinder head side.

  Fig 1: Pushing Piston And Connecting Rod Assembly
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:
  Be careful not to damage the cylinder wall and crankshaft pin, resulting from an interference of the connecting rod big end.
Remove connecting rod bearings from connecting rod and connecting rod bearing cap.
CAUTION:
- Be careful not to drop connecting rod bearing, and to scratch the surface.
- Identify installation positions, and store them without mixing them up.
Remove piston rings from piston.
- Before removing piston rings, check the piston ring side clearance. Refer to INSPECTION .
- Use a piston ring expander (commercial service tool) (A).

  Fig 2: Removing Piston Rings From Piston Using Piston Ring Expander
  Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- When removing piston rings, be careful not to damage piston.
- Be careful not to damage piston rings by expanding them excessively.
Remove piston from connecting rod as follows:

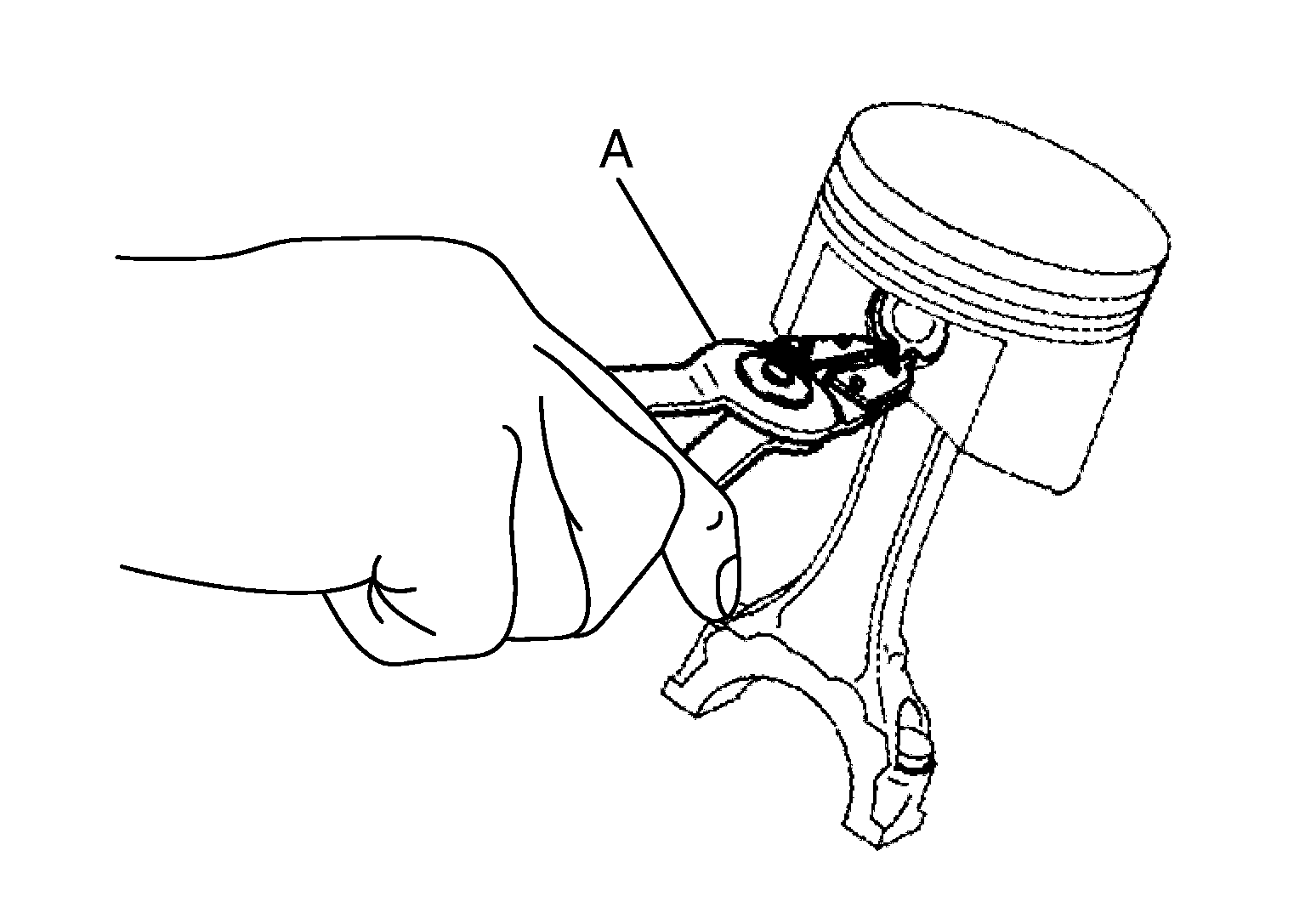

1. Using snap ring pliers (A), remove snap rings.

  Fig 3: Removing Snap Rings Using Snap Ring Plier
  Courtesy of NISSAN NORTH AMERICA, INC.

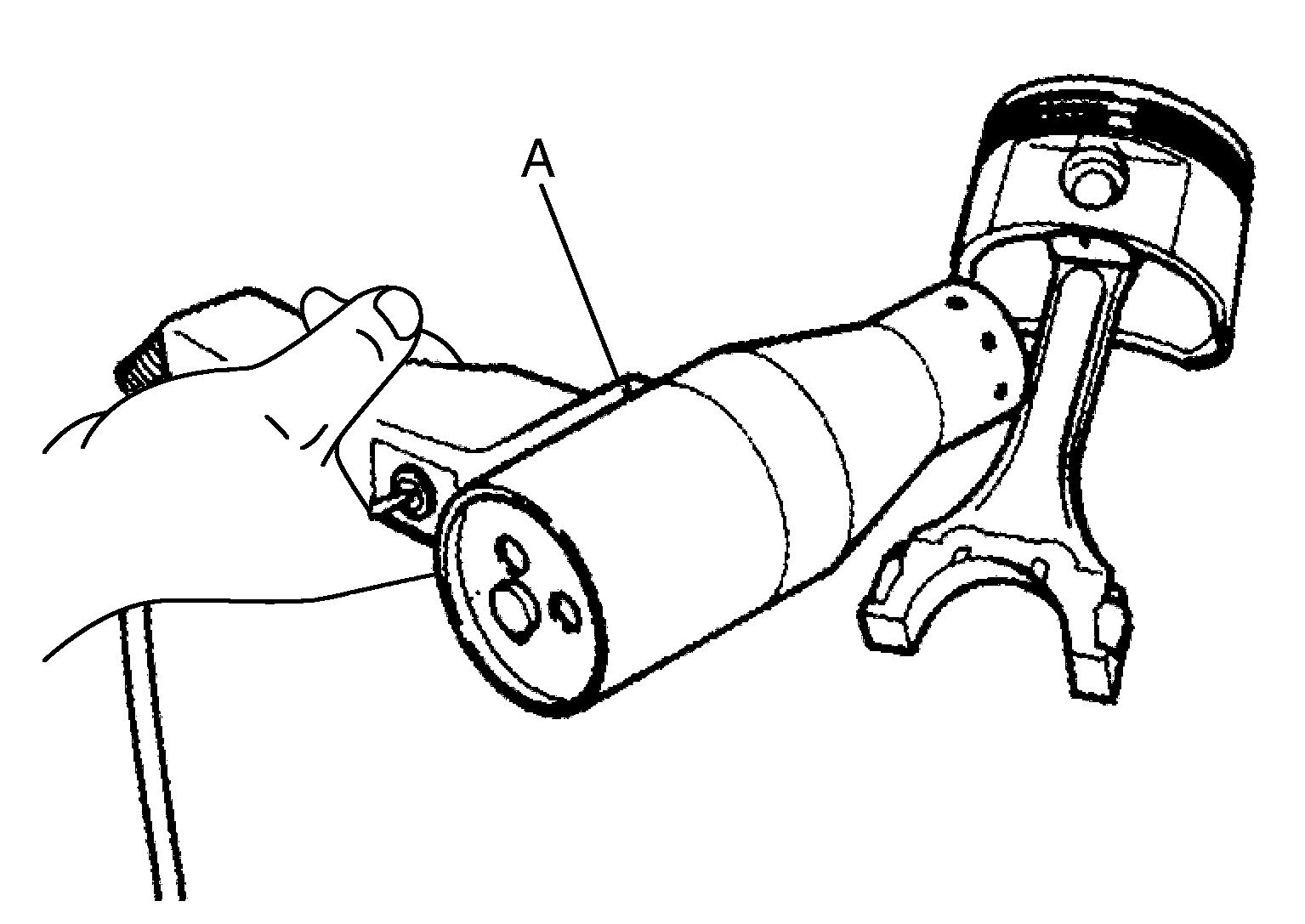

2. Heat piston to 60 to 70°C (140 to 158°F) with an industrial use dryer (A) or equivalent.

  Fig 4: Heating Piston Using Dryer
  Courtesy of NISSAN NORTH AMERICA, INC.

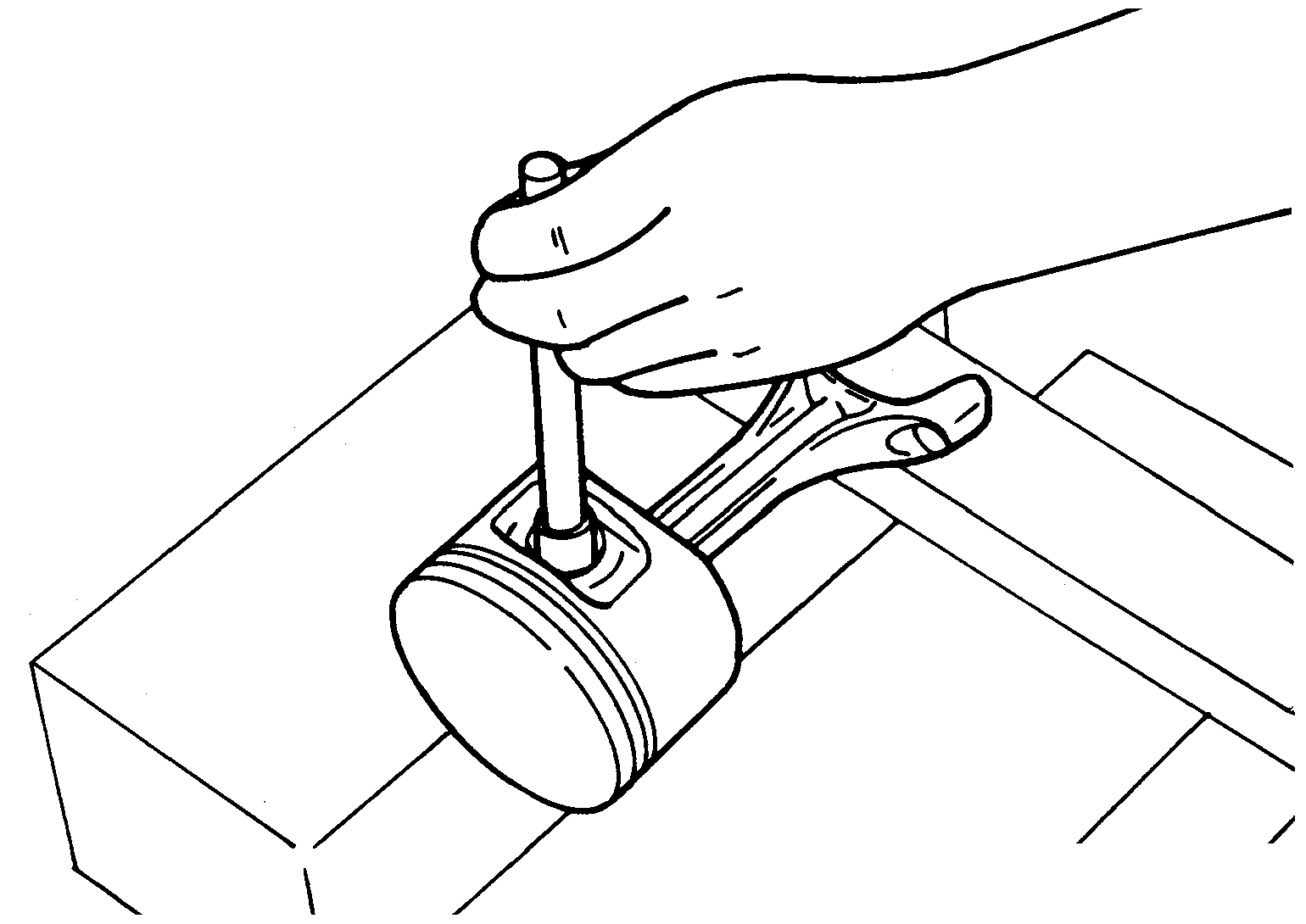

3. Push out piston pin using a stick than has an outer diameter of approximately 20 mm (0.79 in).

  Fig 5: Pushing Out Piston Pin
  Courtesy of NISSAN NORTH AMERICA, INC.
Remove lower cylinder block bolts.
- Before loosening lower cylinder block bolts, measure the crankshaft end play. Refer to INSPECTION .
- Loosen lower cylinder block bolts in the reverse order shown in the figure in several different steps.

  Fig 6: Lower Cylinder Block Bolt Tightening Sequence
  Courtesy of NISSAN NORTH AMERICA, INC.

  → : Engine front
Remove lower cylinder block as follows:

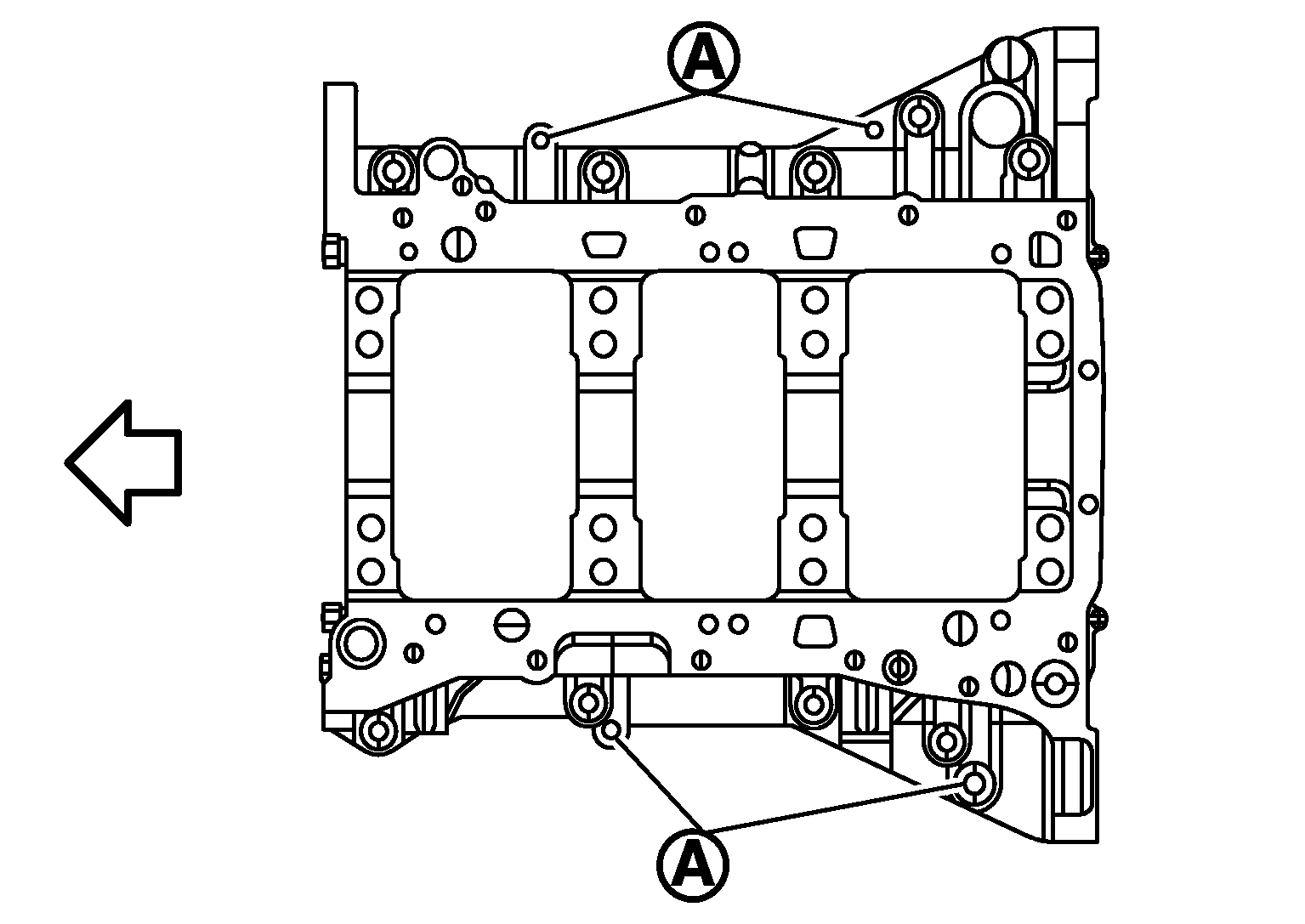

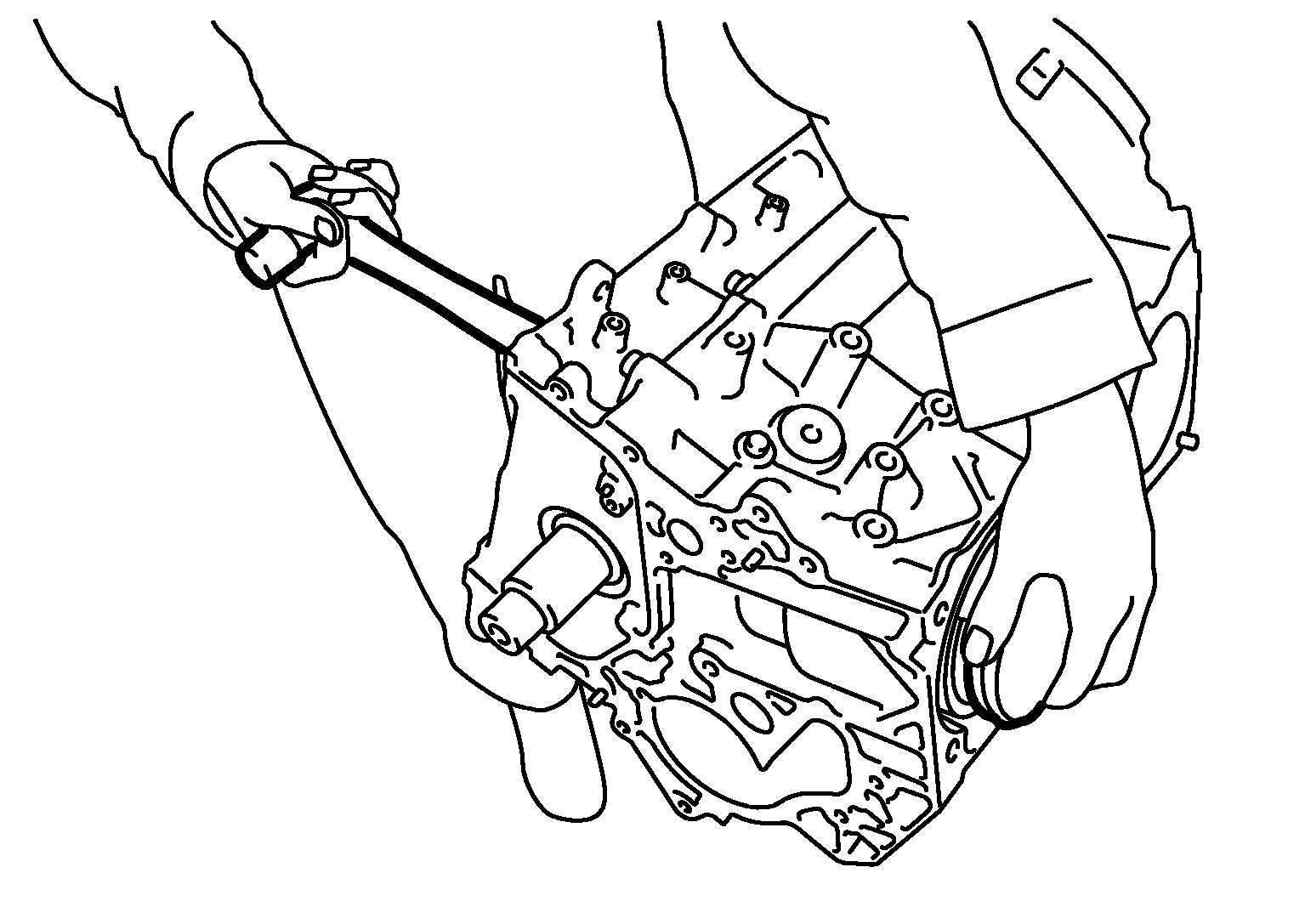

Screw M8 bolt [pitch: 1.25 mm (0.049 in) length: approximately 50 mm (1.97 in)] into bolt holes (A). Then equally tighten each bolt, and remove lower cylinder block.

Fig 7: Identifying Bolt Holes
Courtesy of NISSAN NORTH AMERICA, INC.

→ : Engine front
CAUTION:
- Be careful not to damage the mounting surfaces.
- Never tighten bolts excessively.
- Never insert screwdriver, this will damage the mating surface.
Remove crankshaft.
Pull rear oil seal out from rear end of crankshaft.
Remove main bearings and thrust bearings from cylinder block and lower cylinder block.
CAUTION:
- Be careful not to drop main bearing, and to scratch the surface.
- Identify installation positions, and store them without mixing them up.
Remove oil jet.
