Component Parts Location

Fig 1: Engine Control System Component Parts Location
GNSJMBIA0837ZZ-837Courtesy of NISSAN NORTH AMERICA, INC.
1. Battery current sensor 2. IPDM E/R 3. VVEL control module
4. Cooling fan relay 5. VVEL actuator motor relay 6. Mass air flow sensor (with intake air temperature sensor) (bank 1)
7. Refrigerant pressure sensor 8. Camshaft position sensor (PHASE) (bank 1) 9. Cooling fan motor-2
10. Intake valve timing control solenoid valve (bank 1) 11. Cooling fan control module 12. Cooling fan motor-1
13. Intake valve timing control solenoid valve (bank 2) 14. Camshaft position sensor (PHASE) (bank 2) 15. Mass air flow sensor (bank 2)
16. ICC brake hold relay (ICC models) 17. Brake booster pressure sensor 18. Ignition coil (with power transistor) and spark plug (bank 2)
19. Electric throttle control actuator (bank 2) 20. A/F sensor 1 (bank 2) 21. Fuel injector (bank 2)
22. VVEL control shaft position sensor (bank 2) 23. VVEL actuator motor (bank 2) 24. Manifold absolute pressure (MAP) sensor
25. Engine coolant temperature sensor 26. Knock sensor 27. Fuel injector (bank 1)
28. VVEL actuator motor (bank 1) 29. EVAP canister purge volume control solenoid valve 30. VVEL control shaft position sensor (bank 1)
31. Ignition coil (with power transistor) and spark plug (bank 1) 32. EVAP service port 33. A/F sensor 1 (bank 1)
34. Crankshaft position sensor (POS) 35. Electric throttle control actuator (bank 1)
Fig 2: Locating Mass Air Flow Sensors
GNSJMBIA0838ZZ-838Courtesy of NISSAN NORTH AMERICA, INC.
1. Mass air flow sensor (with intake air temperature sensor) (bank 1) 2. Mass air flow sensor (bank 2)
Fig 3: Locating Electric Throttle Control Actuators
GNSJMBIA0839ZZ-839Courtesy of NISSAN NORTH AMERICA, INC.
1. Electric throttle control actuator (bank 1) 2. Electric throttle control actuator (bank 2)
Fig 4: Locating Cooling Fans, Control Module And Relay
GNSJMBIA0840ZZ-840Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. Cooling fan motor-2 2. Cooling fan control module 3. Cooling fan motor-1
4. Cooling fan relay
Fig 5: Locating A/F Sensors And Heated O2 Sensors
G04073725Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Locating A/F Sensors
G05733167Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. A/F sensor 1 (bank 1) 2. A/F sensor 1 (bank 2)
Fig 7: Locating A/F Sensor Connectors
GNSJMBIA0841ZZ-841Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. A/F sensor 1 (bank 1) harness connector 2. A/F sensor 1 (bank 2) harness connector
Fig 8: Locating Heated Oxygen Sensors & Heated Oxygen Sensor Harness Connectors
G08102405Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. Heated oxygen sensor 2 (bank 2) 2. Heated oxygen sensor 2 (bank 2) harness connector 3. Heated oxygen sensor 2 (bank 1)
4. Heated oxygen sensor 2 (bank 1) harness connector
Fig 9: Locating MAP Sensor, Brake Booster Pressure Sensor, VVEL Relay & VVEL Control Module
GNSJMBIA0850ZZ-850Courtesy of NISSAN NORTH AMERICA, INC.
1. Manifold absolute pressure (MAP) sensor 2. Brake booster pressure sensor 3. VVEL actuator motor relay
4. VVEL control module
Fig 10: Locating VVEL Control Shaft Position Sensors & VVEL Actuator Motors
GNSJMBIA0851ZZ-851Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. VVEL control shaft position sensor (bank 1) 2. VVEL actuator motor (bank 1) 3. VVEL actuator motor (bank 2)
4. VVEL control shaft position sensor (bank 2)
Fig 11: Locating Intake Valve Timing Control Solenoid Valve Harness Connectors & Camshaft Position Sensors
GNSJMBIA0842ZZ-842Courtesy of NISSAN NORTH AMERICA, INC.
1. Camshaft position sensor (PHASE) (bank 1) 2. Intake valve timing control solenoid valve (bank 1) harness connector 3. Intake valve timing control solenoid valve (bank 2) harness connector
4. Camshaft position sensor (PHASE) (bank 2)
Fig 12: Locating Ignition Coils & Fuel Injectors
GNSJMBIA0843ZZ-843Courtesy of NISSAN NORTH AMERICA, INC.
1. Ignition coil No. 5 (with power transistor) 2. Ignition coil No. 3 (with power transistor) 3. Ignition coil No. 1 (with power transistor)
4. Fuel injector No. 3 5. Fuel injector No. 1 6. Fuel injector No. 2
7. Fuel injector No. 4 8. Ignition coil No. 2 (with power transistor) 9. Ignition coil No. 4 (with power transistor)
10. Ignition coil No. 6 (with power transistor) 11. Fuel injector No. 6 12. Fuel injector No. 5
13. Knock sensor (bank 1) 14. Knock sensor (bank 2)
Fig 13: Locating Engine Coolant Temperature Sensor, A/F Sensor 1 (Bank 1) & Crankshaft Position Sensor (POS)
GNSJMBIA0844ZZ-844Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. Engine coolant temperature sensor 2. A/F sensor 1 (bank 1) 3. Crankshaft position sensor (POS)
Fig 14: Locating IPDM E/R, Battery Current Sensor & Refrigerant Pressure Sensor
GNSJMBIA0013ZZ-013Courtesy of NISSAN NORTH AMERICA, INC.
1. IPDM E/R 2. Battery current sensor 3. Refrigerant pressure sensor
Fig 15: Locating Power Steering Pressure Sensor, Alternator & Engine Oil Temperature Sensor
GNSJMBIA0014ZZ-014Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. Power steering pressure sensor 2. Alternator 3. Engine oil temperature sensor
Fig 16: EVAP System Component Parts Location
GNSJMBIA0845ZZ-845Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. EVAP service port 2. EVAP canister purge volume control solenoid valve 3. EVAP canister
4. EVAP canister vent control valve 5. EVAP control system pressure sensor
Fig 17: Fuel Level Sensor Unit And Fuel Pump Component Parts Location
GNSJMBIA0019ZZ-019Courtesy of NISSAN NORTH AMERICA, INC.
→ : Vehicle front
1. Fuel level sensor unit and fuel pump harness connector 2. Fuel level sensor unit and fuel pump 3. Fuel pressure regulator
4. Fuel tank temperature sensor
Fig 18: Locating Accelerator Pedal Position Sensor & ECM
GNSJMBIA0015ZZ-015Courtesy of NISSAN NORTH AMERICA, INC.
1. Accelerator pedal position sensor 2. ECM

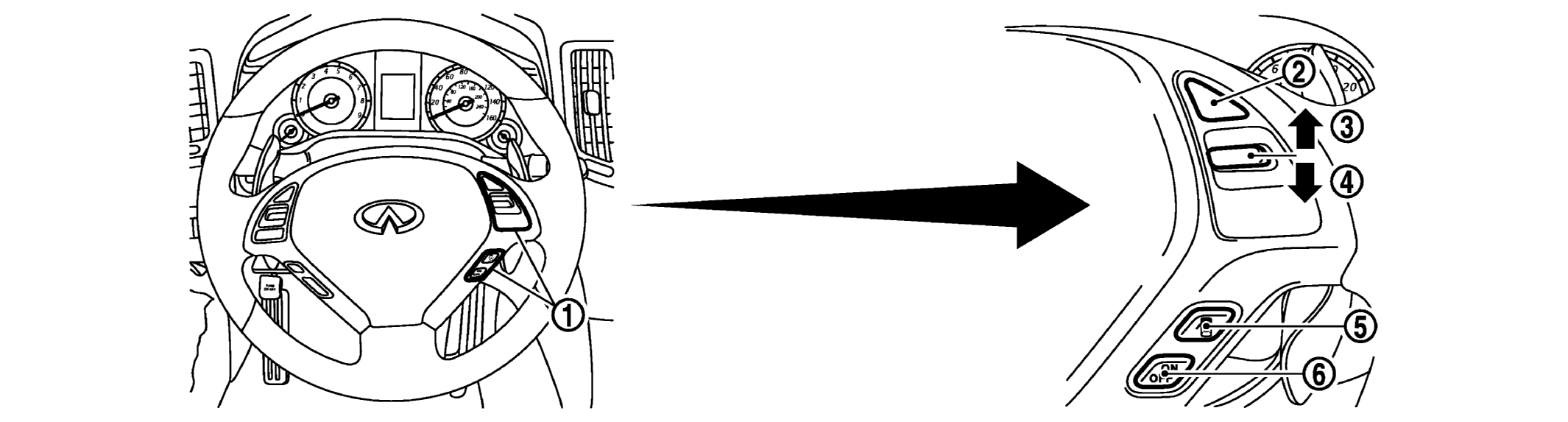

Fig 19: Locating ICC Steering Switches
GNSJMBIA0016ZZ-016Courtesy of NISSAN NORTH AMERICA, INC.
1. ICC steering switch 2. CANCEL switch 3. RESUME/ACCELERATE switch
4. SET/COAST switch 5. DISTANCE switch 6. MAIN switch
Fig 20: Locating ASCD Switches
GNSJMBIA0017ZZ-017Courtesy of NISSAN NORTH AMERICA, INC.
1. ASCD steering switch 2. CANCEL switch 3. RESUME/ACCELERATE switch
4. SET/COAST switch 5. MAIN switch
Fig 21: Locating Brake & Clutch Switches
G07019973Courtesy of NISSAN NORTH AMERICA, INC.
1. Stop lamp switch 2. ASCD brake switch (ASCD models)
ICC brake switch (ICC models)
3. Brake pedal
4. ASCD clutch switch 5. Clutch pedal
