Exploded View With Torque Specifications

Except for sport models

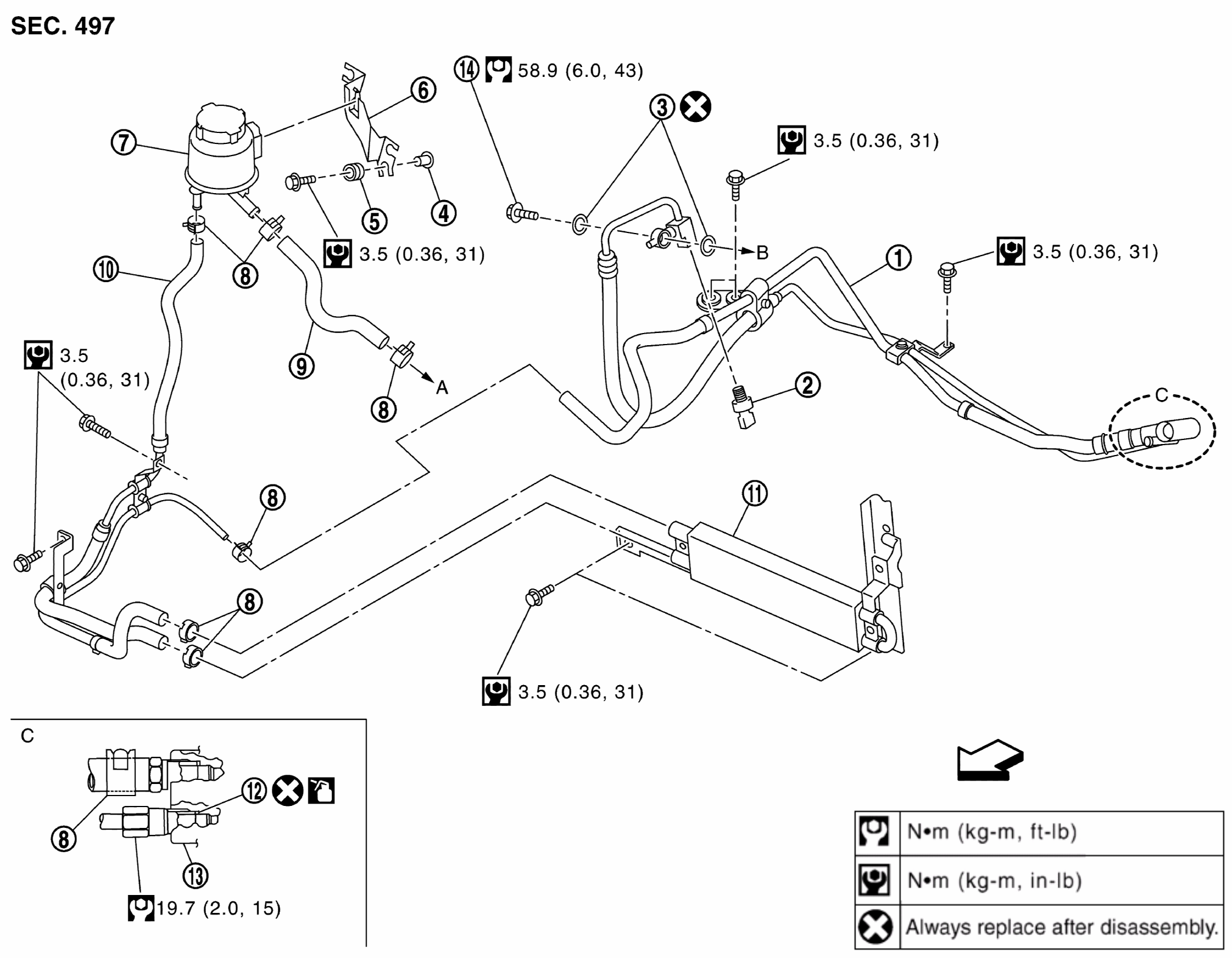

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (Except Sport Model)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	High pressure piping and low pressure piping	2.	Pressure sensor	3.	Copper washer
4.	Collar	5.	Bushing	6.	Reservoir tank bracket
7.	Reservoir tank	8.	Clamp	9.	Suction hose
10.	Return hose	11.	Oil cooler	12.	O-ring
13.	Gear-sub assembly	14.	Eye bolt
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
→: Vehicle front
Oil Can: Apply power steering fluid.
Refer to COMPONENTS for symbols not described on the above.

Sport models

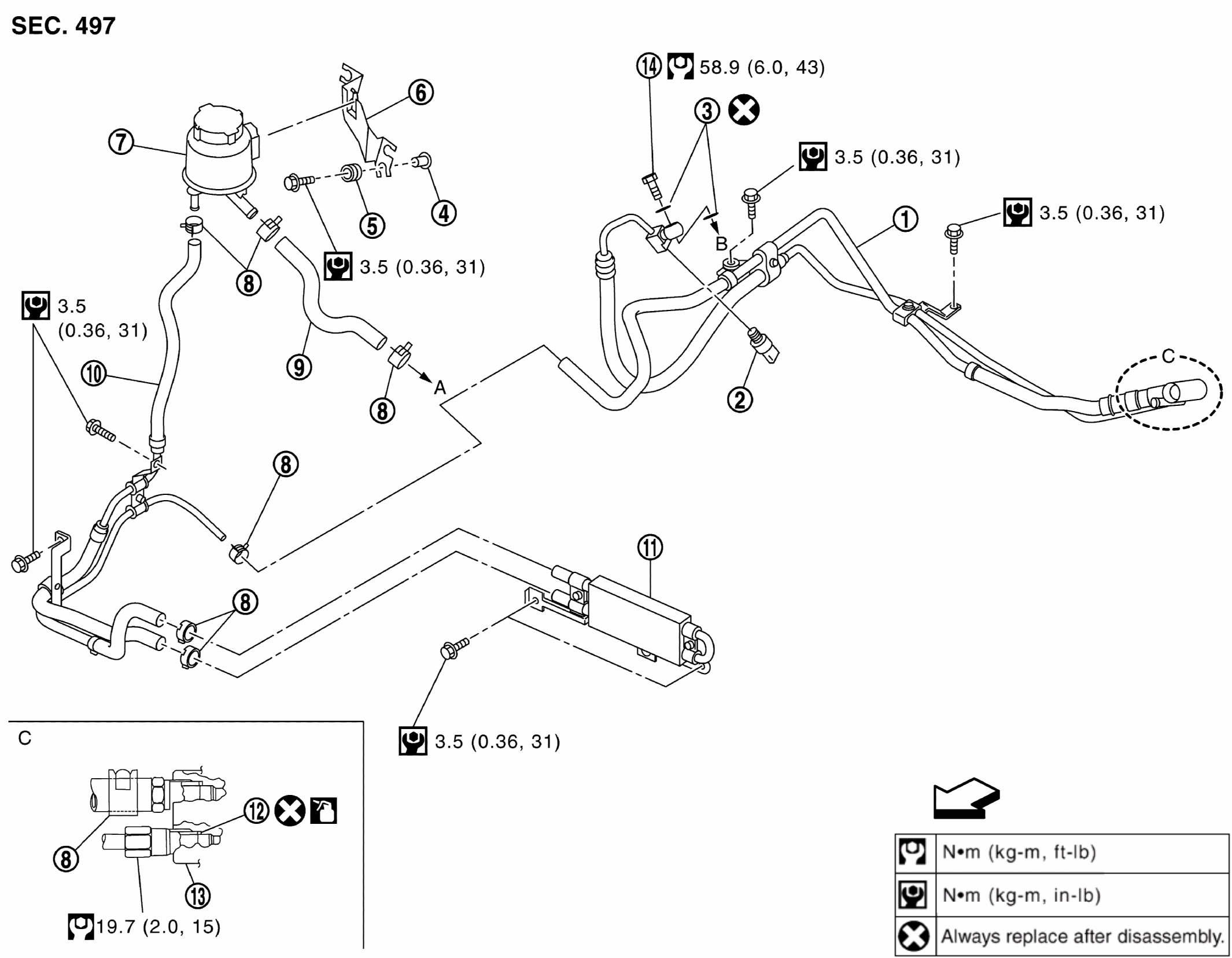

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (Sport Model)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	High pressure piping and low pressure piping	2.	Pressure sensor	3.	Copper washer
4.	Collar	5.	Bushing	6.	Reservoir tank bracket
7.	Reservoir tank	8.	Clamp	9.	Suction hose
10.	Return hose	11.	Oil cooler	12.	O-ring
13.	Gear-sub assembly	14.	Eye bolt
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
→: Vehicle front
Oil Can: Apply power steering fluid.
Refer to COMPONENTS for symbols not described on the above.
