Disassembly And Assembly: Assembly

1. Attach lock plate to rack part of gear housing assembly.
   CAUTION:

   Never reuse the lock plate.

2. Apply thread sealant into the thread of inner socket.

   Use Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to  RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS  .

3. Screw inner socket into rack part and tighten at the specified torque.
4. Secure with lock plate.

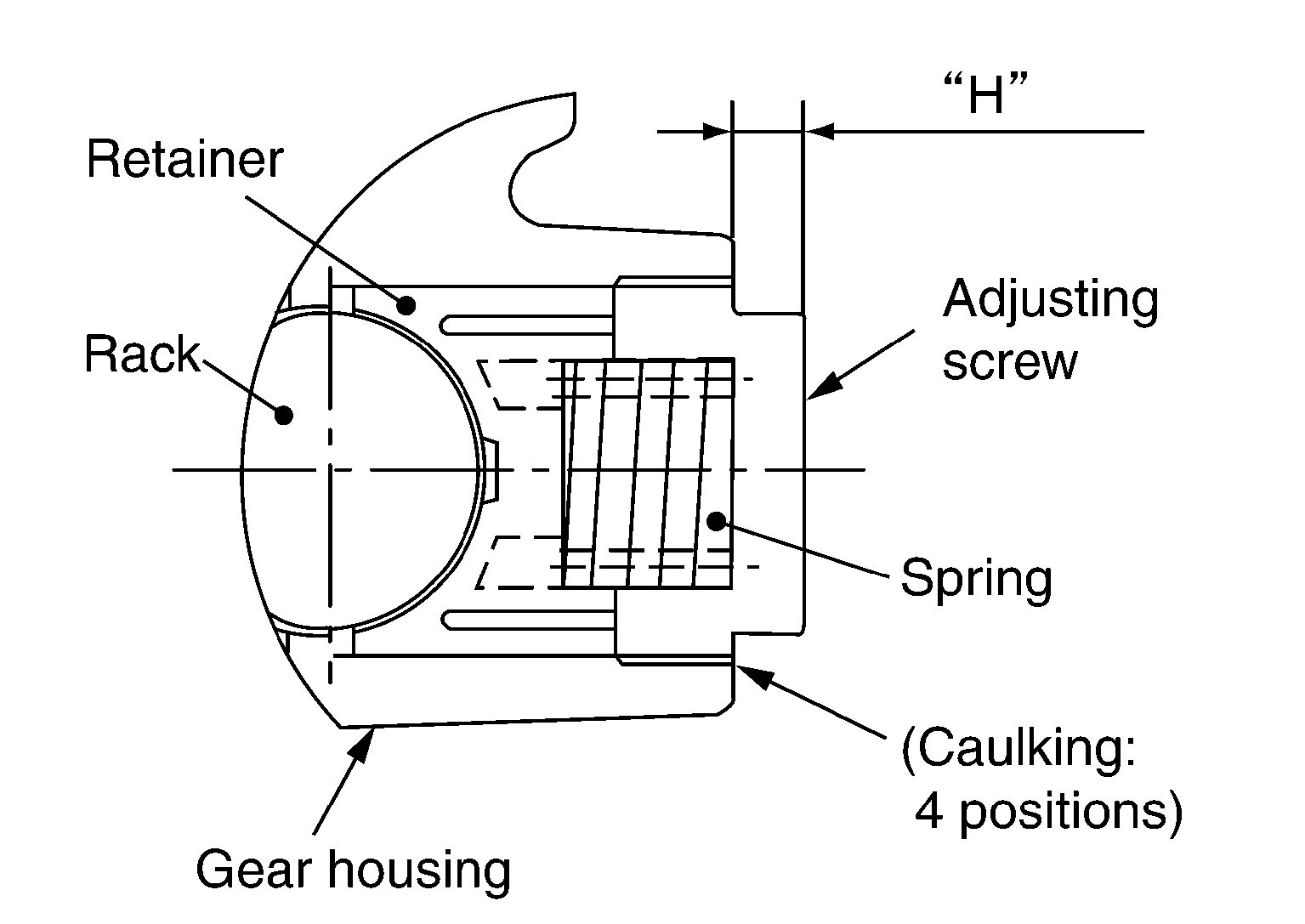

Fig 2: Identifying Adjusting Screw Height

Courtesy of NISSAN NORTH AMERICA, INC.

Use Genuine High Performance Thread Sealant or equivalent. Refer to  RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS  .

1. Measure pinion rotating torque within +-180° of neutral position of the rack assembly using Tools. Stop the gear at the point where highest torque is read.

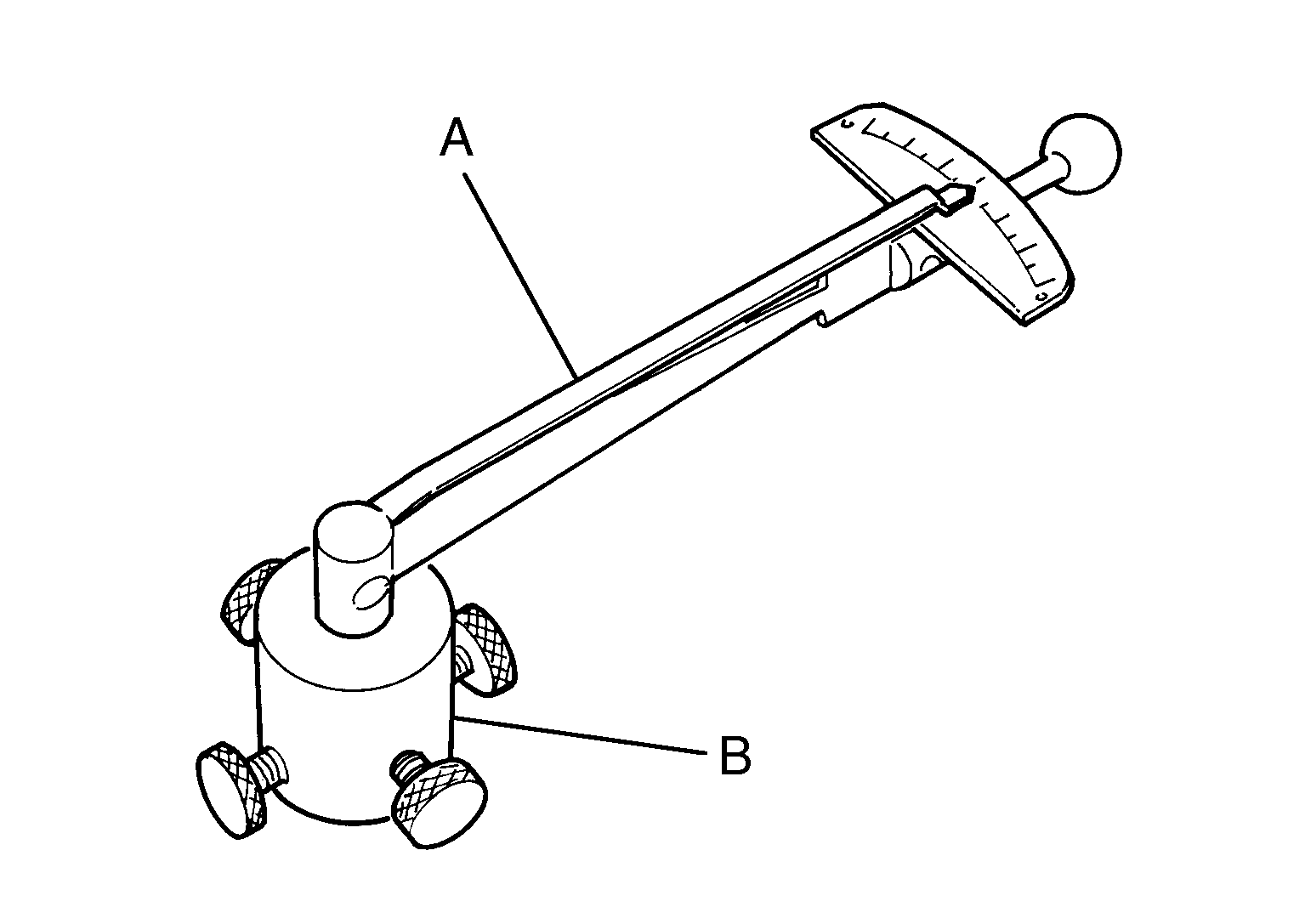

   Fig 3: Measuring Pinion Rotating Torque

   Courtesy of NISSAN NORTH AMERICA, INC.

   A: Preload gauge [SST: ST3127S000 (J-25765-A)]

   B: Preload adapter [SST: KV48103400 (-)]

2. Loosen adjusting screw and retighten to 5.4 N•m (0.55 kg - m, 48 in - lb), and then loosen by 20 to 40°.
3. Measure pinion rotating torque using Tools to make sure that the measured value is within the standard. Readjust if the value is outside the standard. Replace steering gear assembly if the value is outside the standard after readjusting or adjusting screw rotating torque is 5 N•m (0.51 kg-m, 44 in-lb) or less.

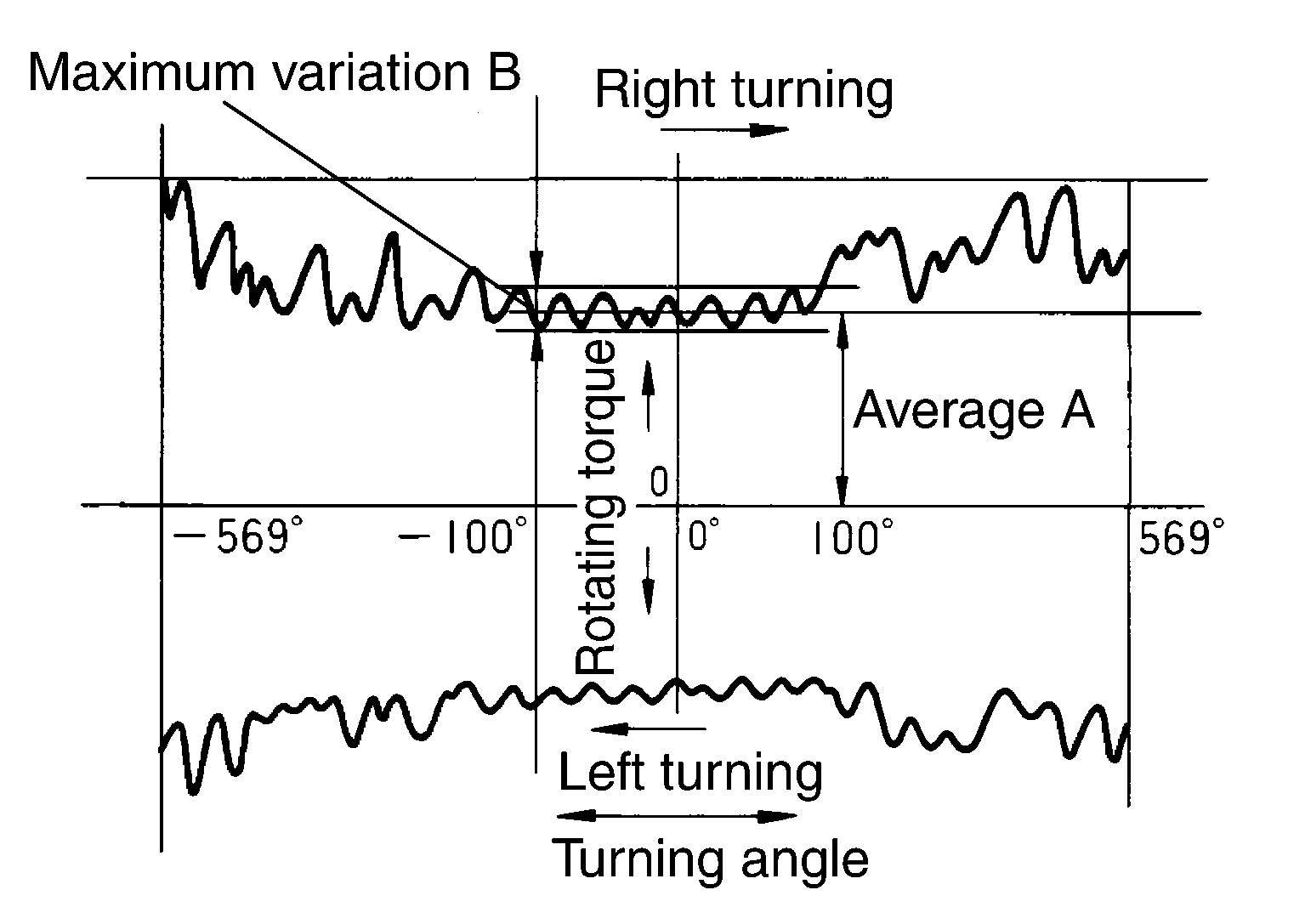

   Fig 4: Pinion Rotating Torque Graph

   Courtesy of NISSAN NORTH AMERICA, INC.

   Pinion rotating torque
   Around neutral position (within +-100°) average (A)	: Refer to PINION ROTATING TORQUE
   Maximum variation (B)	: Refer to PINION ROTATING TORQUE

4. Turn pinion fully to left.
5. Install dial gauge at 5 mm (0.20 in) (L) from the edge of gear housing assembly (1), and tooth point.

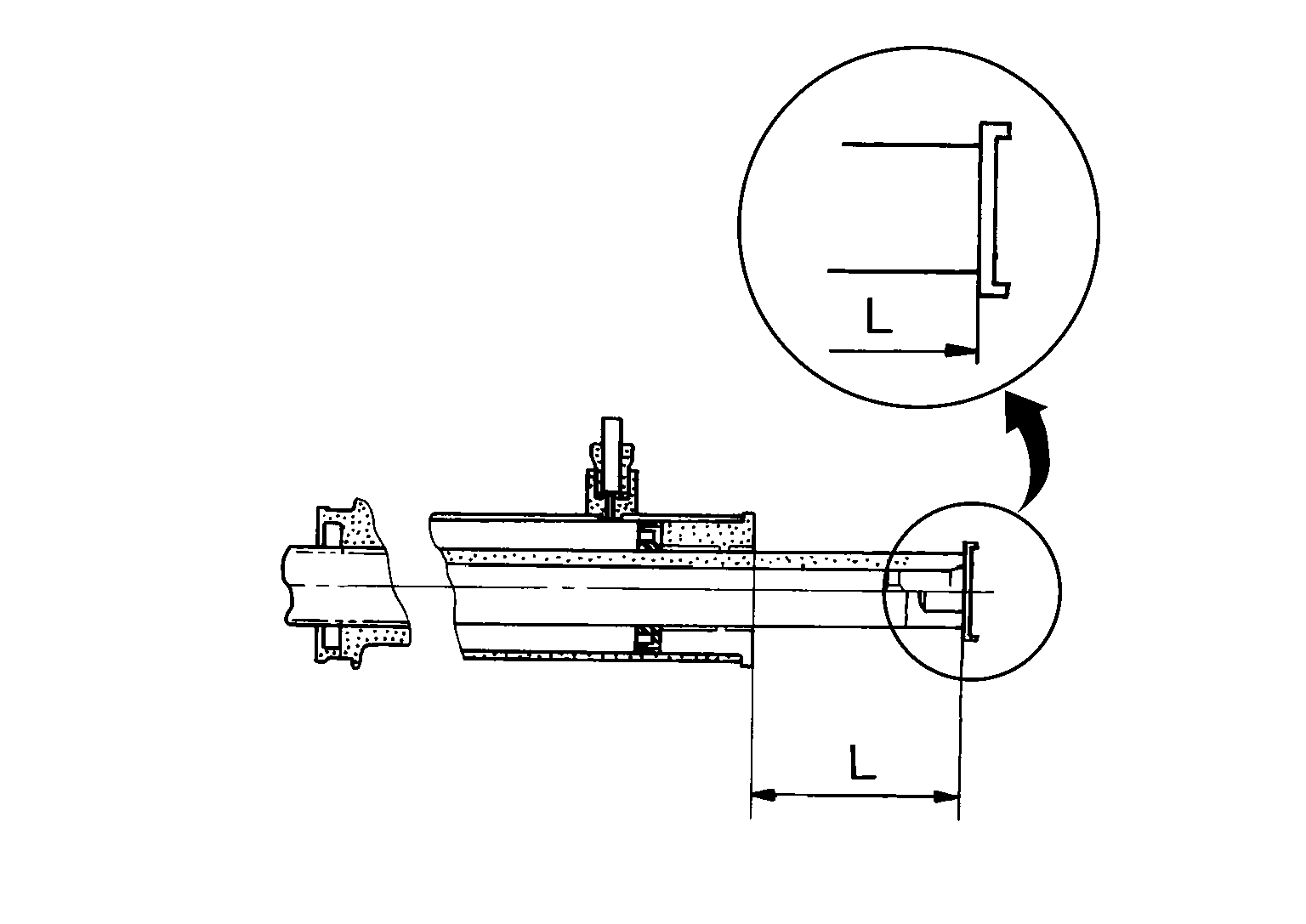

   Fig 5: Measuring Vertical Movement Of Rack Assembly

   Courtesy of NISSAN NORTH AMERICA, INC.
6. Measure vertical movement of rack assembly when pinion is turned clockwise with torque of 19.6 N•m (2.0 kg - m, 14 ft - lb). Readjust adjusting screw angle if the measured value is outside the standard.

   Vertical movement

   : 0.265 mm (0.0104 in)

   • If reading is outside of the specification, readjust screw angle with adjusting screw.
     CAUTION:

     • If reading is still outside of specification, or if the rotating torque of adjusting screw is less than 5 N•m (0.51 kg-m, 44 in-lb), replace steering gear assembly.
     • Never turn adjusting screw more than twice.
     • Replace steering gear assembly when adjusting screw is removed or turned more than twice.

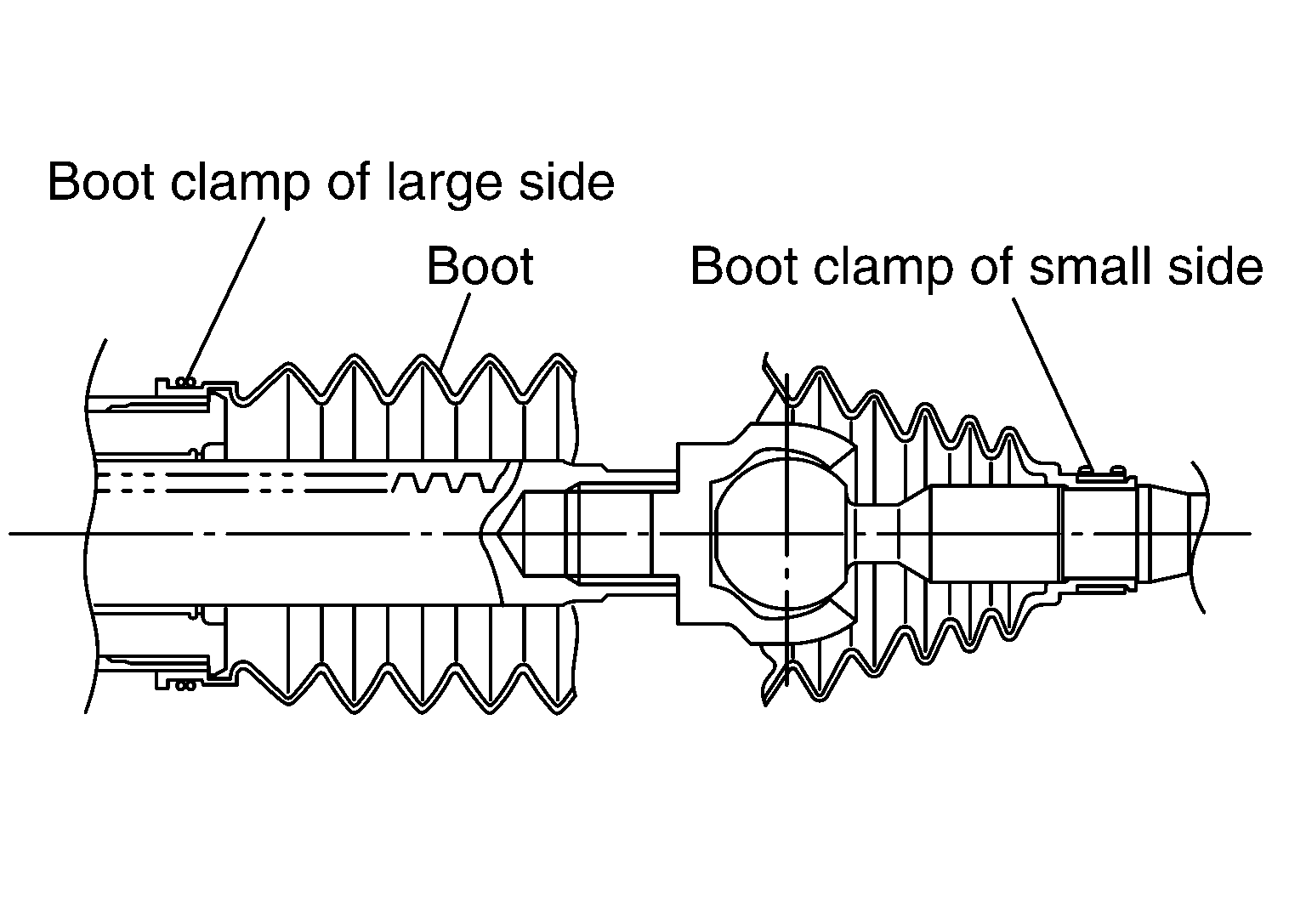

1. Tighten large side of boot with boot clamp (stainless wire).
   Fig 7: Tightening Large Side Of Boot With Boot Clamp (Stainless Wire)

   Courtesy of NISSAN NORTH AMERICA, INC.

   Wire length (L)

   : 370 mm (14.57 in)

2. Wrap clamp around boot groove for two turns. Insert a flat-bladed screwdriver in loops on both ends of wire. Twist 4 to 4.5 turns while pulling them with force of approximately 98 N (10 kg, 22 lb).
3. Twist boot clamp as shown below. Pay attention to relationship between winding and twisting directions.
   Fig 8: Twisting Boot Clamp

   Courtesy of NISSAN NORTH AMERICA, INC.
4. Twisted area (A) of clamp is in the opposite side of adjusting screw (1) as shown in the figure below (to prevent contact with other parts).
   Fig 9: Identifying Twisted Area Of Clamp

   Courtesy of NISSAN NORTH AMERICA, INC.
5. Bent cut end of the wire as shown in the figure below after twisting the wire 4 to 4.5 turns so that cut end does not contact with boot.
   Fig 10: Identifying Wire Angle

   Courtesy of NISSAN NORTH AMERICA, INC.
   CAUTION:

   Keep gap from cylinder tube 5 mm (0.20 in) or more.

   Wire angle (A)

   : 45°
