Exploded View With Torque Specifications: Disassembly

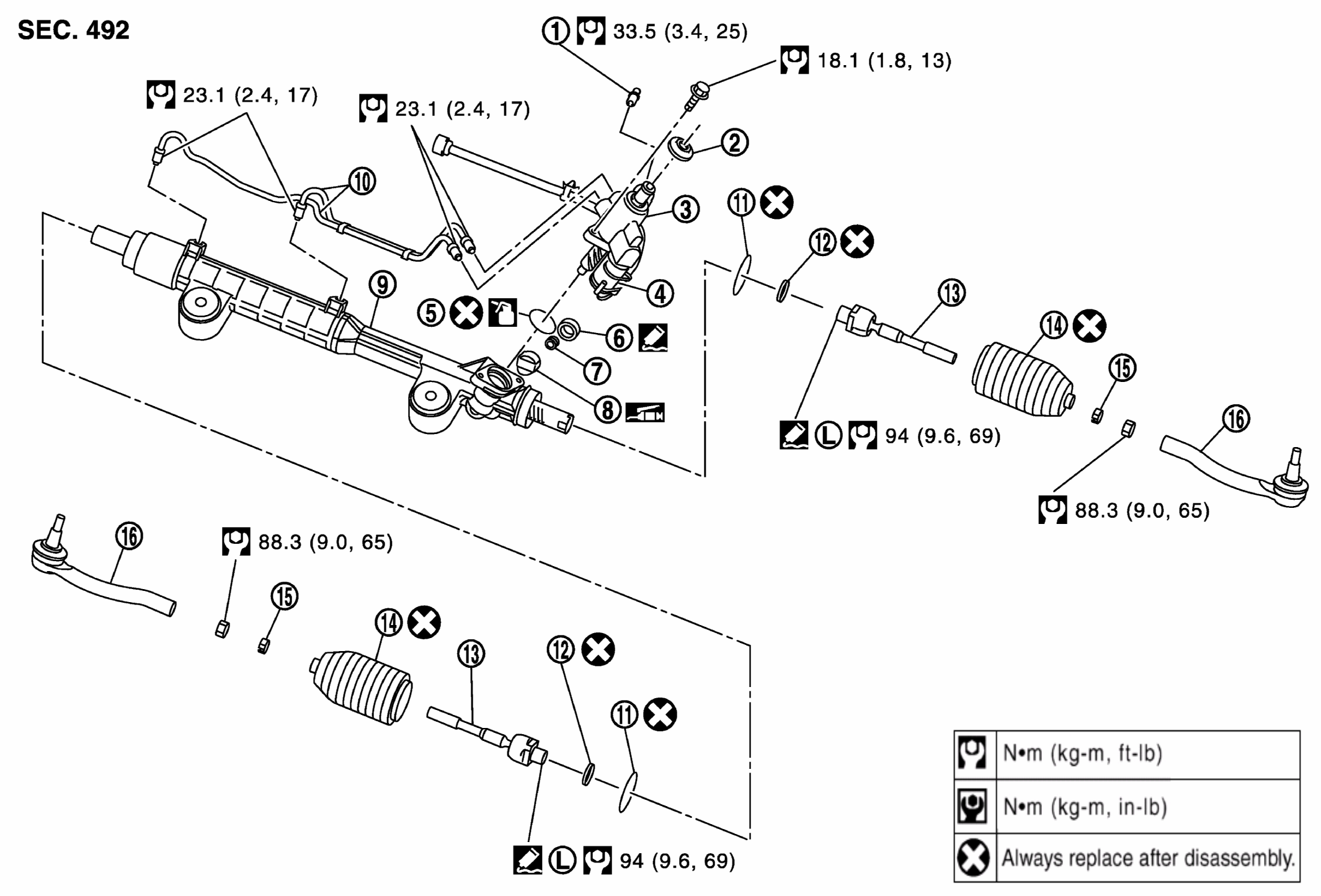

Fig 1: Disassembled View Of Steering Gear With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Low pressure piping	2.	Rear cover cap	3.	Gear-sub assembly
4.	Power steering solenoid valve	5.	O-ring	6.	Adjusting screw
7.	Spring	8.	Retainer	9.	Gear housing assembly
10.	Cylinder tubes	11.	Boot clamp (stainless wire)	12.	Lock plate
13.	Inner socket	14.	Boot	15.	Boot clamp
16.	Outer socket
Oil Can Icon: Apply power steering fluid.
Sealer L : Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Sealer: Apply Genuine High Performance Thread Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Lubricate: Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
