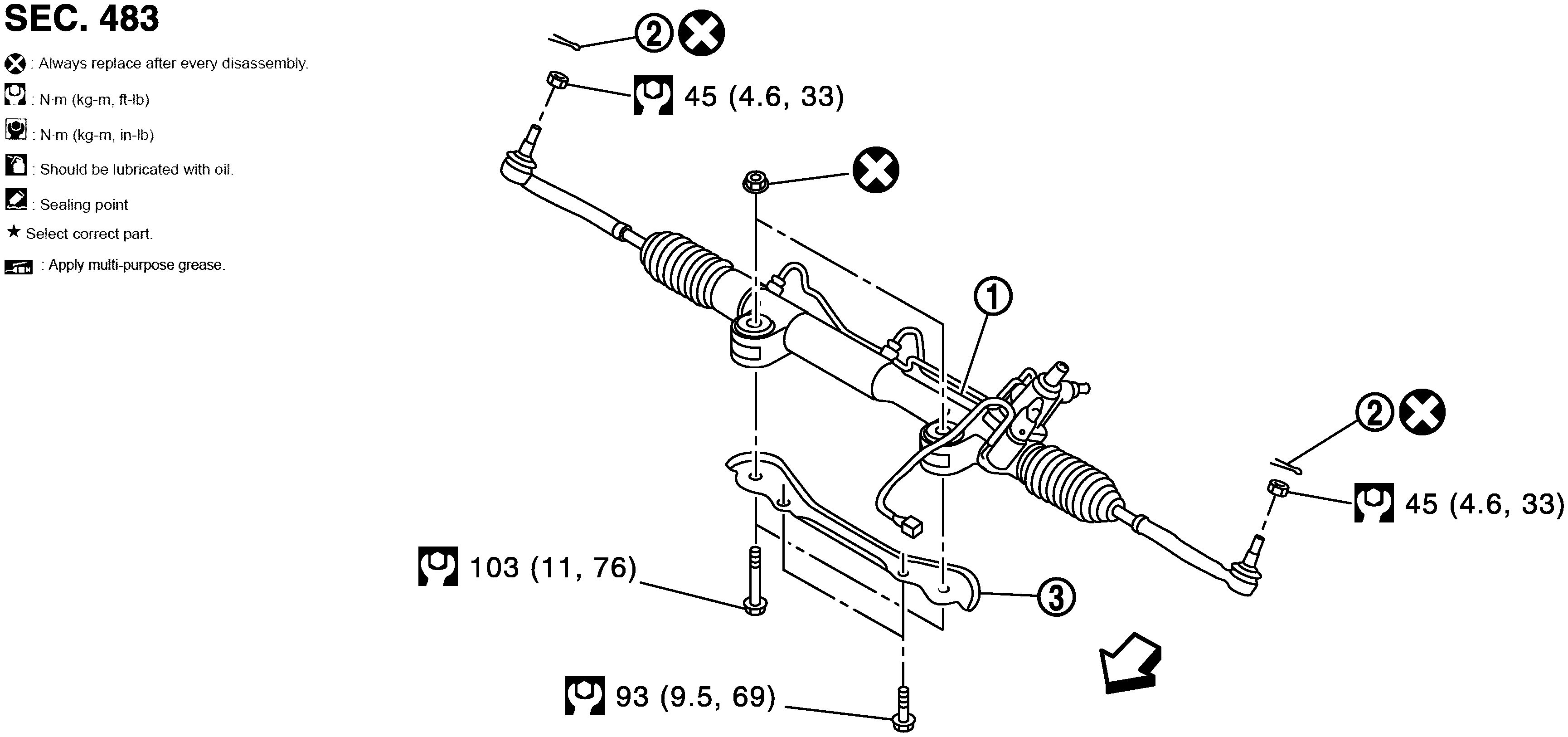

Exploded View With Torque Specifications: Removal
| 1. | Steering gear assembly | 2. | Cotter pin | 3. | Rack stay |
| →: Vehicle front | |||||
| Refer to COMPONENTS for symbols in the figure. | |||||
| 1. | Steering gear assembly | 2. | Cotter pin | 3. | Rack stay |
| →: Vehicle front | |||||
| Refer to COMPONENTS for symbols in the figure. | |||||
