Exploded View With Torque Specifications

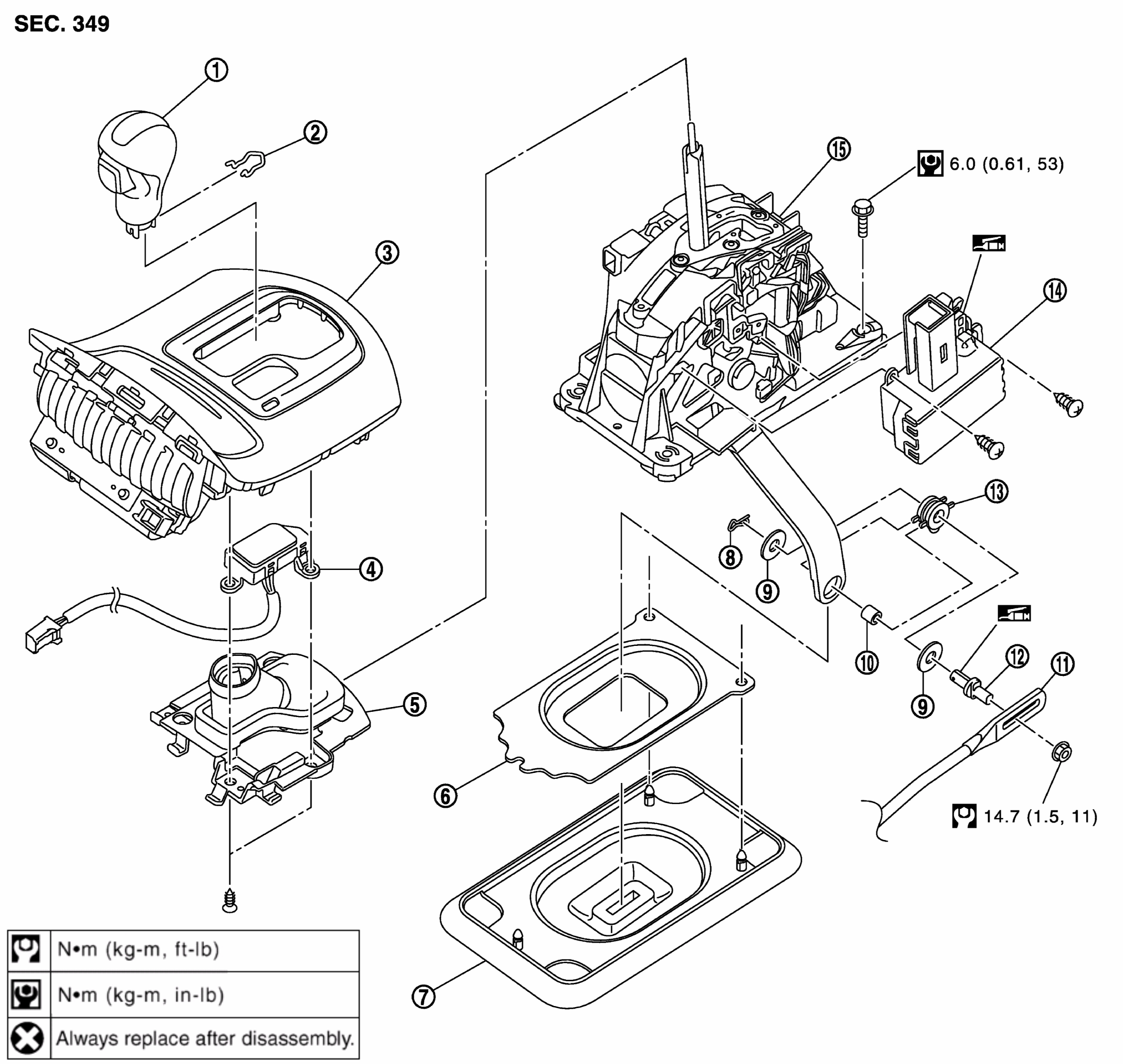

Fig 1: Exploded View Of A/T Shift Selector

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Selector lever knob	2.	Lock pin	3.	Console finisher
4.	Selector lever position indicator	5.	Insert finisher	6.	Dust cover plate
7.	Dust cover	8.	Snap pin	9.	Washer
10.	Collar	11.	Control rod	12.	Pivot pin
13.	Insulator	14.	Shift lock unit	15.	A/T shift selector assembly
Lubricate : Apply multi-purpose grease.
Refer to COMPONENTS for symbols not described on the above.
