Electronically Controlled Power Steering System Wiring Diagram

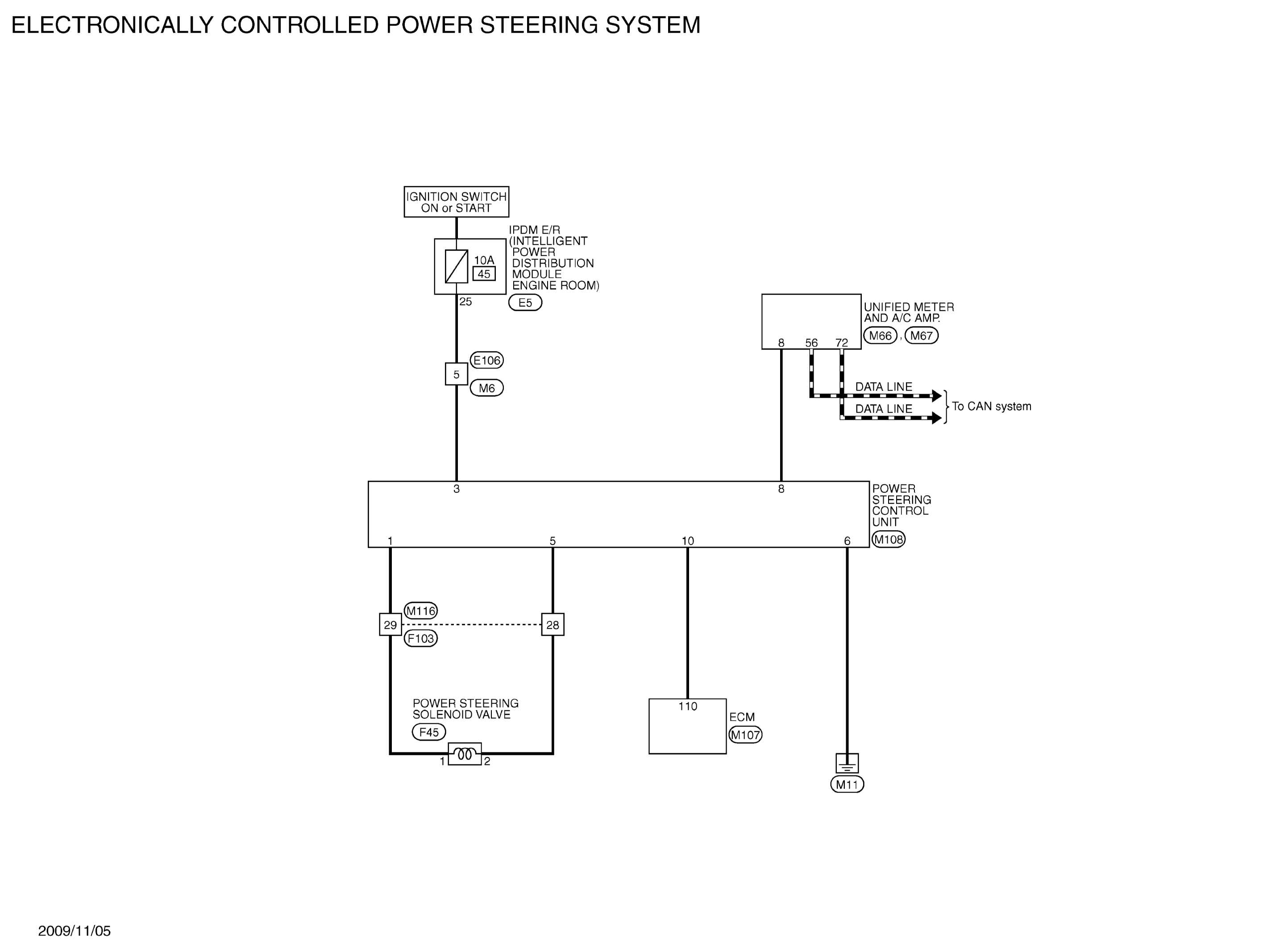

Fig 1: Electronically Controlled Power Steering System Wiring Diagram
G06618255Courtesy of NISSAN NORTH AMERICA, INC.
