IPDM E/R Connector End Views

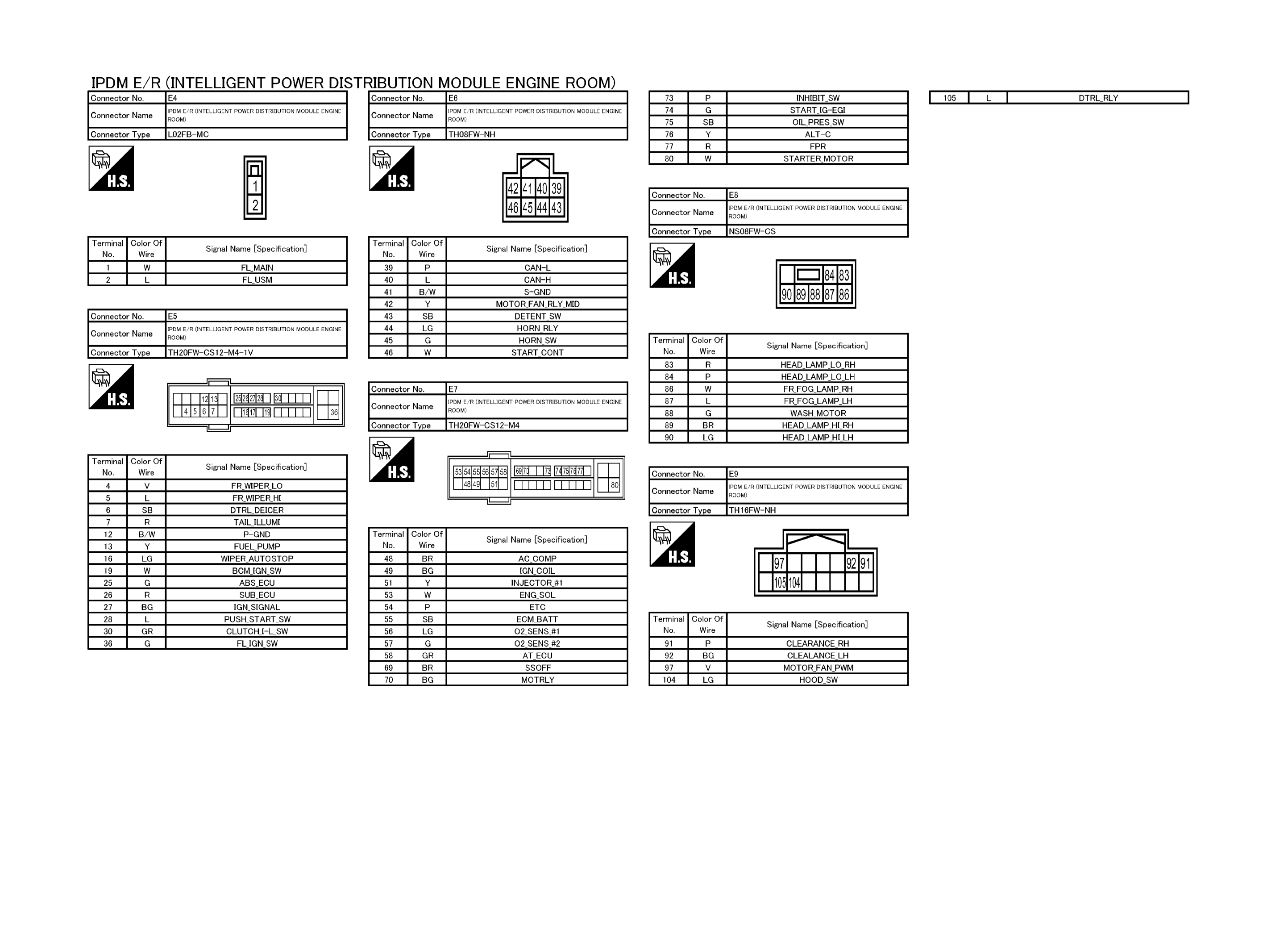

Fig 1: IPDM E/R Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
