Base Audio Without Navigation Connector End Views

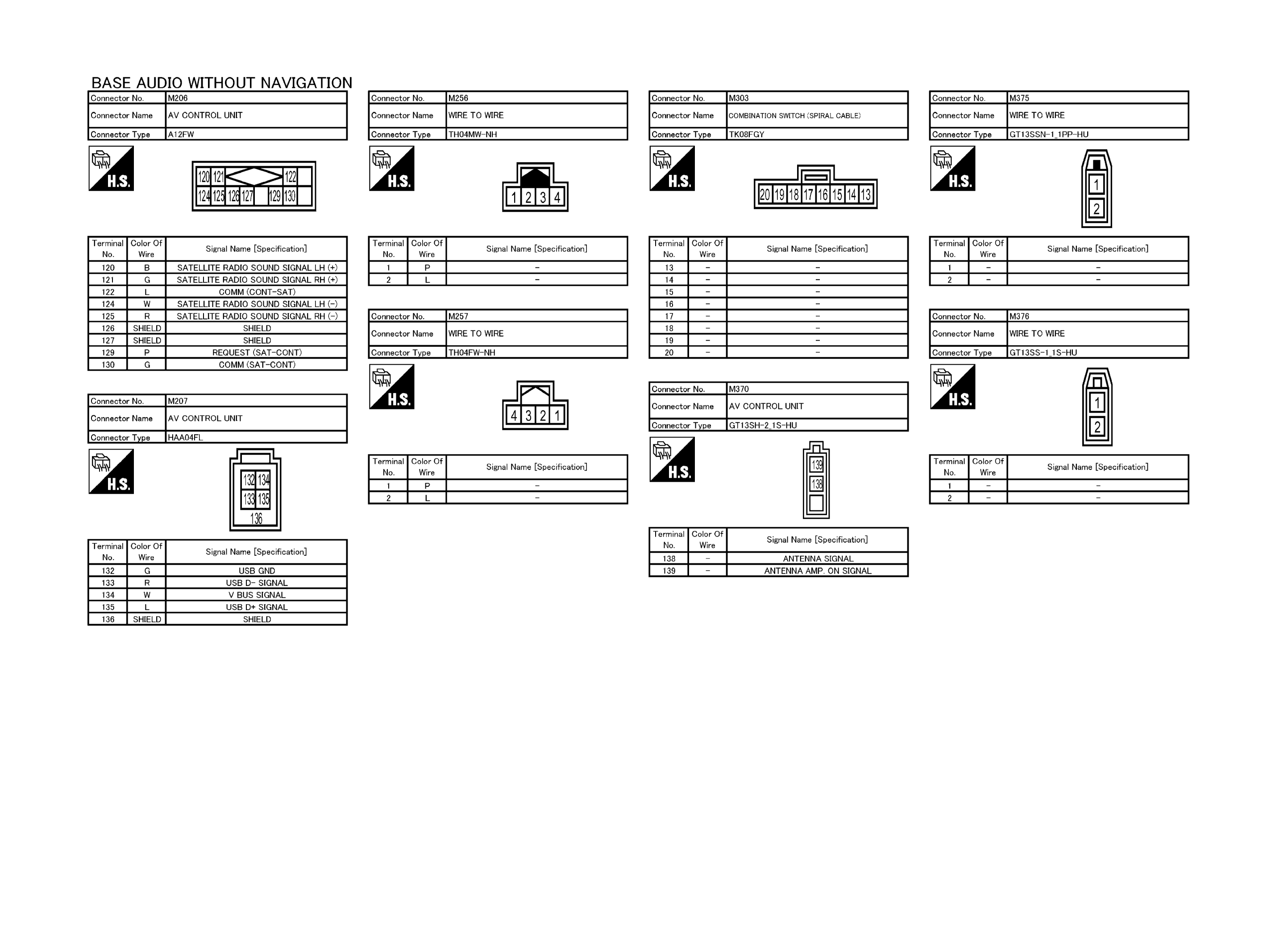

Fig 1: Base Audio Without Navigation Connector End Views (1 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

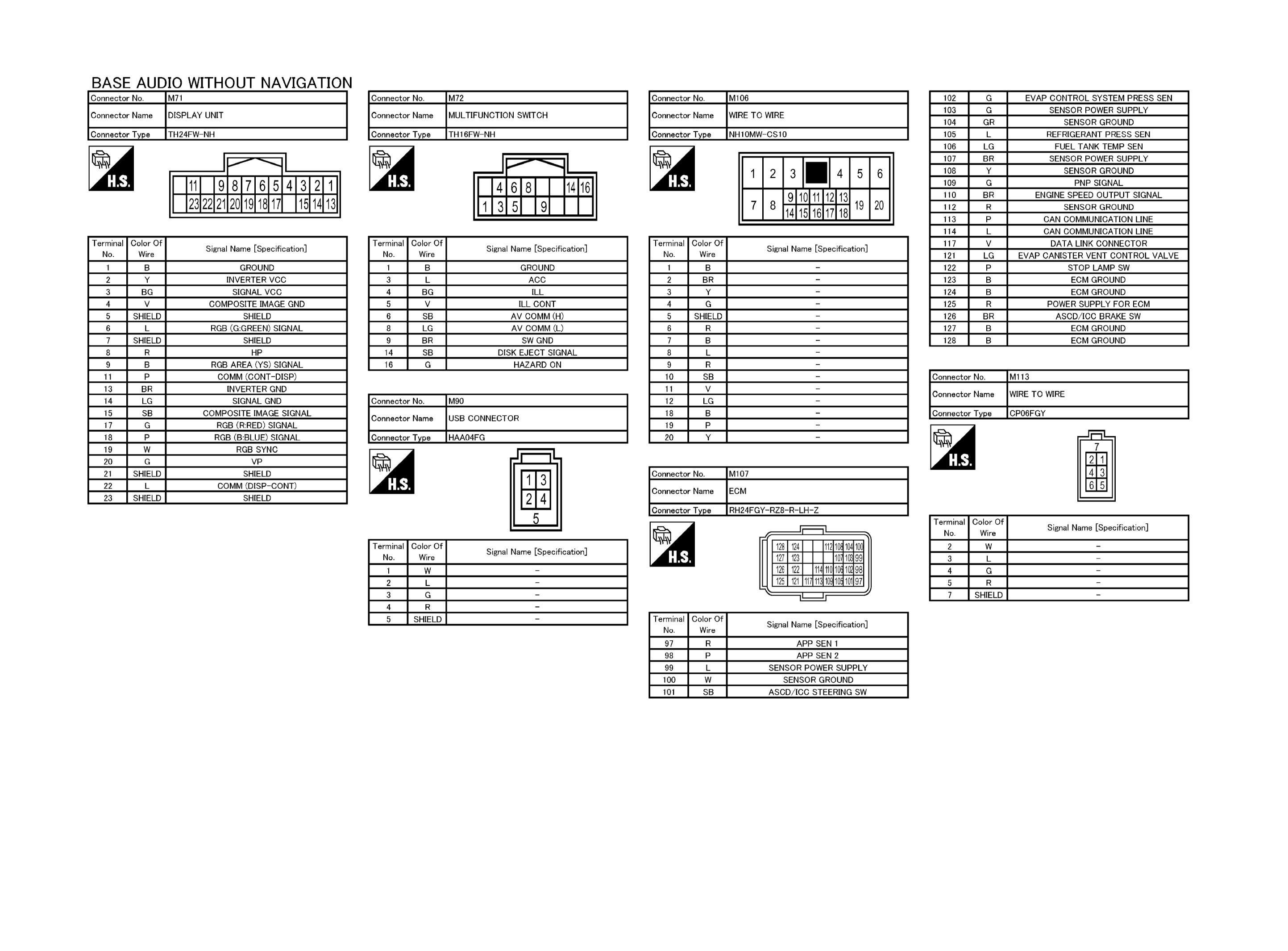

Fig 2: Base Audio Without Navigation Connector End Views (2 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

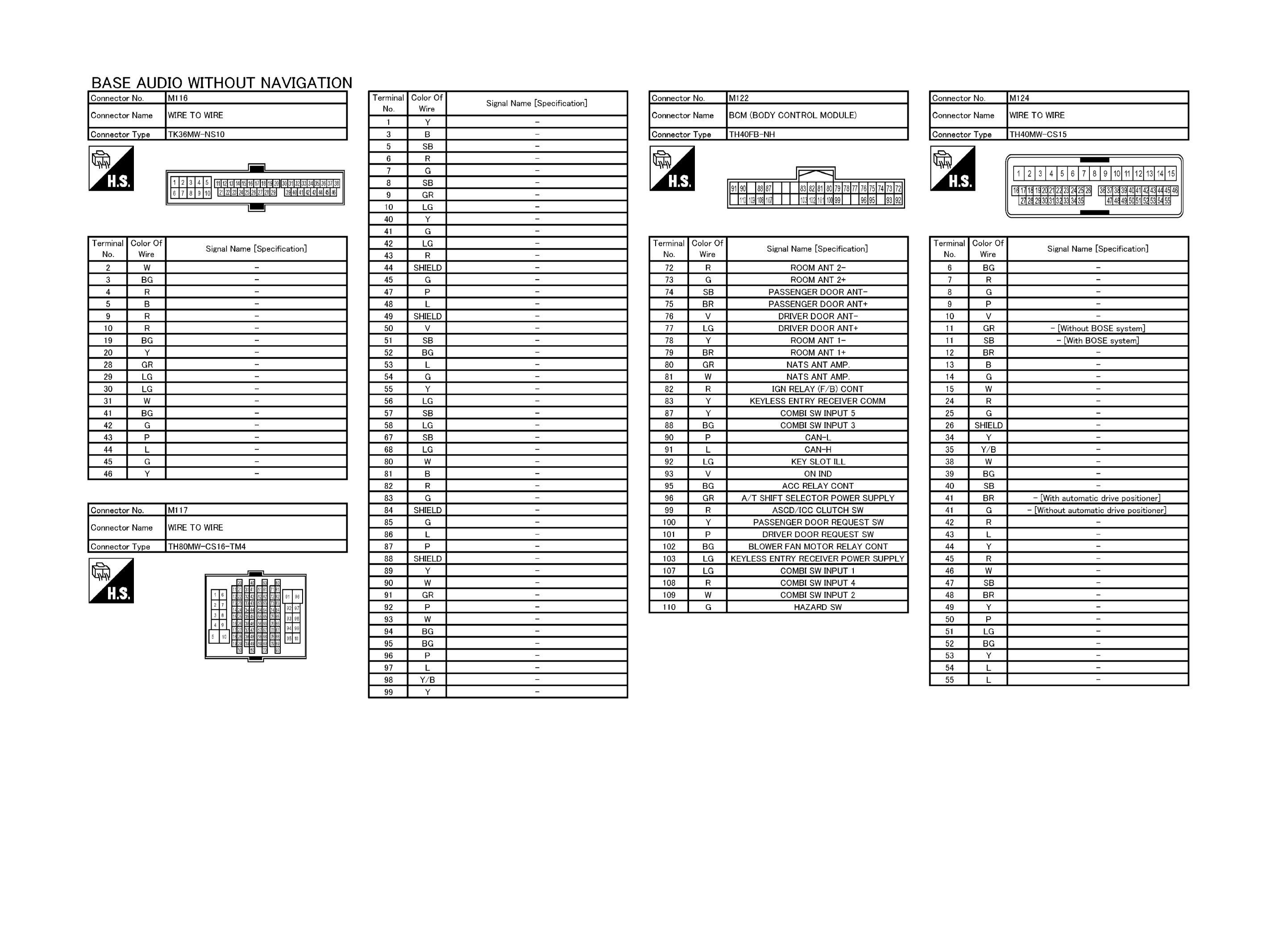

Fig 3: Base Audio Without Navigation Connector End Views (3 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

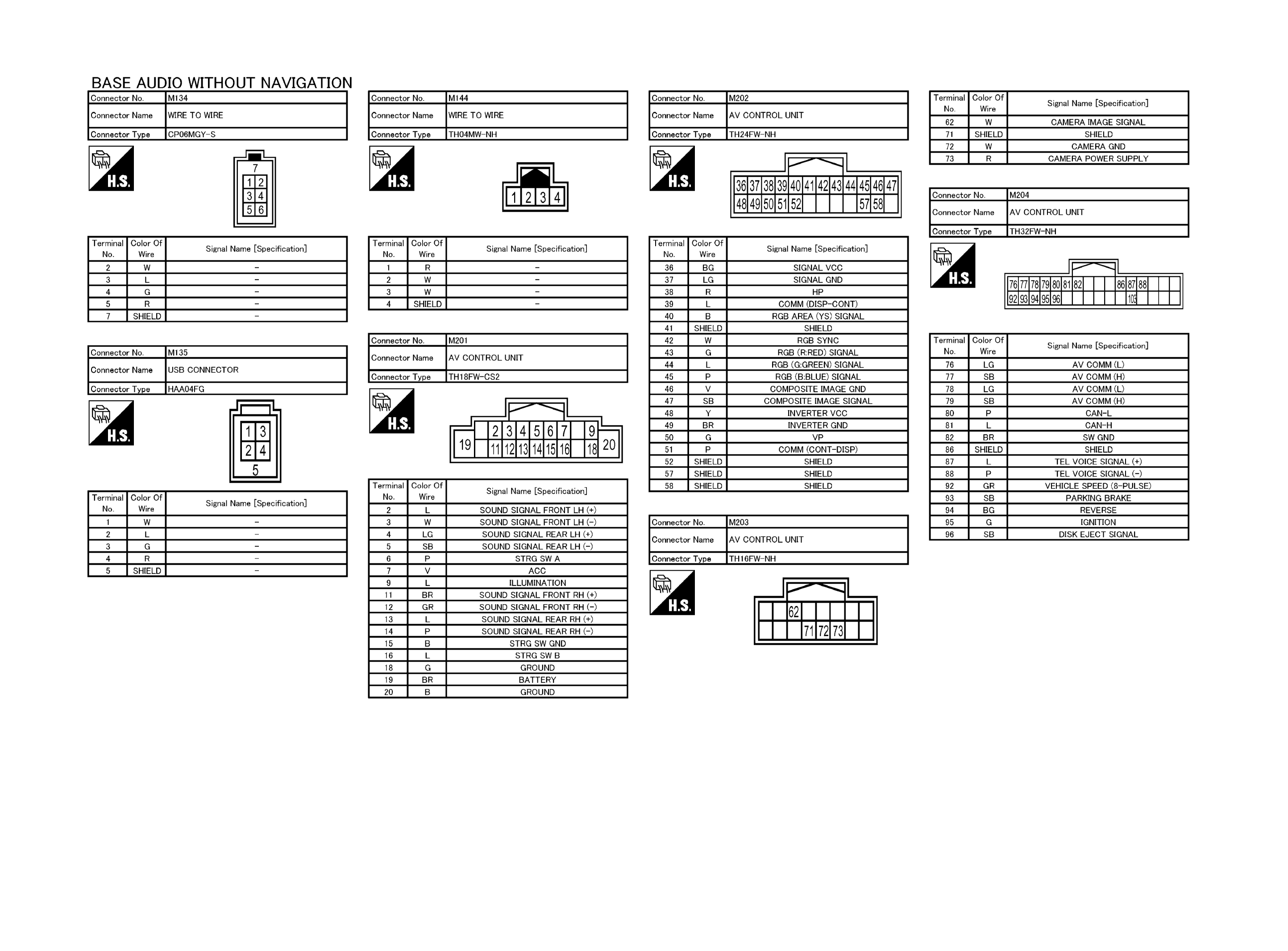

Fig 4: Base Audio Without Navigation Connector End Views (4 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

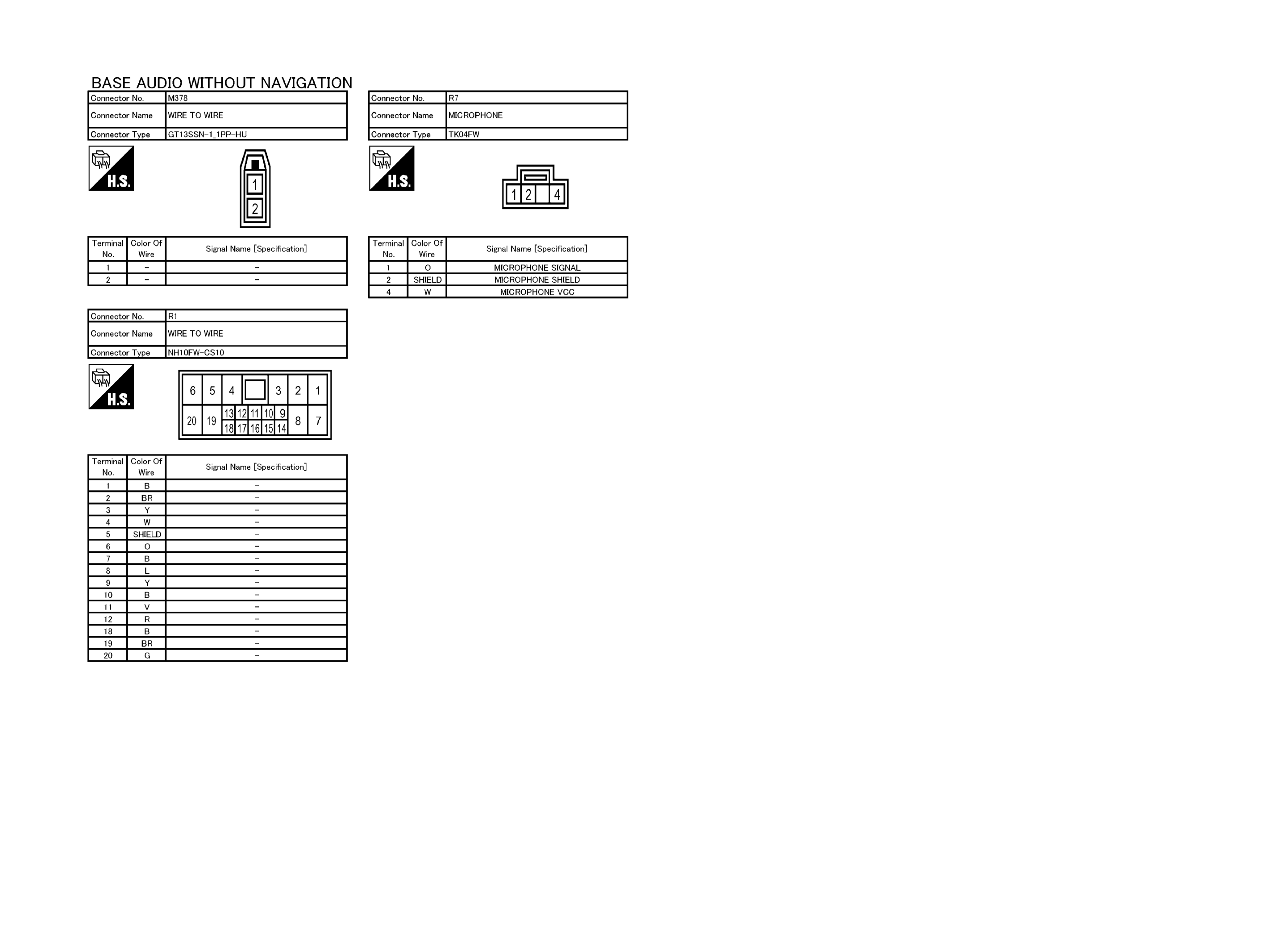

Fig 5: Base Audio Without Navigation Connector End Views (5 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Base Audio Without Navigation Connector End Views (6 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Base Audio Without Navigation Connector End Views (7 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Base Audio Without Navigation Connector End Views (8 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Base Audio Without Navigation Connector End Views (9 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Base Audio Without Navigation Connector End Views (10 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Base Audio Without Navigation Connector End Views (11 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Base Audio Without Navigation Connector End Views (12 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Base Audio Without Navigation Connector End Views (13 Of 13)

Courtesy of NISSAN NORTH AMERICA, INC.
