Physical Values

Terminal
(Wire color)		 Description Condition Reference value
(Approx.)
+ - Signal name Input/Output
14
(LG)		 - AV communication signal (L) Input/Output - - -
15
(LG)		 - AV communication signal (L) Input/Output - - -
16
(W)		 Ground ACC power supply Input Ignition switch ACC - 12.0 V
29
(P)		 9
(L)		 Sound signal LH Input Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
30
(R)		 10
(G)		 Sound signal RH Input Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
31
(Y)		 11

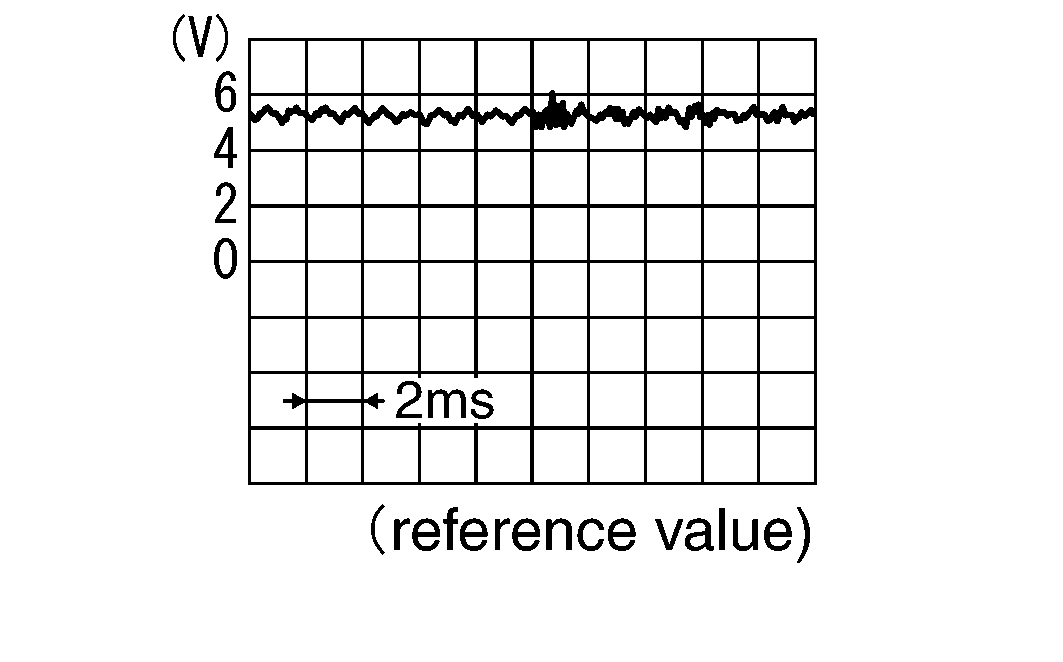

(G)		 Microphone signal
(for AudioPilot™ )		 Input Ignition switch ON When inputting noise.
G04084923Courtesy of NISSAN NORTH AMERICA, INC.
33 - Shield - - - -
34
(SB)		 - AV communication signal (H) Input/Output - - -
35
(SB)		 - AV communication signal (H) Input/Output - - -
40
(V)		 Ground Roof status signal Input Ignition switch ON Retractable hard top is fully closed. 12.0 V
Other than above. 0 V
41
(B)		 42
(W)		 Sound signal door woofer LH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
45
(G)		 46
(R)		 Sound signal door woofer RH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
47
(B)		 Ground Ground - Ignition switch ON - 0 V
50
(Y)		 Ground Battery power supply Input Ignition switch OFF - Battery voltage
51
(GR)		 Ground Battery power supply Input Ignition switch OFF - Battery voltage
52
(B)		 Ground Ground - Ignition switch ON - 0 V
54
(L)		 49
(P)		 Sound signal rear woofer LH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
56
(W)		 69
(B)		 Sound signal passenger headrest speaker LH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
57
(BG)		 58
(P)		 Sound signal center speaker Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
59
(L)		 72
(W)		 Sound signal front LH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
62
(V)		 73
(LG)		 Sound signal front RH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
63
(G)		 74
(Y)		 Sound signal driver headrest speaker LH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
64
(W)		 75
(B)		 Sound signal driver headrest speaker RH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
68
(LG)		 55
(BG)		 Sound signal rear woofer RH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
71
(Y)		 70
(G)		 Sound signal passenger headrest speaker RH Output Ignition switch ON Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.
