Exploded View With Torque Specifications

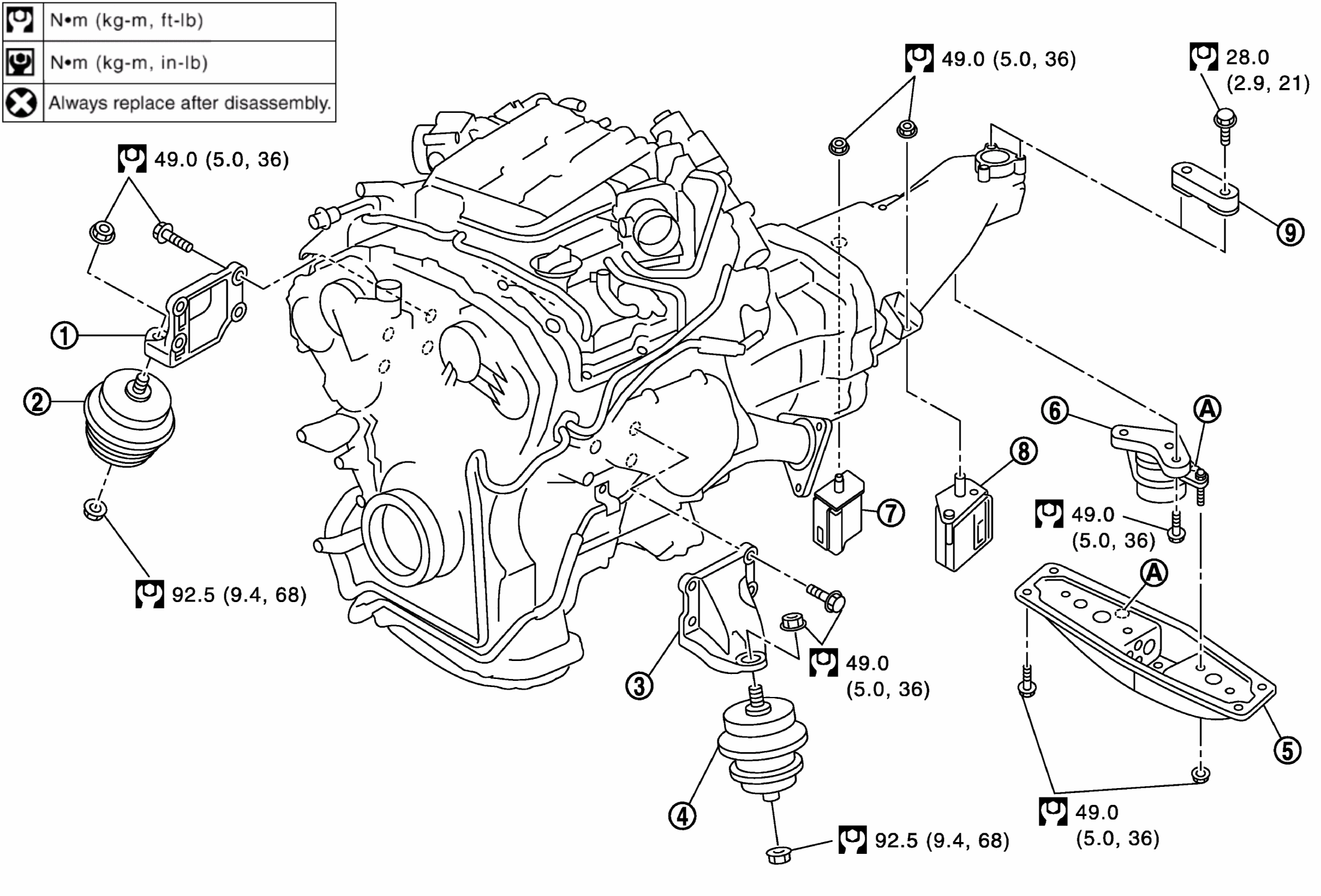

Fig 1: Exploded View Of Engine Assembly With Torque Specifications
GNSJPBIA2869GB-869Courtesy of NISSAN NORTH AMERICA, INC.
1. Engine mounting bracket (RH) 2. Engine mounting insulator (RH) 3. Engine mounting bracket (LH)
4. Engine mounting insulator (LH) 5. Rear engine mounting member 6. Engine mounting insulator (rear)
7. Dynamic damper (RH) (M/T models) 8. Dynamic damper (LH) (M/T models) 9. Dynamic damper (A/T models)
A. Front mark
Refer to COMPONENTS for symbols in the figure.
