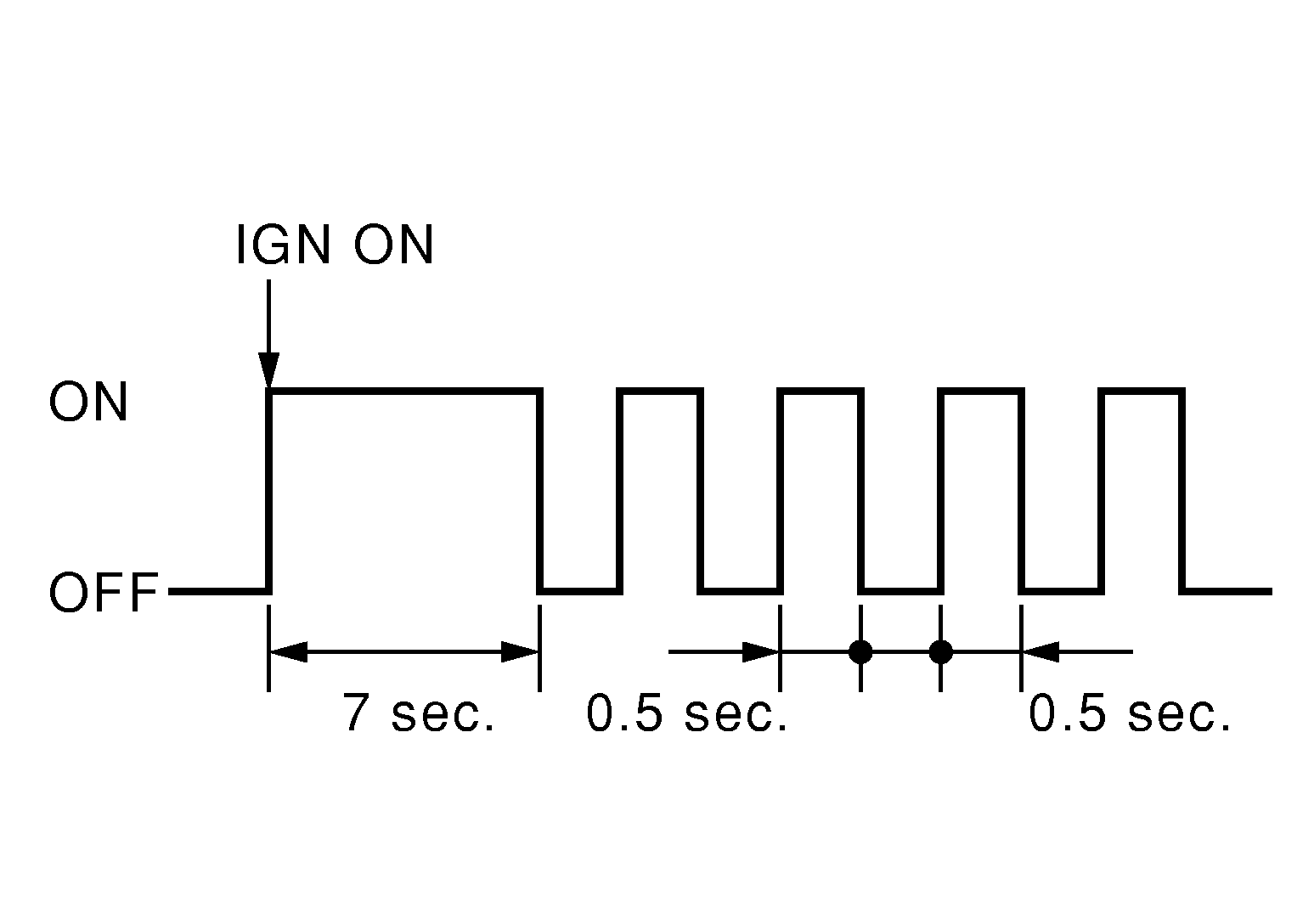

Seat Belt Warning Lamp Examples

Seat belt warning lamp operation	Condition	Reference item
Courtesy of NISSAN NORTH AMERICA, INC.	No malfunction is detected	-
Courtesy of NISSAN NORTH AMERICA, INC.	Pre-crash seat belt system is malfunctioning	Check "CAUSE OF WARNING" in "Special Function" with CONSULT. Refer to CONSULT FUNCTION
Courtesy of NISSAN NORTH AMERICA, INC.	Seat belt is not fastened	-
Courtesy of NISSAN NORTH AMERICA, INC.	Pre-crash seat belt control unit is malfunctioning Seat belt warning lamp circuit is malfunctioning	Refer to DIAGNOSIS PROCEDURE
