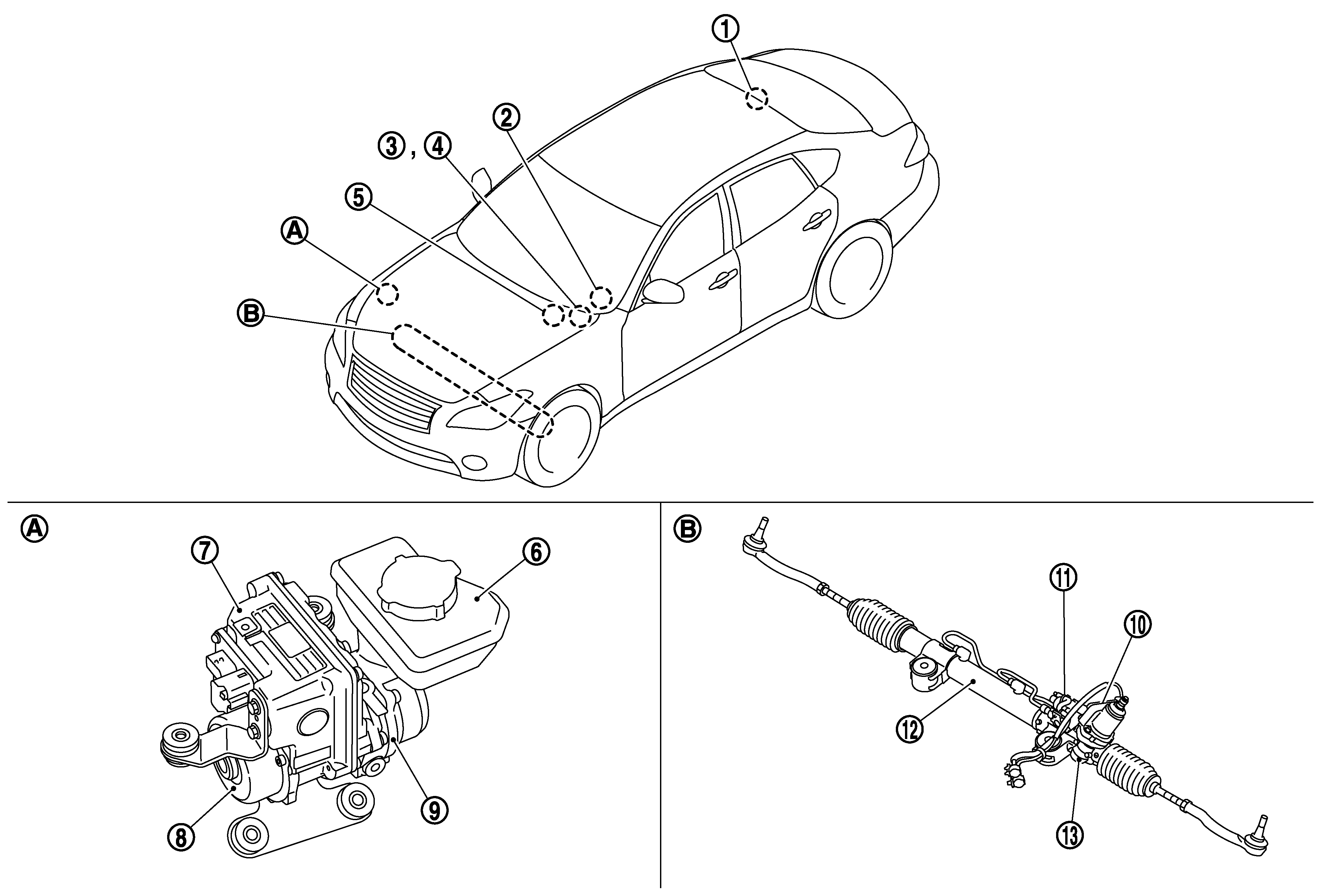

| 1. |
HPCM |
Transmits mainly the following signal to power steering control module via CAN communication.
- Power steering start activation request signal
|
| 2. |
Steering angle sensor |
Transmits mainly the following signals to power steering control module via CAN communication.
- Steering angle sensor signal
- Steering angle sensor malfunction signal
|
| 3. |
Combination meter |
Transmits mainly the following signals to power steering control module via CAN communication.
- Vehicle speed signal (METER)
- Odometer signal
|
| The Hybrid EPS (Electrical Power Steering) warning lamp turns ON according to the signal received by CAN communication from the power steering control module. |
| 4. |
Hybrid EPS (Electrical Power Steering) warning lamp |
SYSTEM DESCRIPTION |
| 5. |
ABS actuator and electric unit (control unit) |
Transmits mainly the following signals to power steering control module via CAN communication.
- Vehicle speed signal (ABS)
- Decel G sensor signal
- Yaw rate signal
- Brake switch signal
- VDC malfunction signal
|
| 6. |
Power steering oil pump assembly |
Reservoir tank |
POWER STEERING OIL PUMP ASSEMBLY |
| 7. |
Power steering control module |
| 8. |
Power steering motor |
| 9. |
Power steering oil pump |
| 10. |
Steering gear assembly |
Torque sensor |
STEERING GEAR ASSEMBLY |
| 11. |
Flow connection valve |
| 12. |
Cylinder |
| 13. |
Steering gear |
