Circuit Diagram

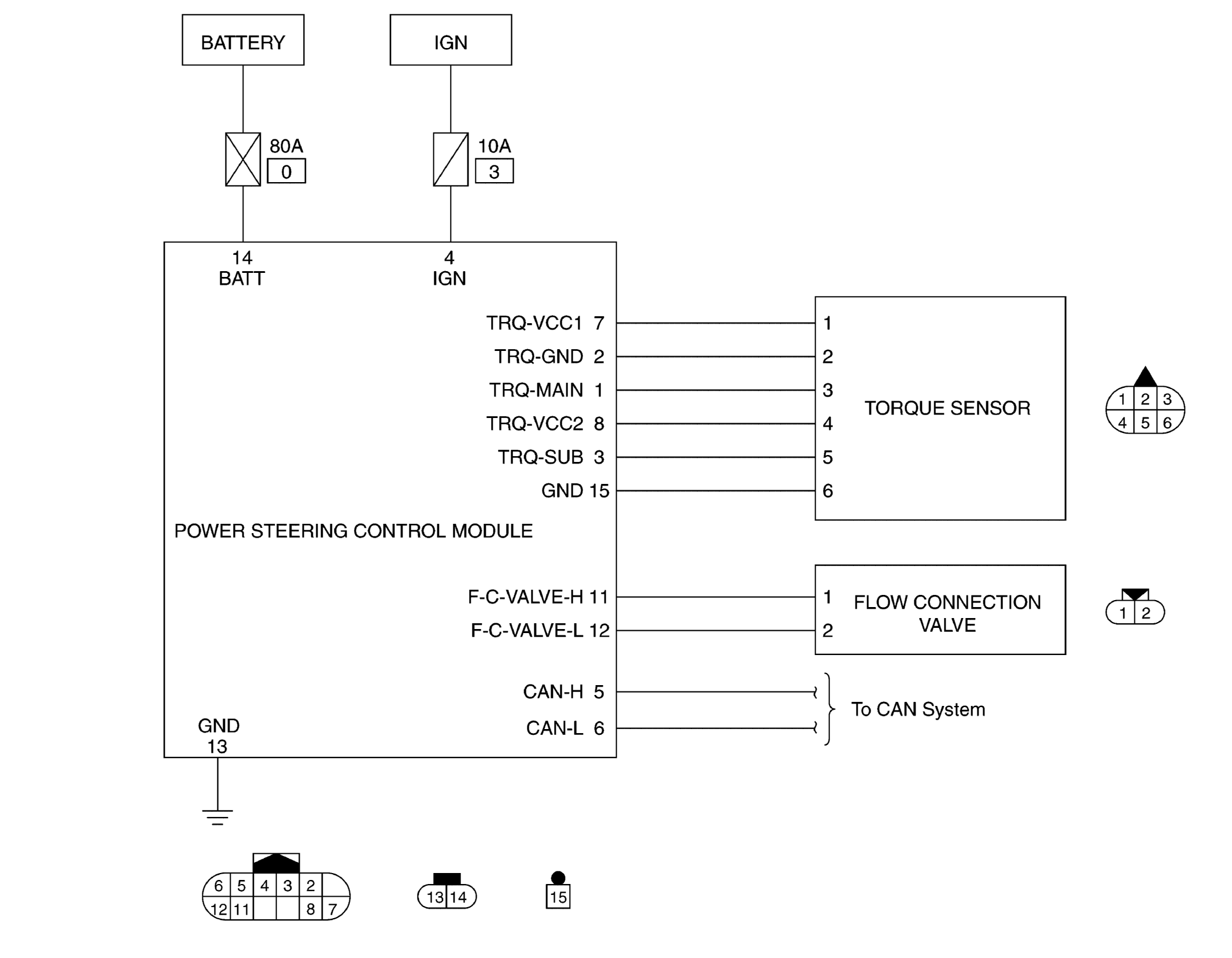

Fig 1: Hybrid EPS System -- Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
