Intelligent Key System Connector End Views

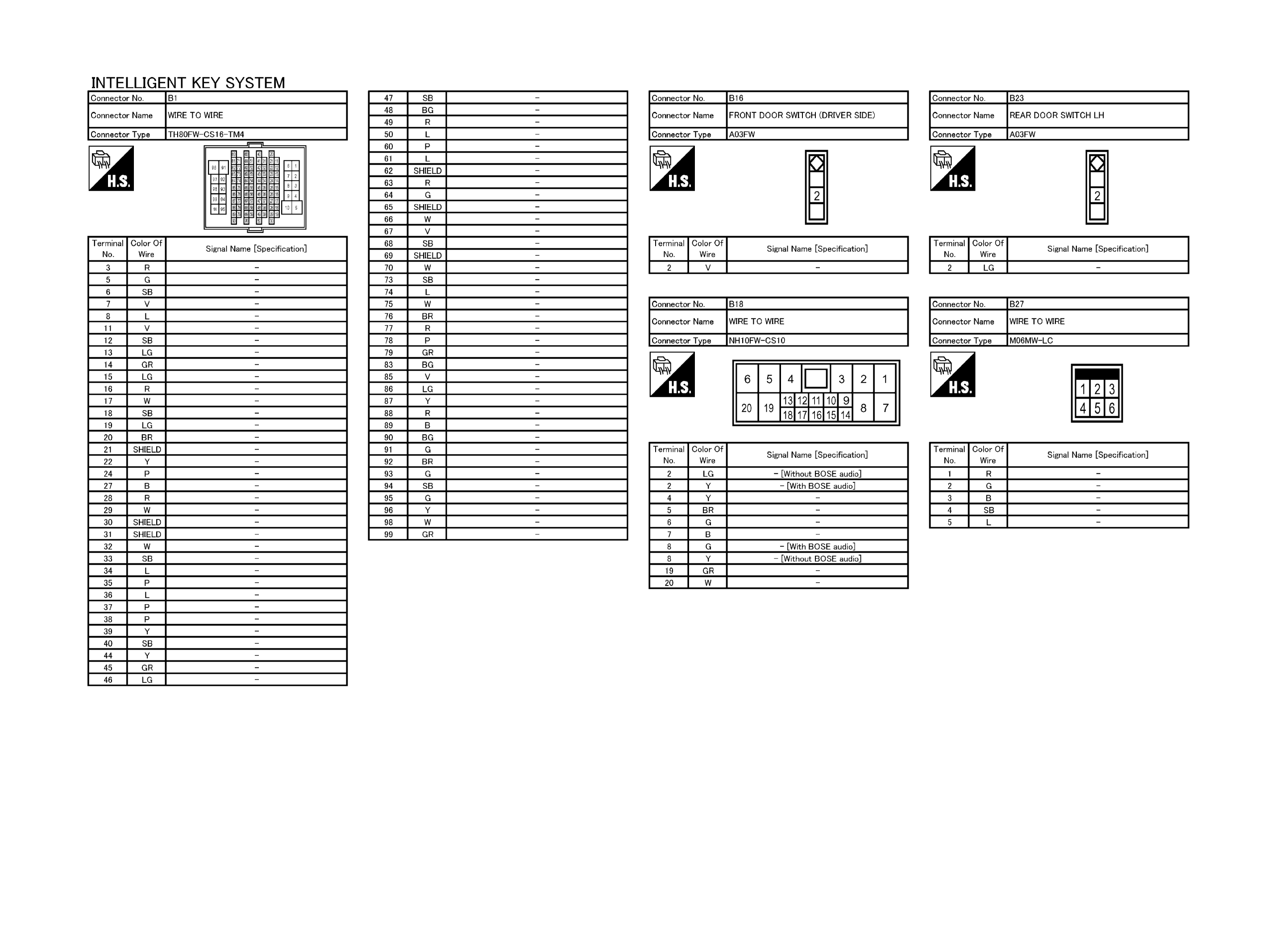

Fig 1: Intelligent Key System Connector End Views (1 Of 12)
GNSJRKWD4903GB-903Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System Connector End Views (2 Of 12)
GNSJRKWD4904GB-904Courtesy of NISSAN NORTH AMERICA, INC.

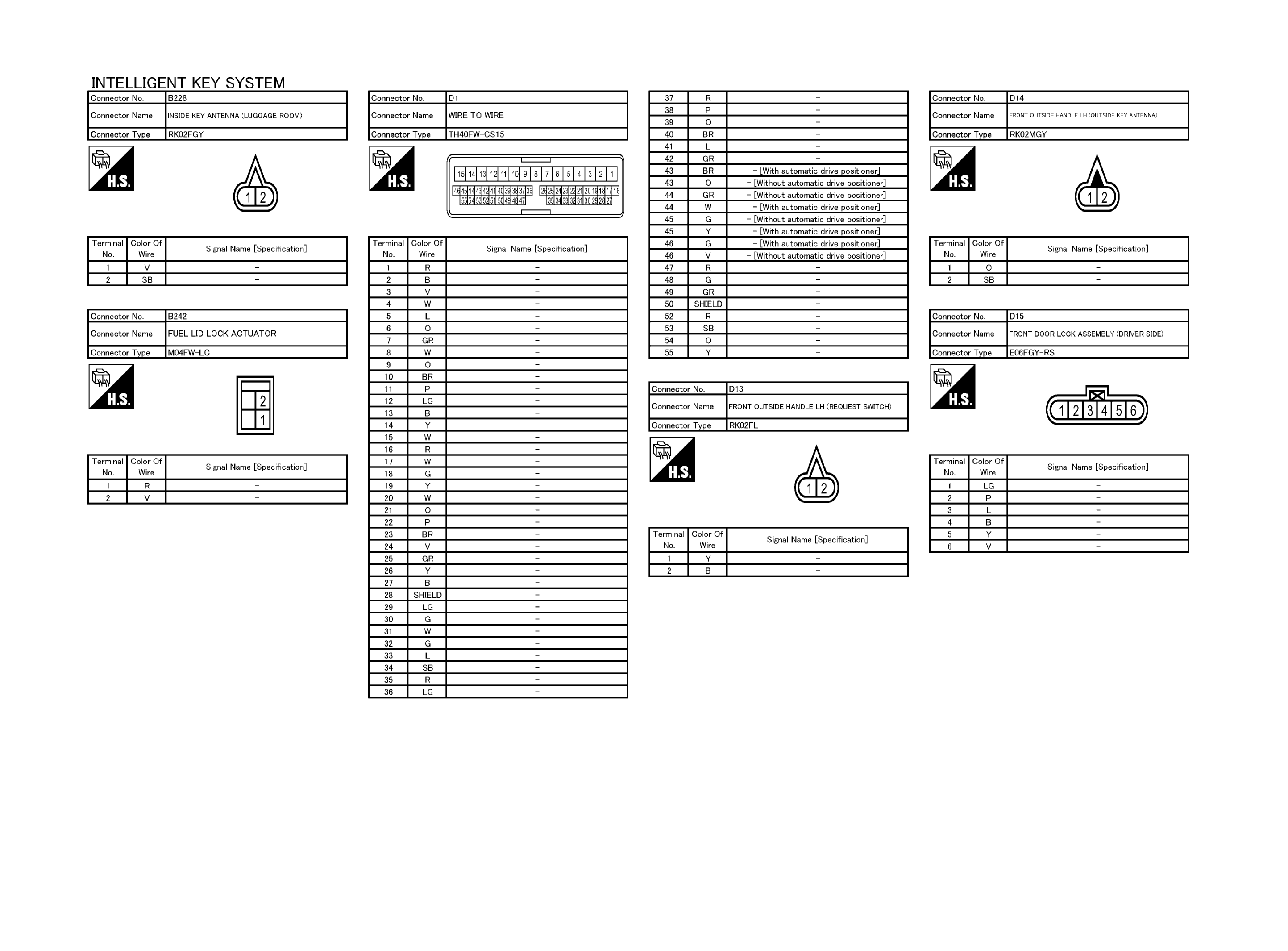

Fig 3: Intelligent Key System Connector End Views (3 Of 12)
GNSJRKWD4905GB-905Courtesy of NISSAN NORTH AMERICA, INC.

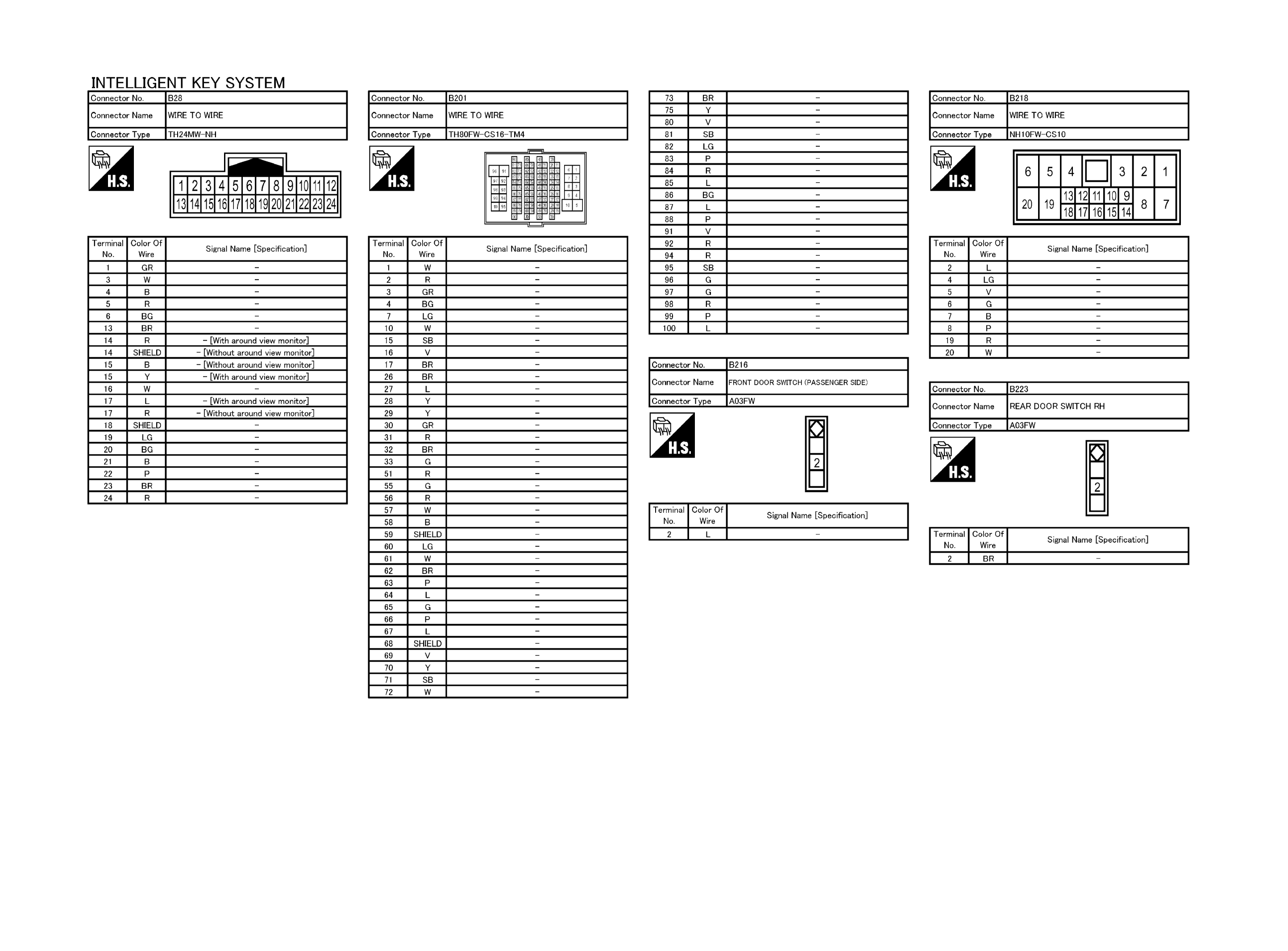

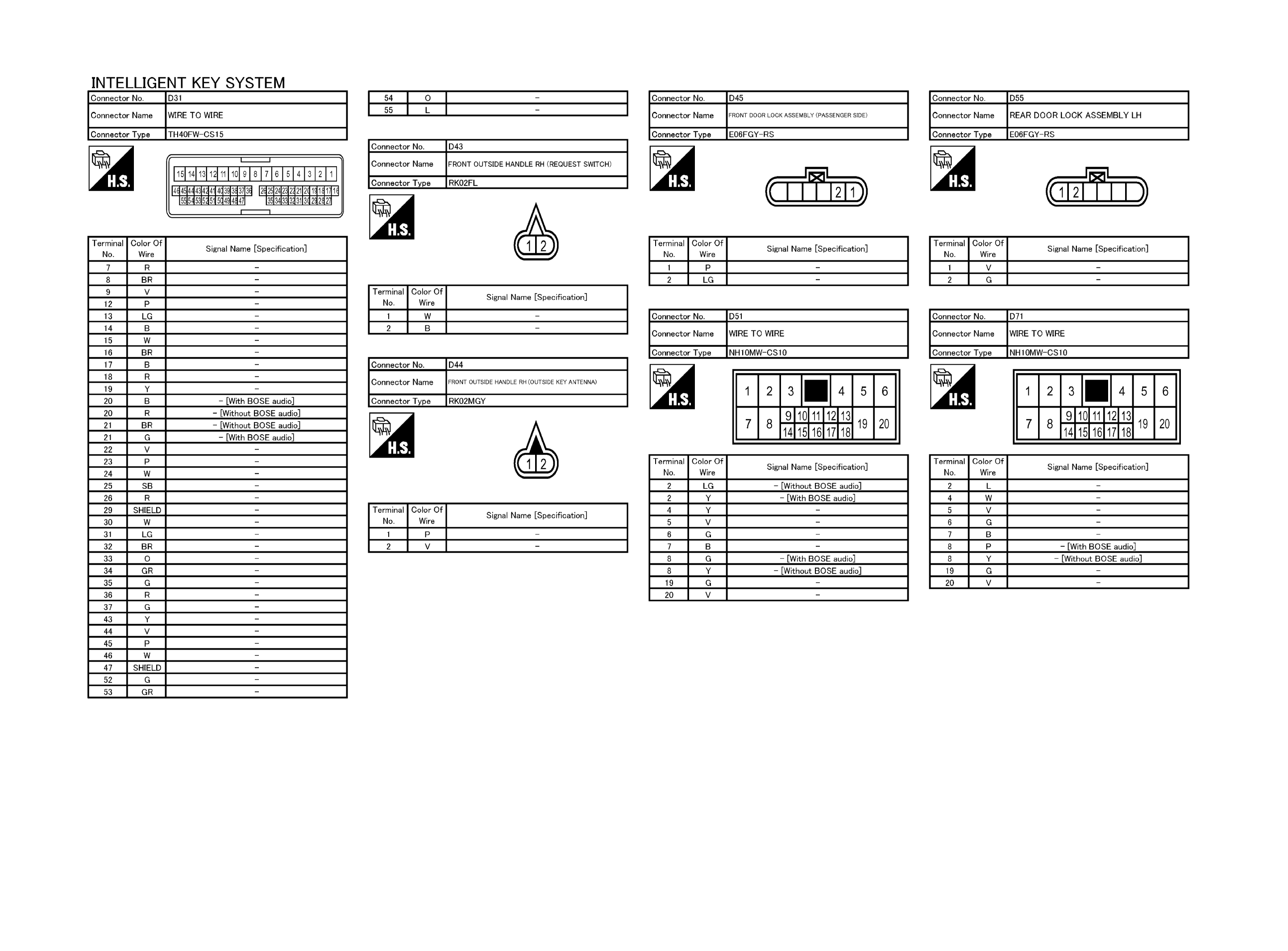

Fig 4: Intelligent Key System Connector End Views (4 Of 12)
GNSJRKWD4906GB-906Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Intelligent Key System Connector End Views (5 Of 12)
GNSJRKWD4907GB-907Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Intelligent Key System Connector End Views (6 Of 12)
GNSJRKWD4908GB-908Courtesy of NISSAN NORTH AMERICA, INC.

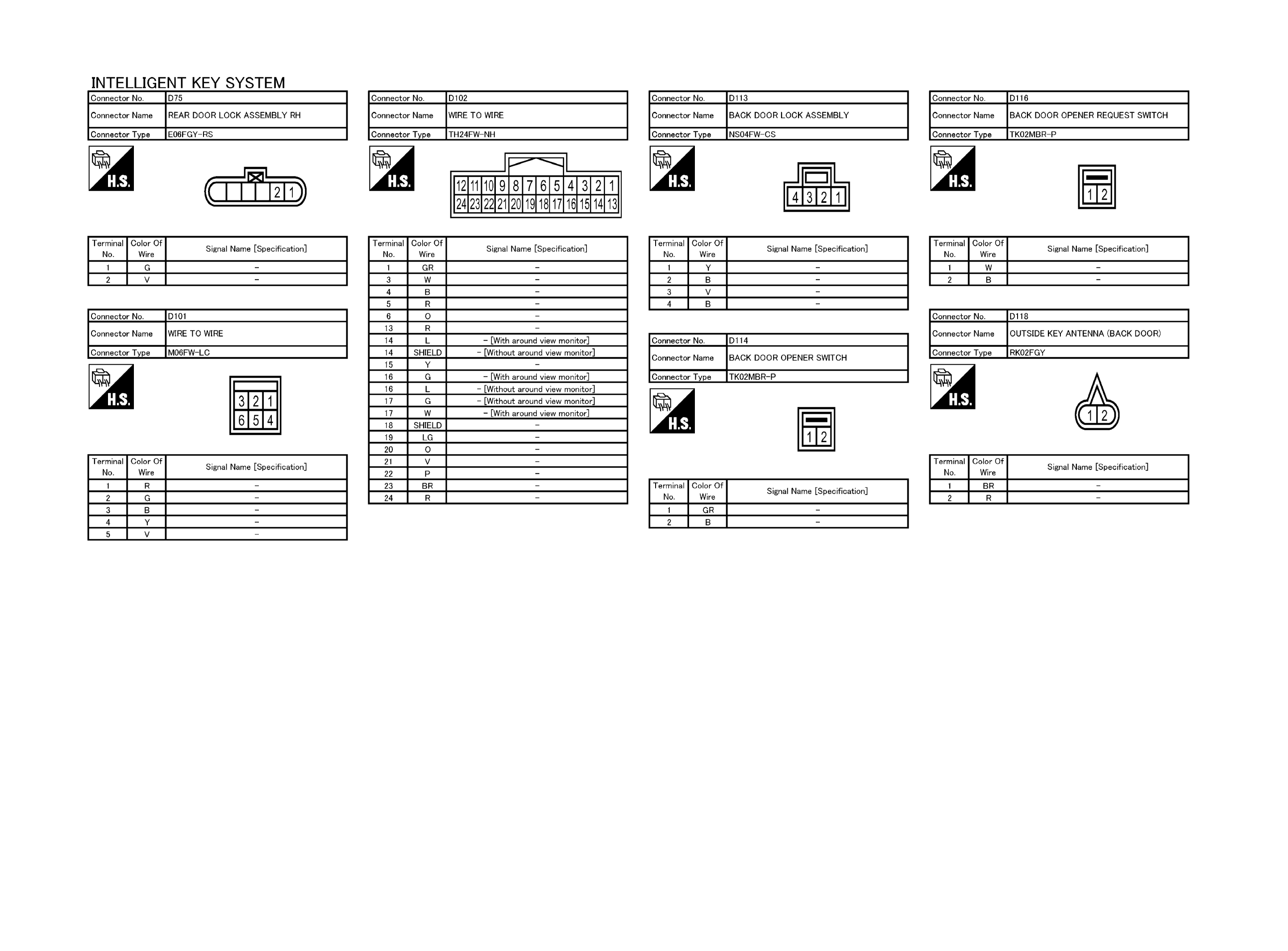

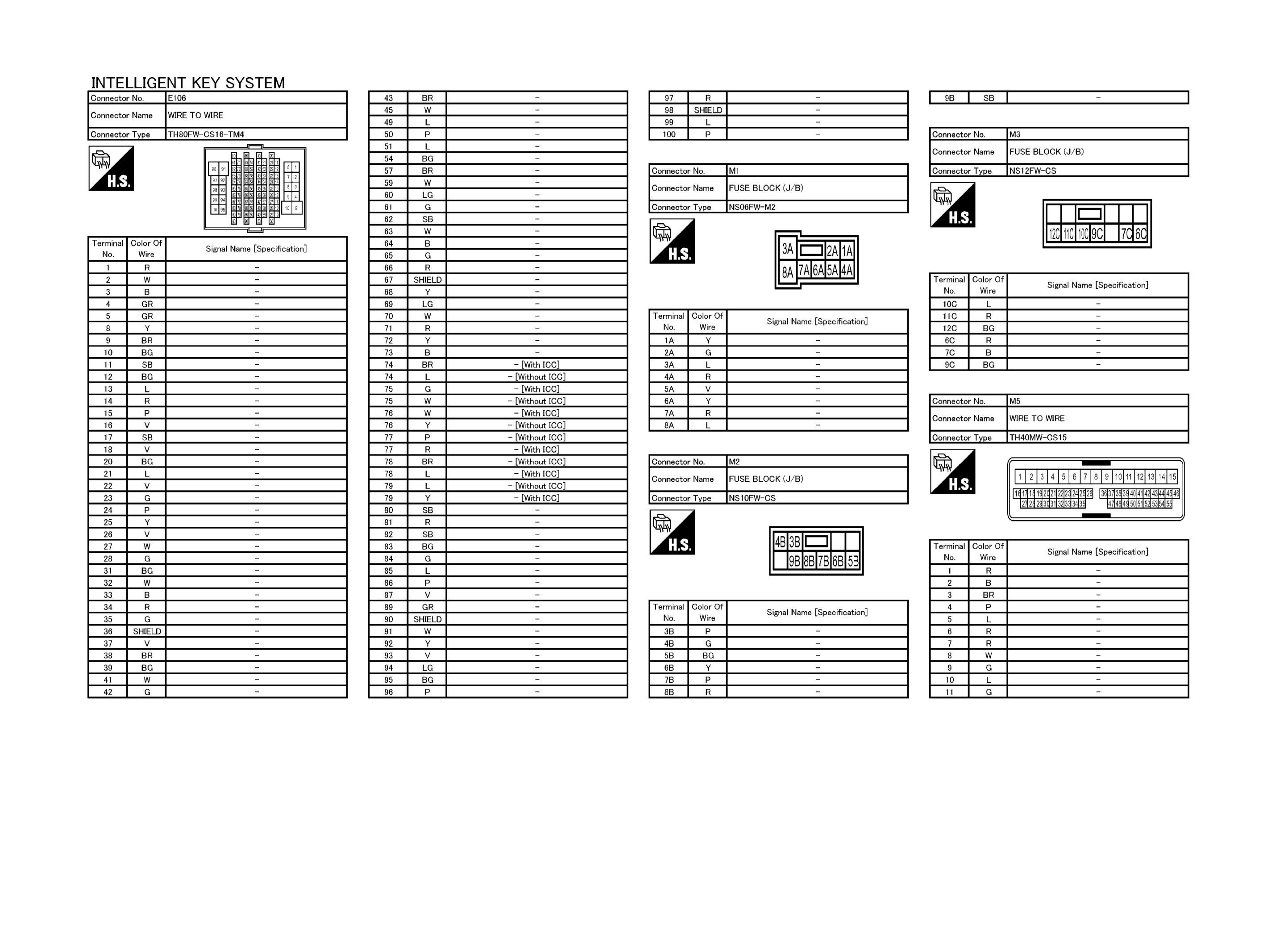

Fig 7: Intelligent Key System Connector End Views (7 Of 12)
GNSJRKWD4909GB-909Courtesy of NISSAN NORTH AMERICA, INC.

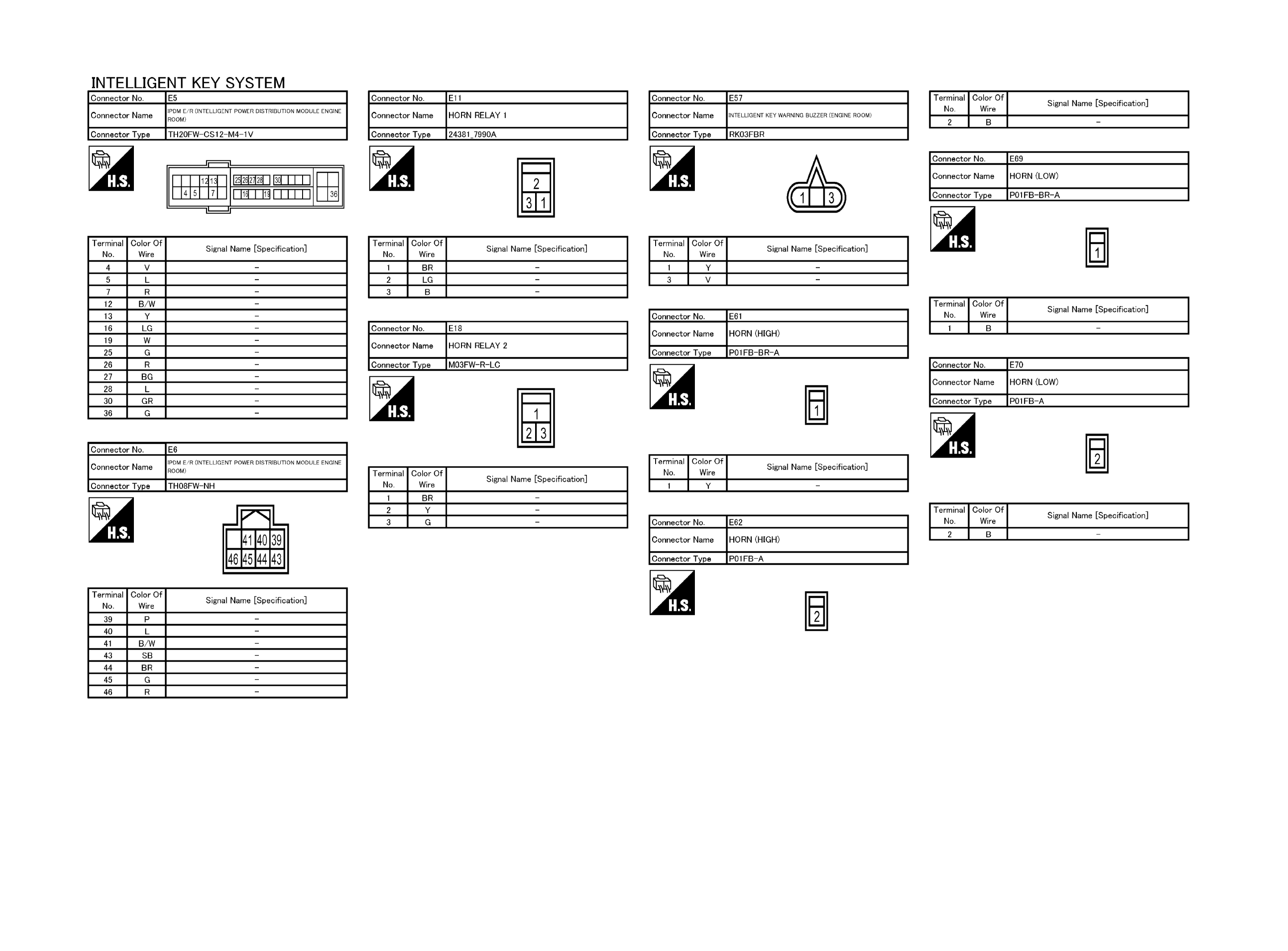

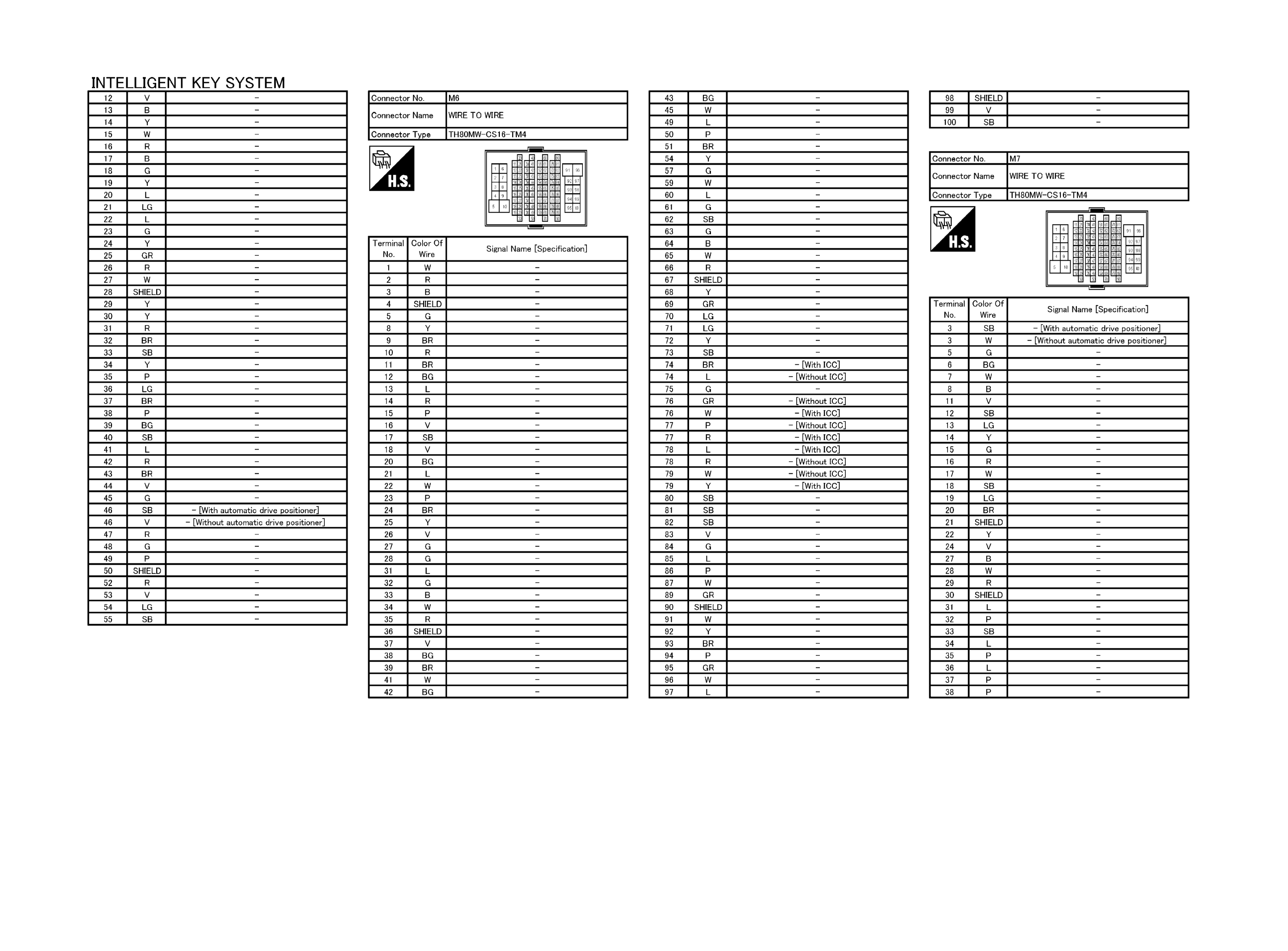

Fig 8: Intelligent Key System Connector End Views (8 Of 12)
GNSJRKWD4910GB-910Courtesy of NISSAN NORTH AMERICA, INC.

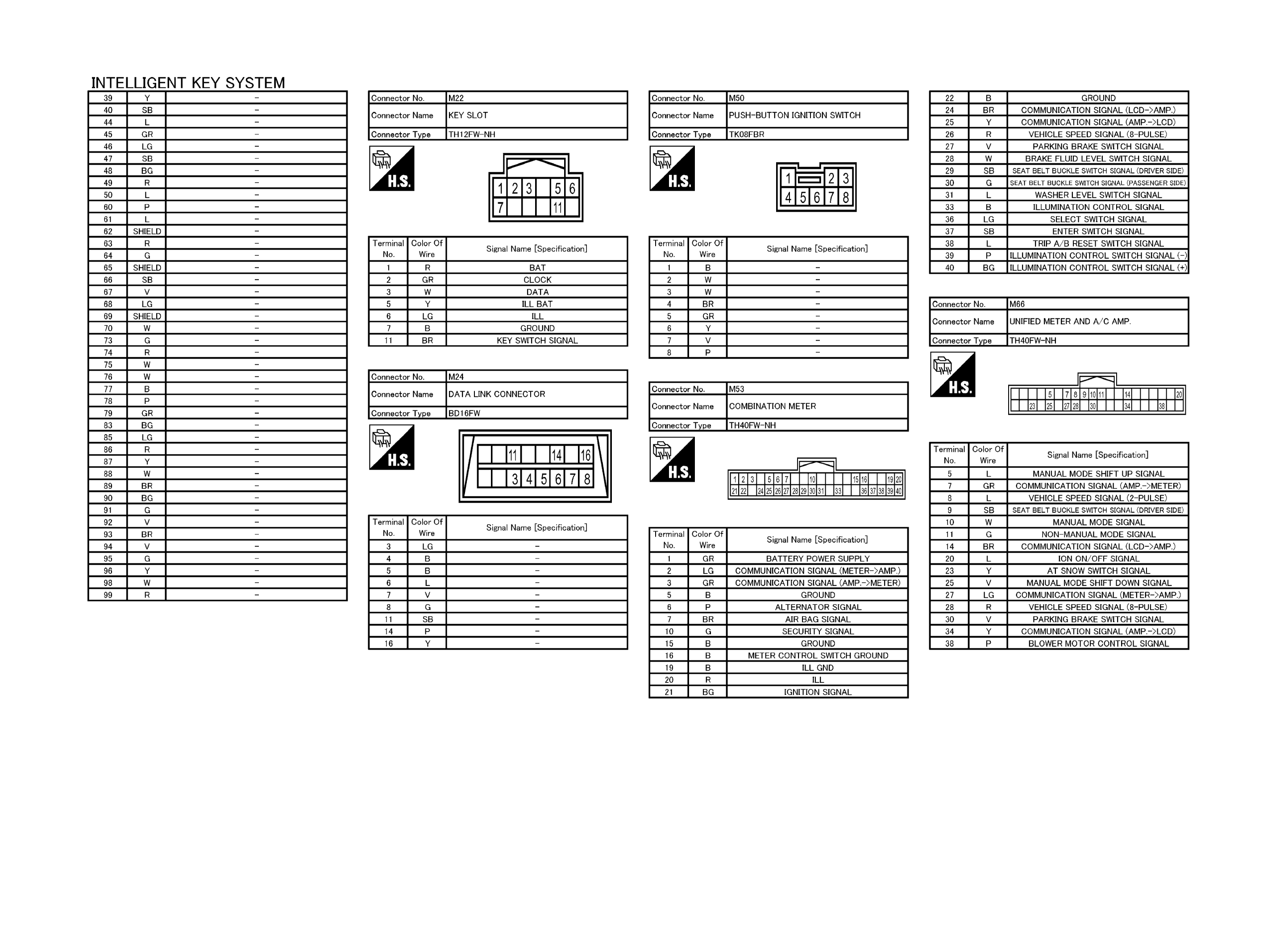

Fig 9: Intelligent Key System Connector End Views (9 Of 12)
GNSJRKWD4911GB-911Courtesy of NISSAN NORTH AMERICA, INC.

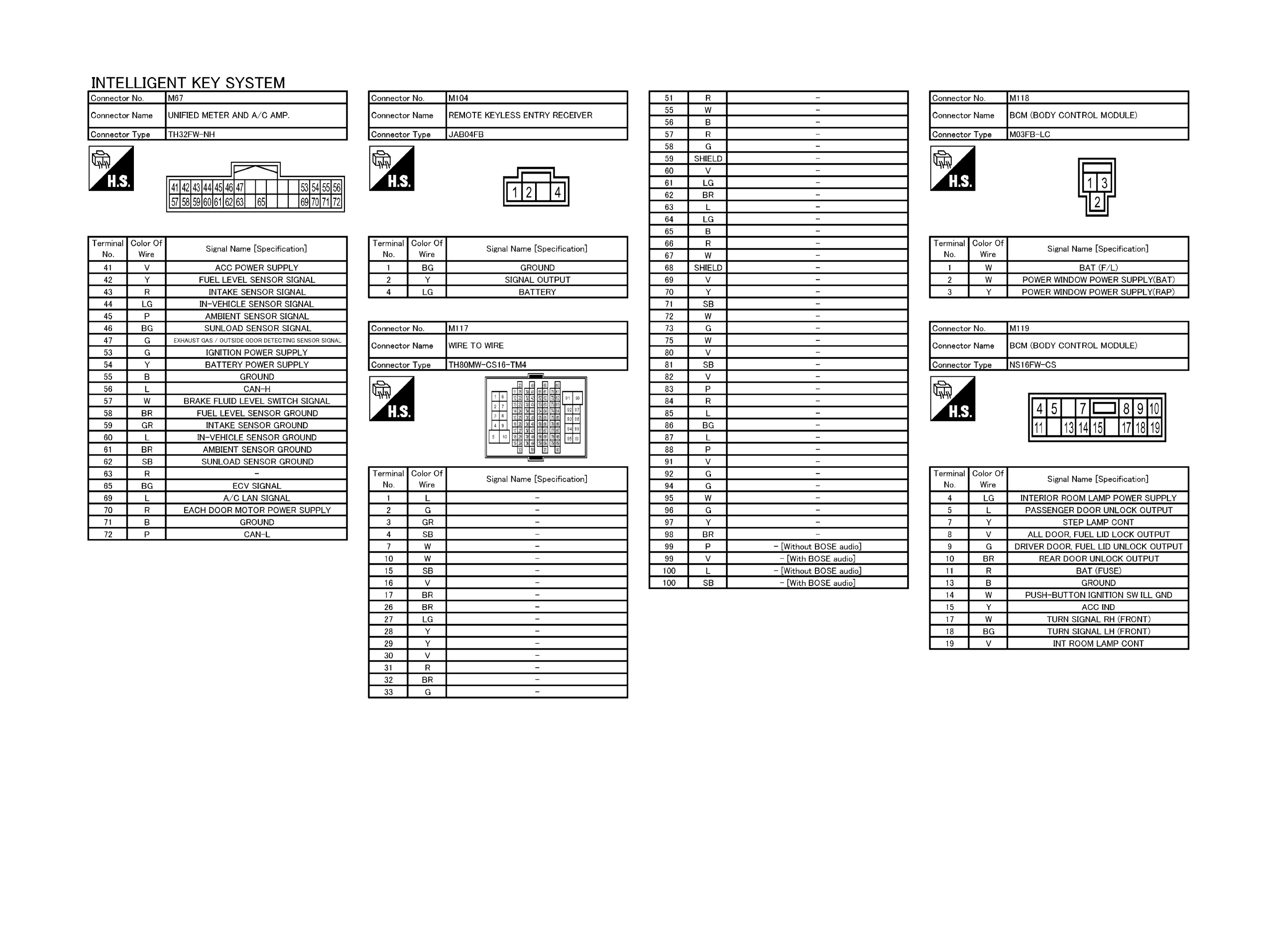

Fig 10: Intelligent Key System Connector End Views (10 Of 12)
GNSJRKWD4912GB-912Courtesy of NISSAN NORTH AMERICA, INC.

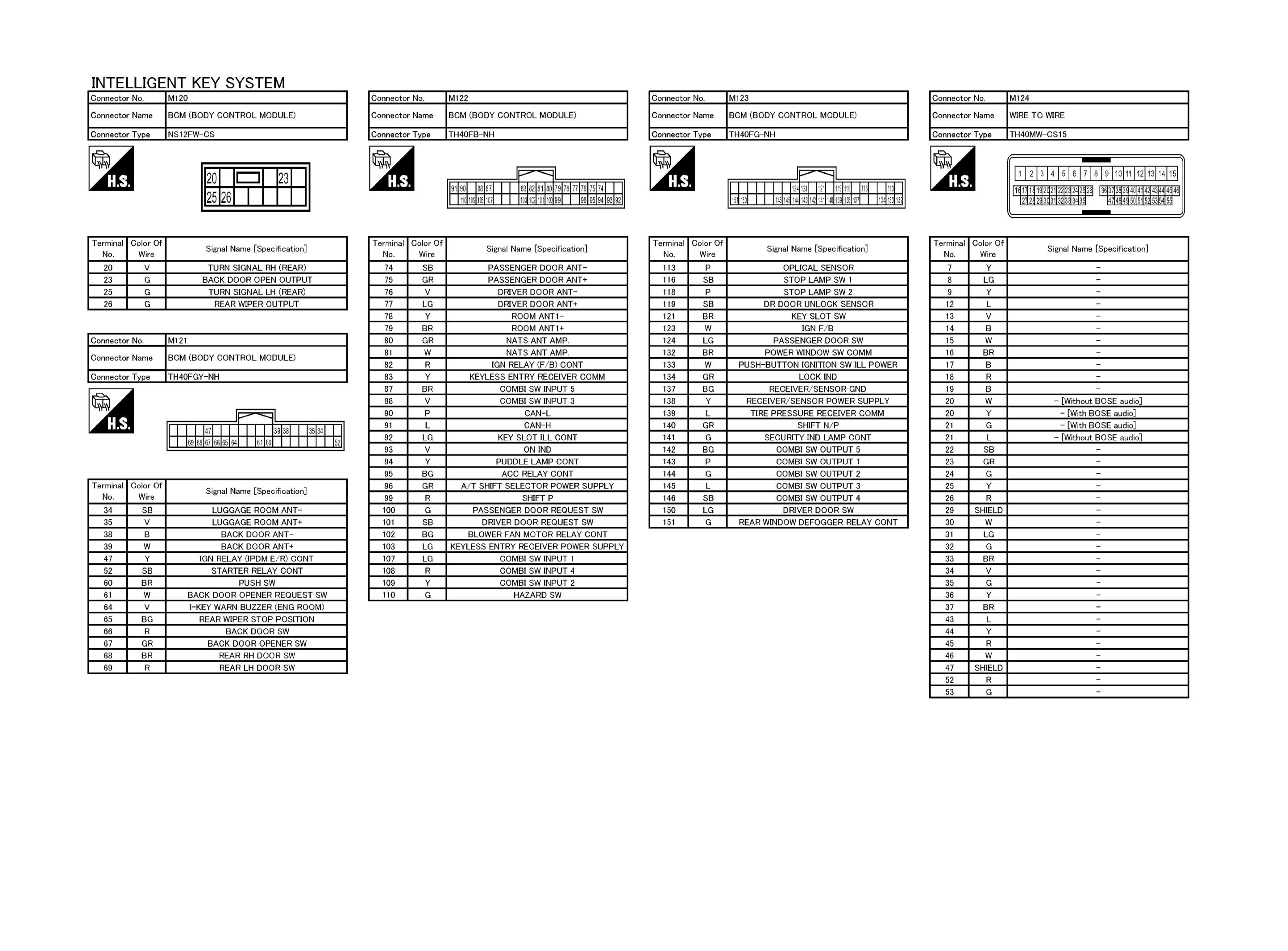

Fig 11: Intelligent Key System Connector End Views (11 Of 12)
GNSJRKWD4913GB-913Courtesy of NISSAN NORTH AMERICA, INC.

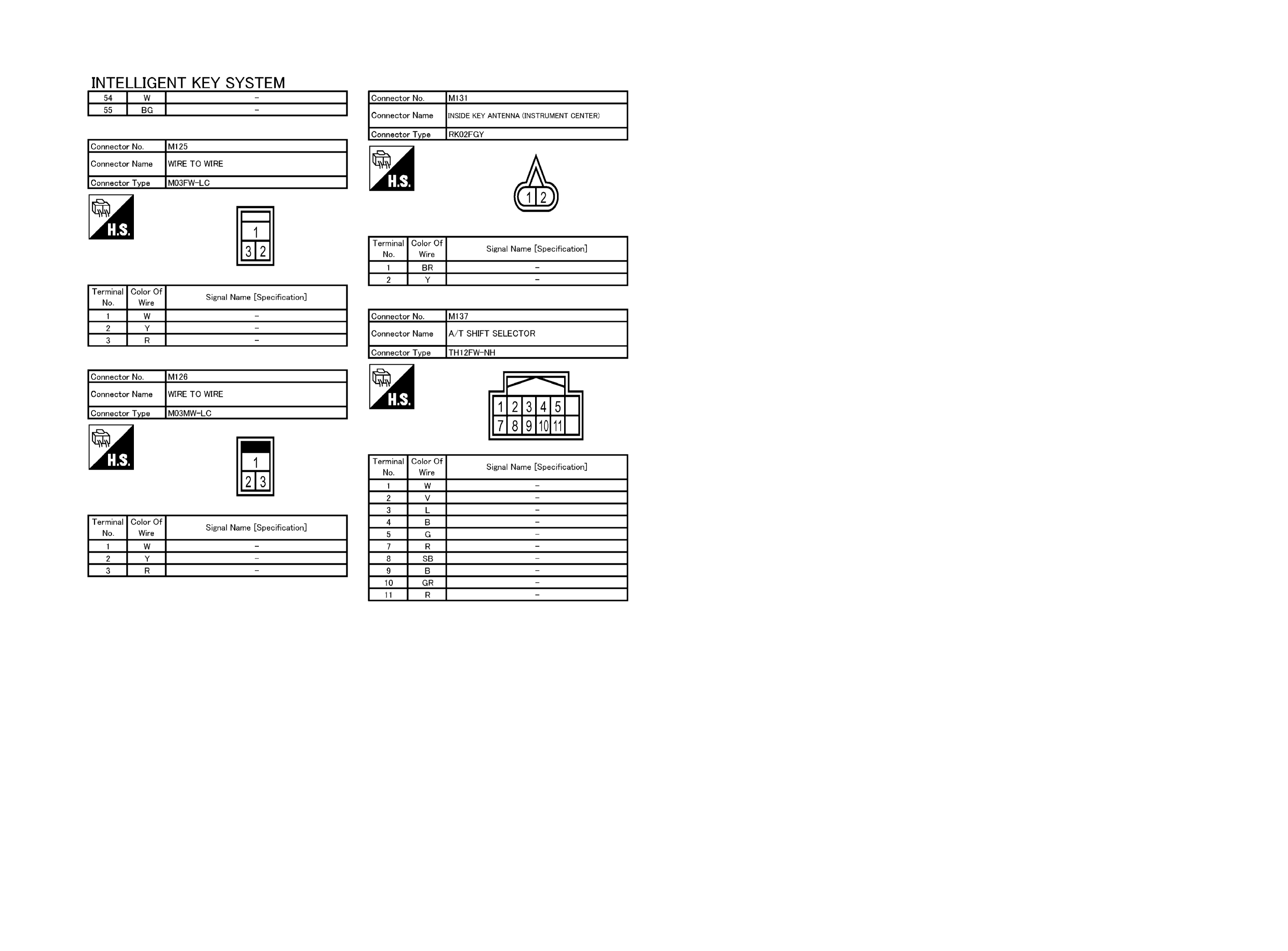

Fig 12: Intelligent Key System Connector End Views (12 Of 12)
GNSJRKWD4914GB-914Courtesy of NISSAN NORTH AMERICA, INC.
