Component Parts Location

Fig 1: Door Lock Function Component Parts Location (1 Of 2)
GNSJMKIA2222ZZ-222Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM M118, M119, M120, M121, M122, M123 2. Combination meter M53 3. Key slot M22
4. IPDM E/R E5, E6 5. Remote key less entry receiver M104 6. A/T shift selector (detention switch) M137
7. Front door switch (driver side) B16 8. Front door lock assembly (driver side) D15 9. Fuel lid lock actuator B242
10. Back door opener switch D114 11. Horn (high) E61, E62 12. Horn (low) E69, E70
13. Intelligent Key warning buzzer E57
A. Dash side lower (passenger side) B. Engine room dash panel (RH) C. Behind the instrument lower panel (driver side)
D. View with center console assembly removed E. View with front door finisher (LH) is removed F. View luggage side finisher lower (RH) is removed
G. View with front bumper is removed

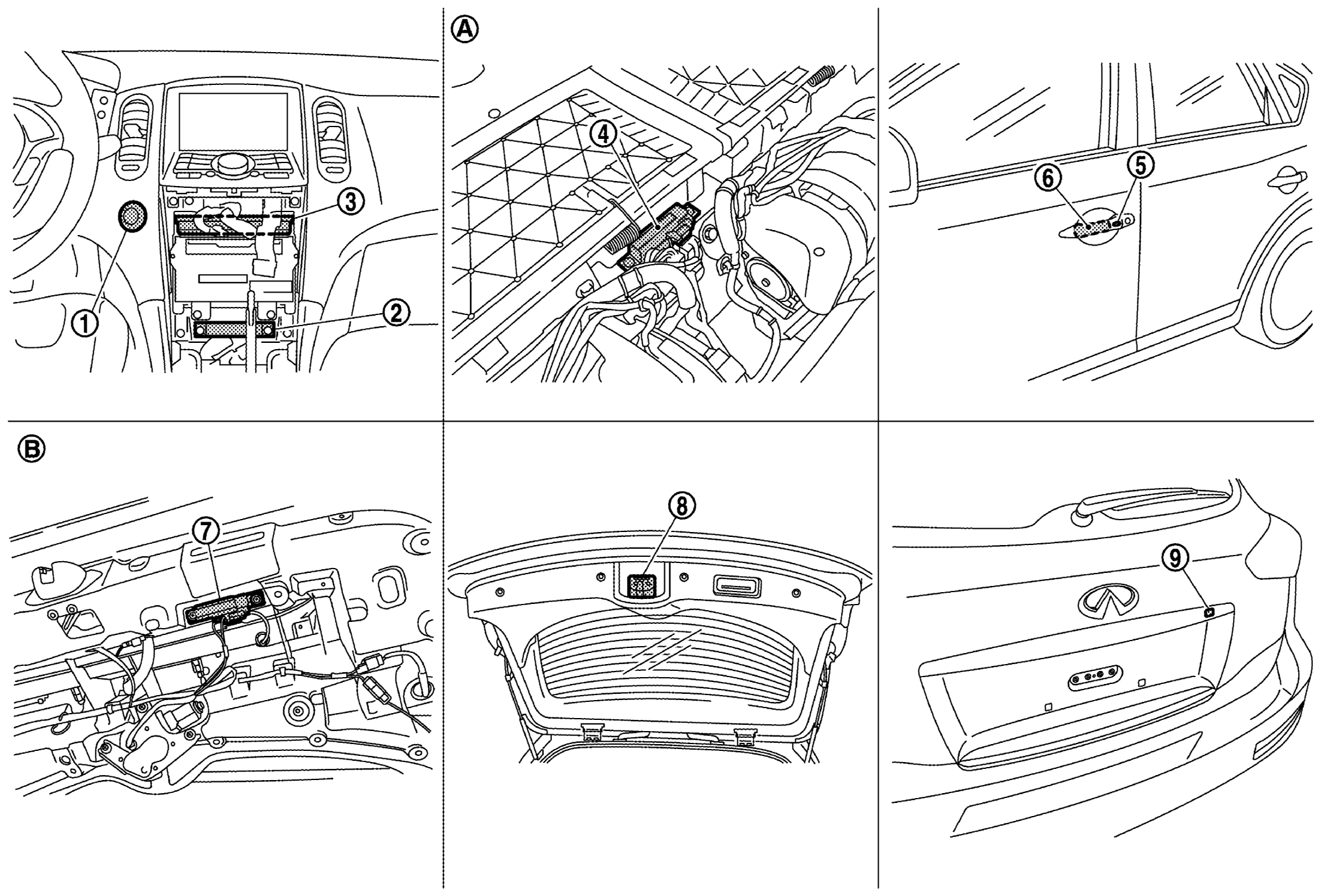

Fig 2: Door Lock Function Component Parts Location (2 Of 2)
GNSJMKIB0503ZZ-503Courtesy of NISSAN NORTH AMERICA, INC.
1. Push-button ignition switch (push switch) M50 2. Inside key antenna (instrument center) M131 3. Unified meter and A/C amp. M66, M67
4. Inside key antenna (luggage room) B228 5. Front outside handle LH (request switch) D13 6. Front outside handle LH (outside key antenna) D14
7. Outside key antenna (back door) D118 8. Back door lock assembly D113 9. Back door request switch D116
A. View with luggage floor finisher front is removed B. View with back door finisher inner is removed
