Vehicle Equipment Identification Information

NOTE:

Check CAN system type from the vehicle shape and equipment.

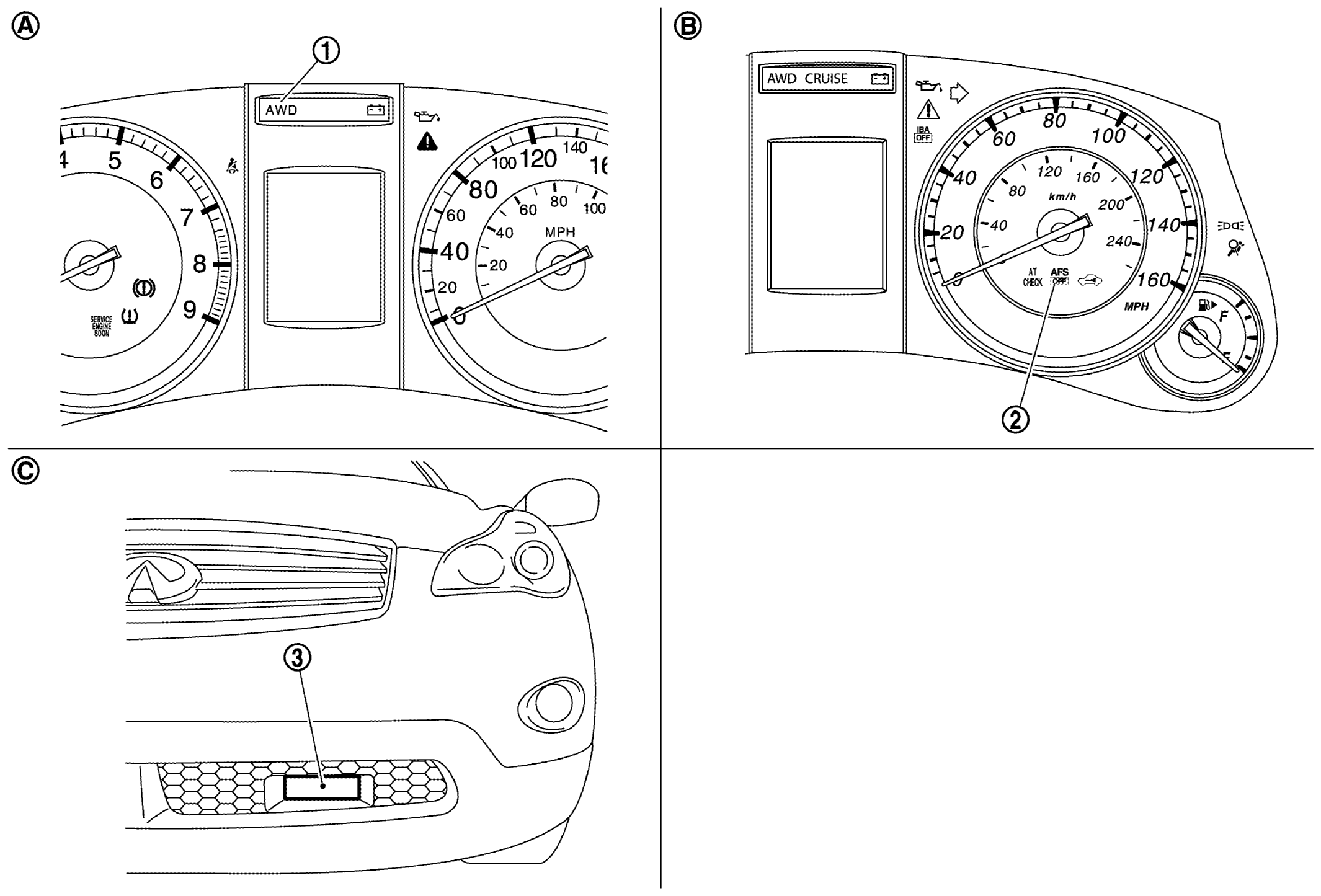

Fig 1: Identifying CAN System Type
GNSJSMIA0631ZZ-631Courtesy of NISSAN NORTH AMERICA, INC.
1. AWD warning lamp 2. AFS OFF indicator lamp 3. ICC sensor integrated unit
A. AWD models B. With active AFS C. With ICC system
