Display And Warning Operation

Vehicle condition/ Driver's operation				Action
Warning systems ON indicator	Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle detection within detection area	Indication on the BSW indicator	Buzzer
OFF	-	-	-	OFF	OFF
ON	Less than approx. 29 (18)	-	-	OFF	OFF
	Approx. 32 (20) or more	-	Vehicle is absent	OFF	OFF
		OFF	Vehicle is detected	ON	OFF
		ON (vehicle detected direction)	Before turn signal operates Vehicle is detected	Blink Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beep Courtesy of NISSAN NORTH AMERICA, INC.
		ON (vehicle detected direction)	Vehicle is detected after turn signal operates	Blink Courtesy of NISSAN NORTH AMERICA, INC.	OFF

NOTE:

If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).

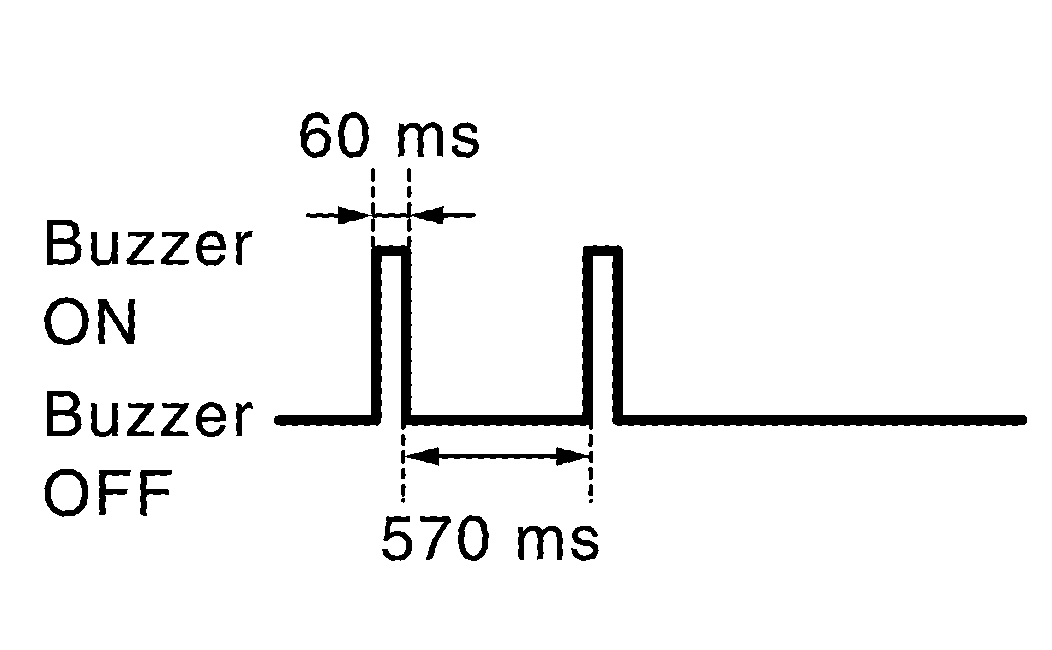

Time shown in the figure is approximate time.
