Exploded View With Torque Specifications

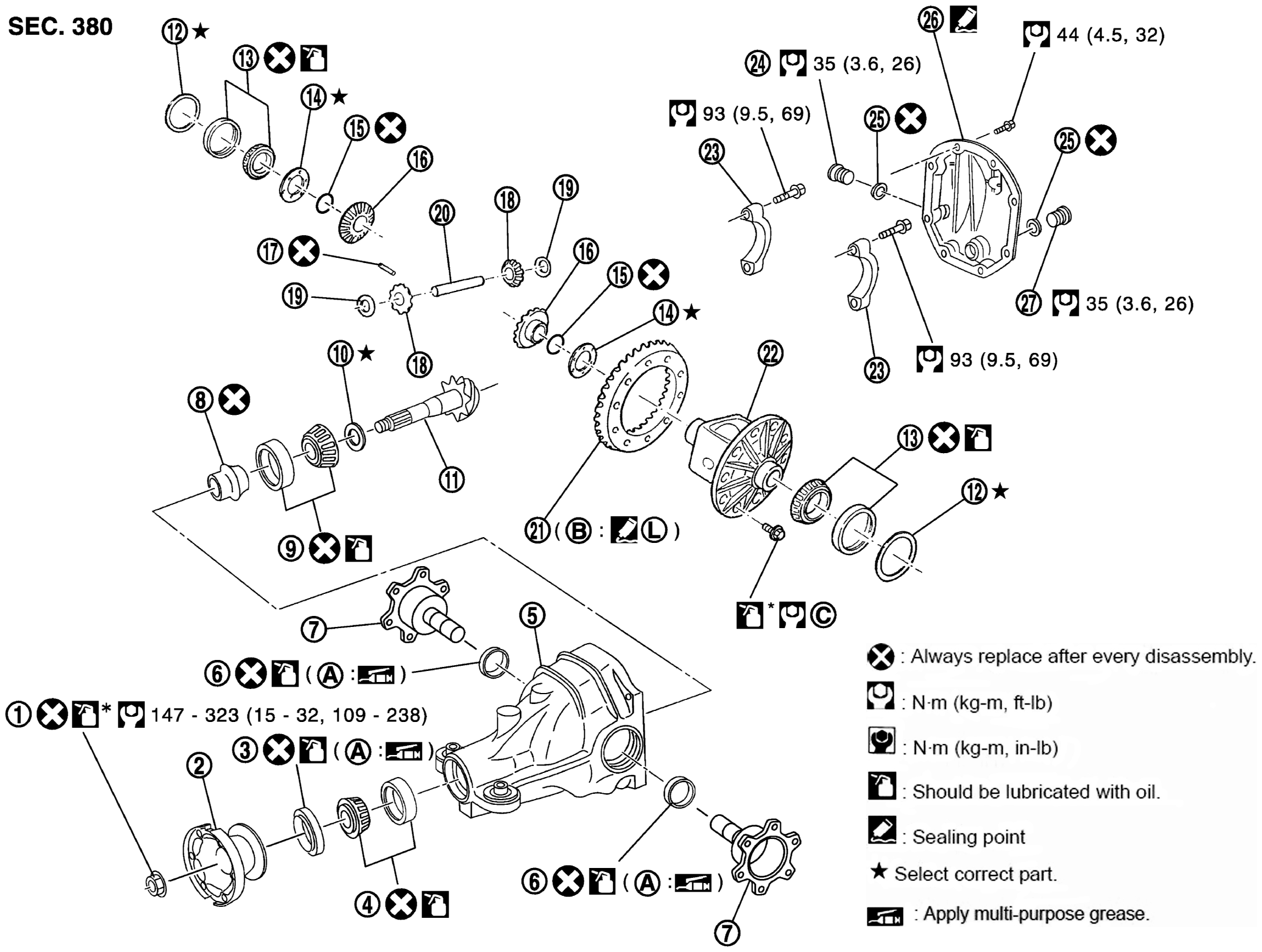

Fig 1: Exploded View Of Rear Differential Assembly With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Drive pinion lock nut	2.	Companion flange	3.	Front oil seal
4.	Pinion front bearing	5.	Gear carrier	6.	Side oil seal
7.	Side flange	8.	Collapsible spacer	9.	Pinion rear bearing
10.	Pinion height adjusting washer	11.	Drive pinion	12.	Side bearing adjusting washer
13.	Side bearing	14.	Side gear thrust washer	15.	Circular clip
16.	Side gear	17.	Lock pin	18.	Pinion mate gear
19.	Pinion mate thrust washer	20.	Pinion mate shaft	21.	Drive gear
22.	Differential case	23.	Bearing cap	24.	Filler plug
25.	Gasket	26.	Rear cover	27.	Drain plug
A.	Oil seal lip	B.	Screw hole	C.	Comply with the assembly procedure when tightening. Refer to ASSEMBLY .
Oil Can : Apply gear oil.
Oil Can* : Apply anti-corrosion oil.
Sealer : Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Sealer (L) : Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described above.
