Consult/GST Checking System Connector End Views

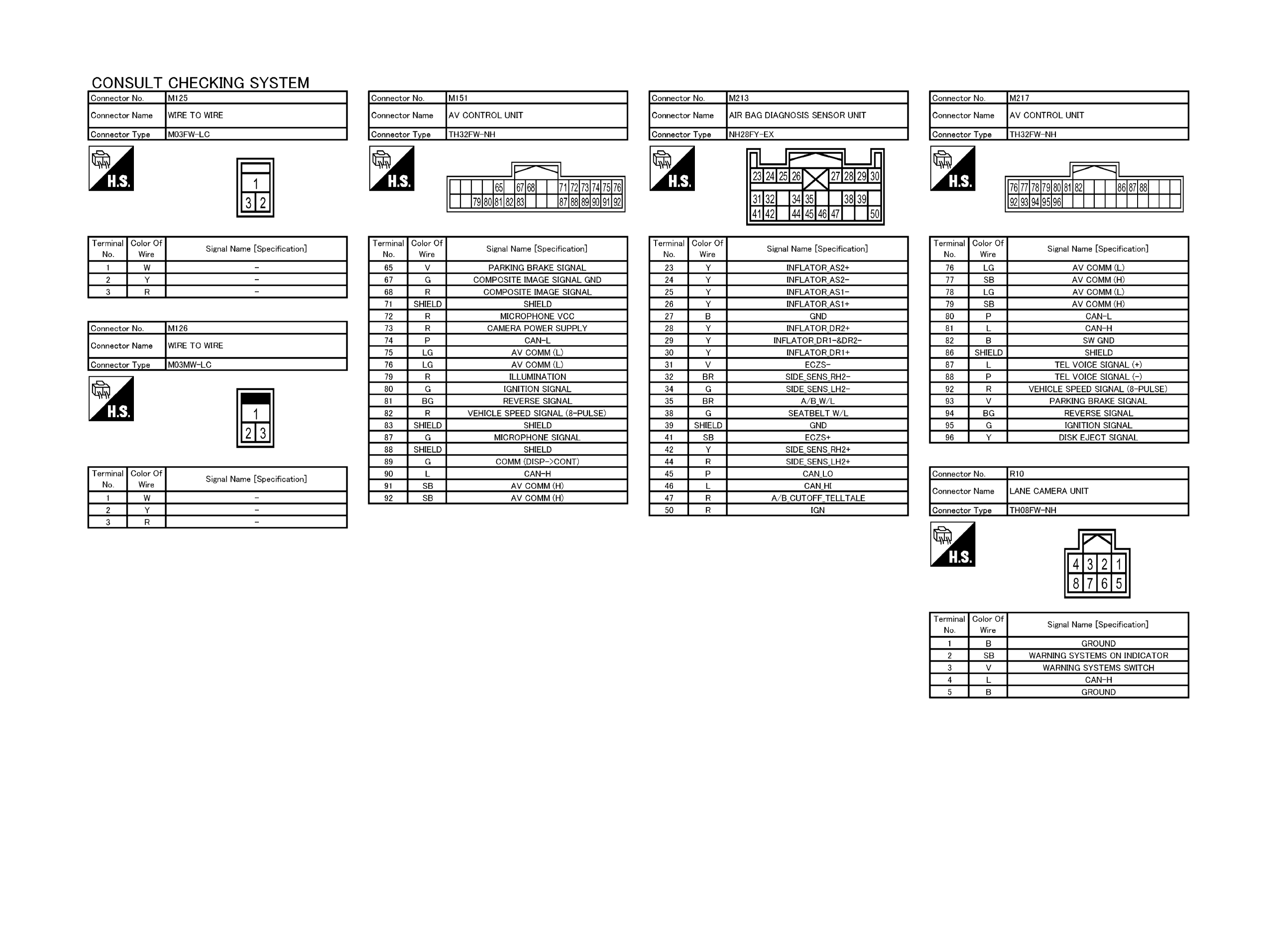

Fig 1: Consult/GST Checking System Connector End Views (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

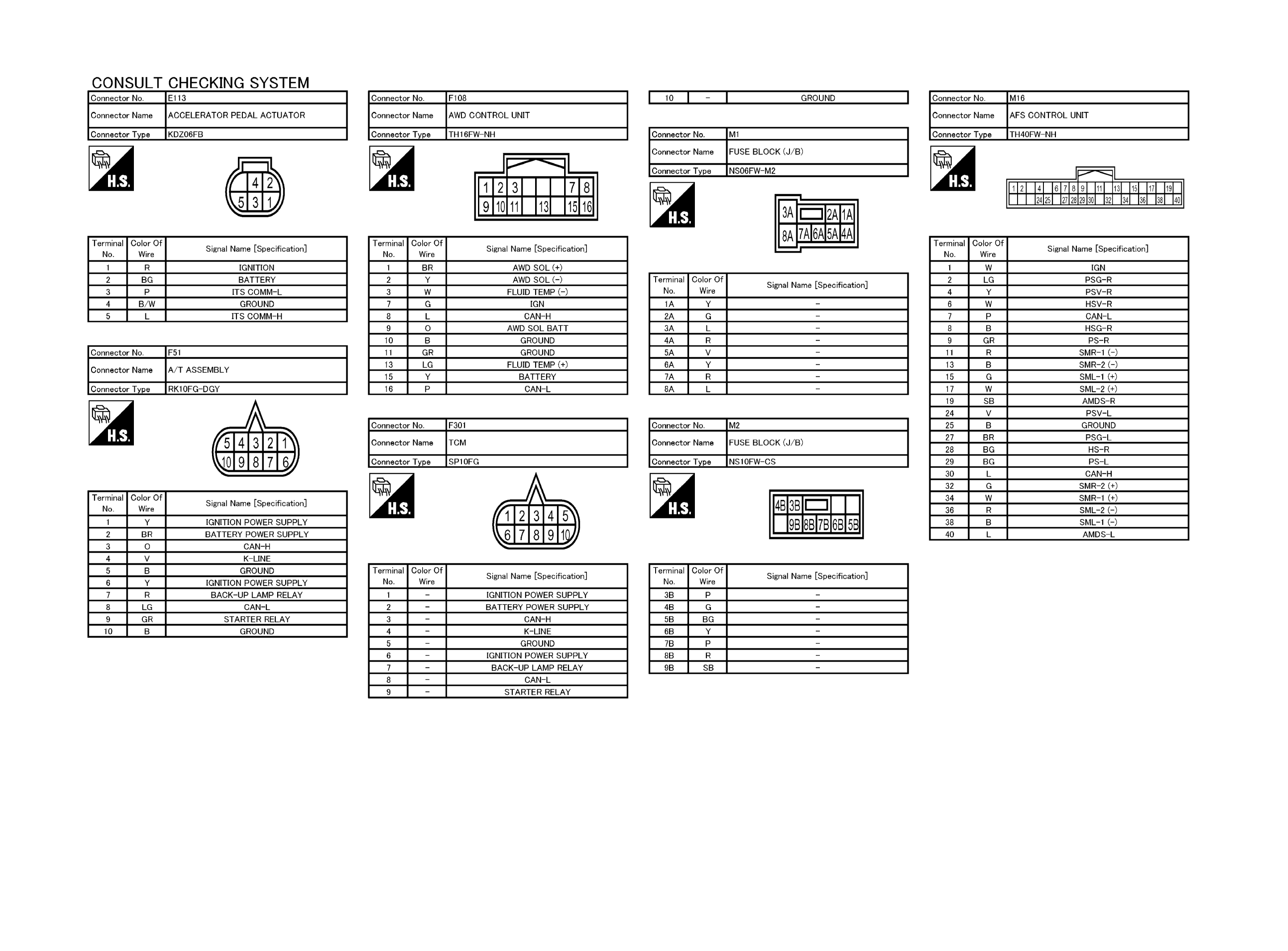

Fig 2: Consult/GST Checking System Connector End Views (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

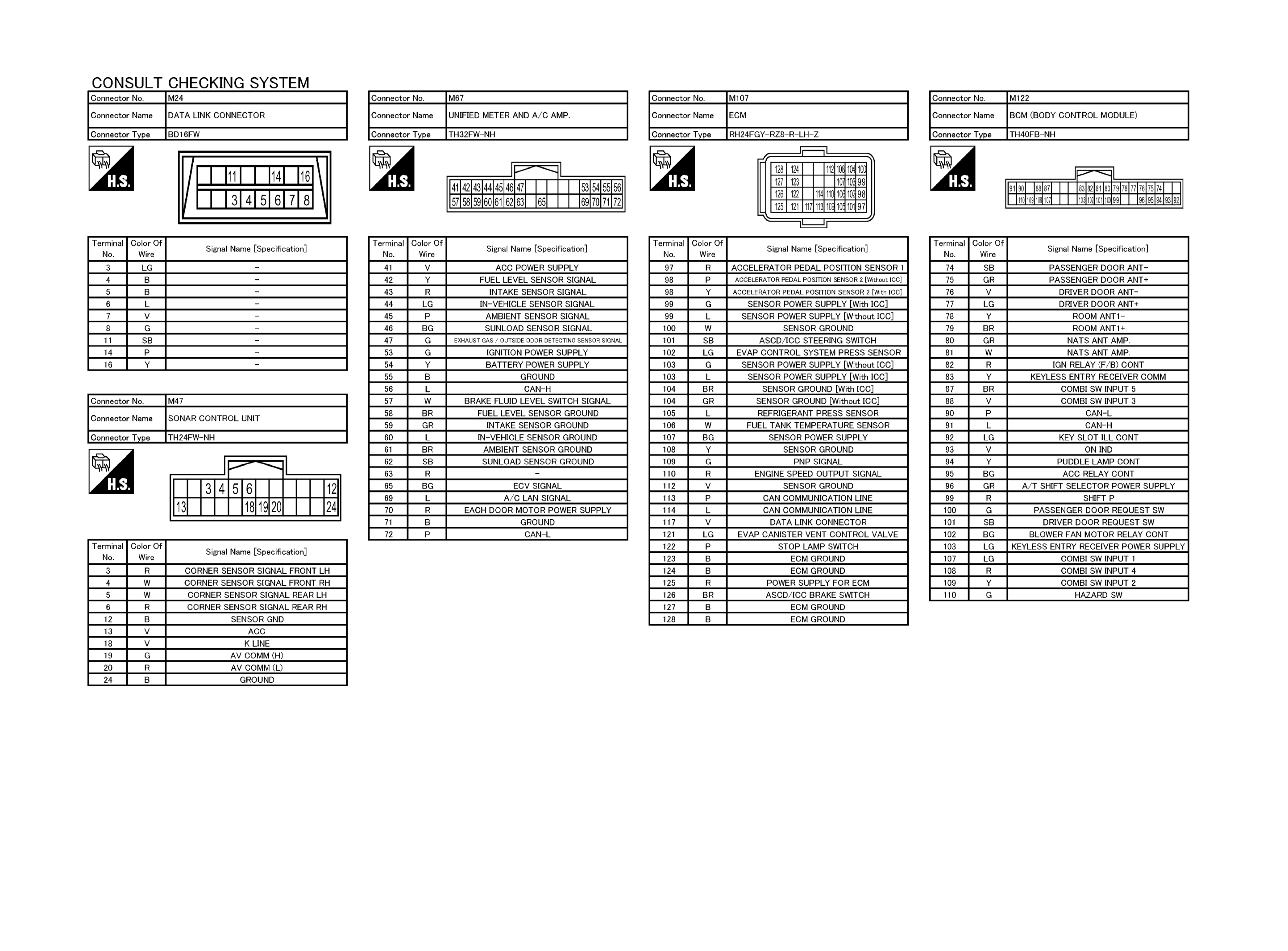

Fig 3: Consult/GST Checking System Connector End Views (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

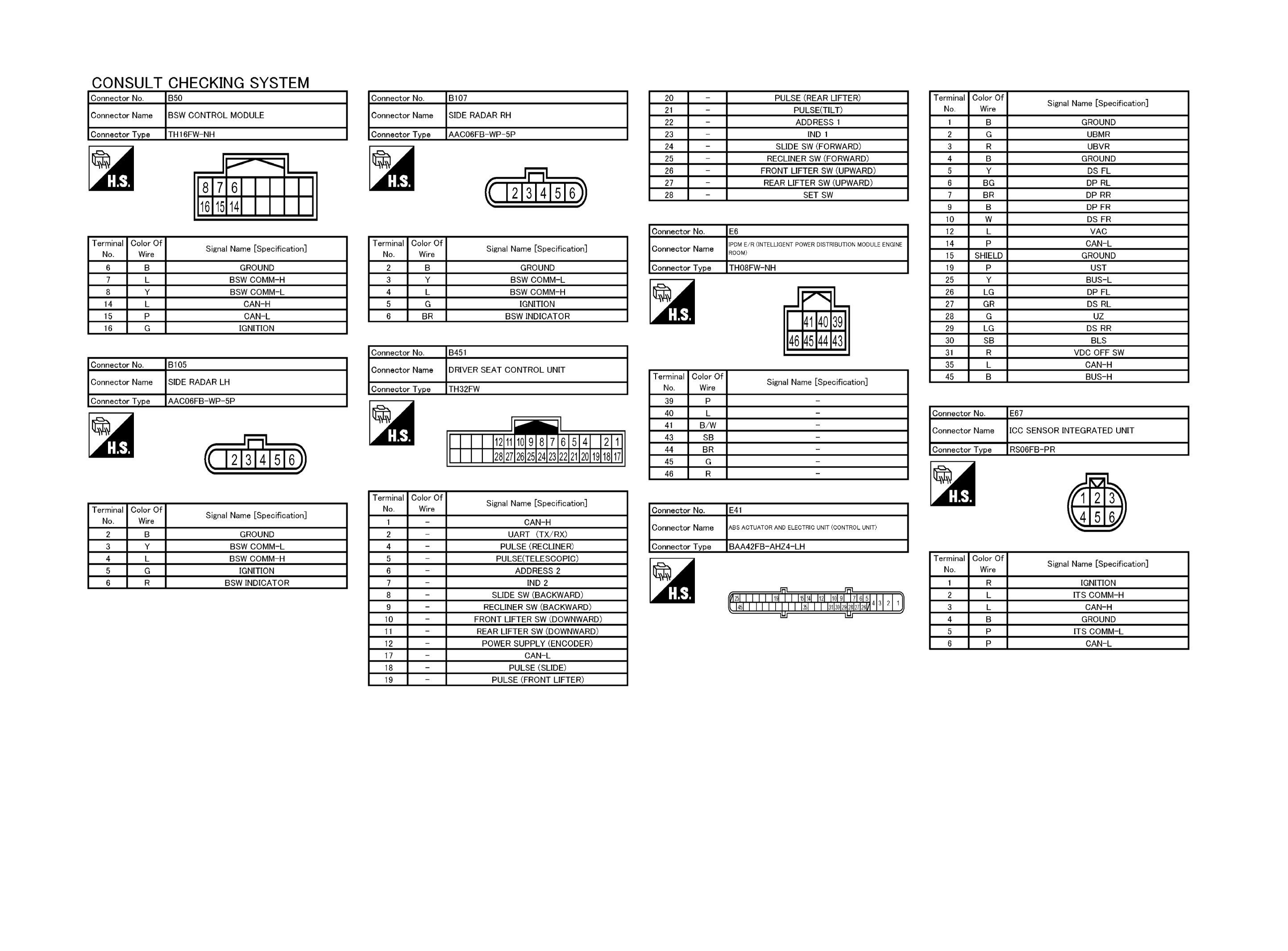

Fig 4: Consult/GST Checking System Connector End Views (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

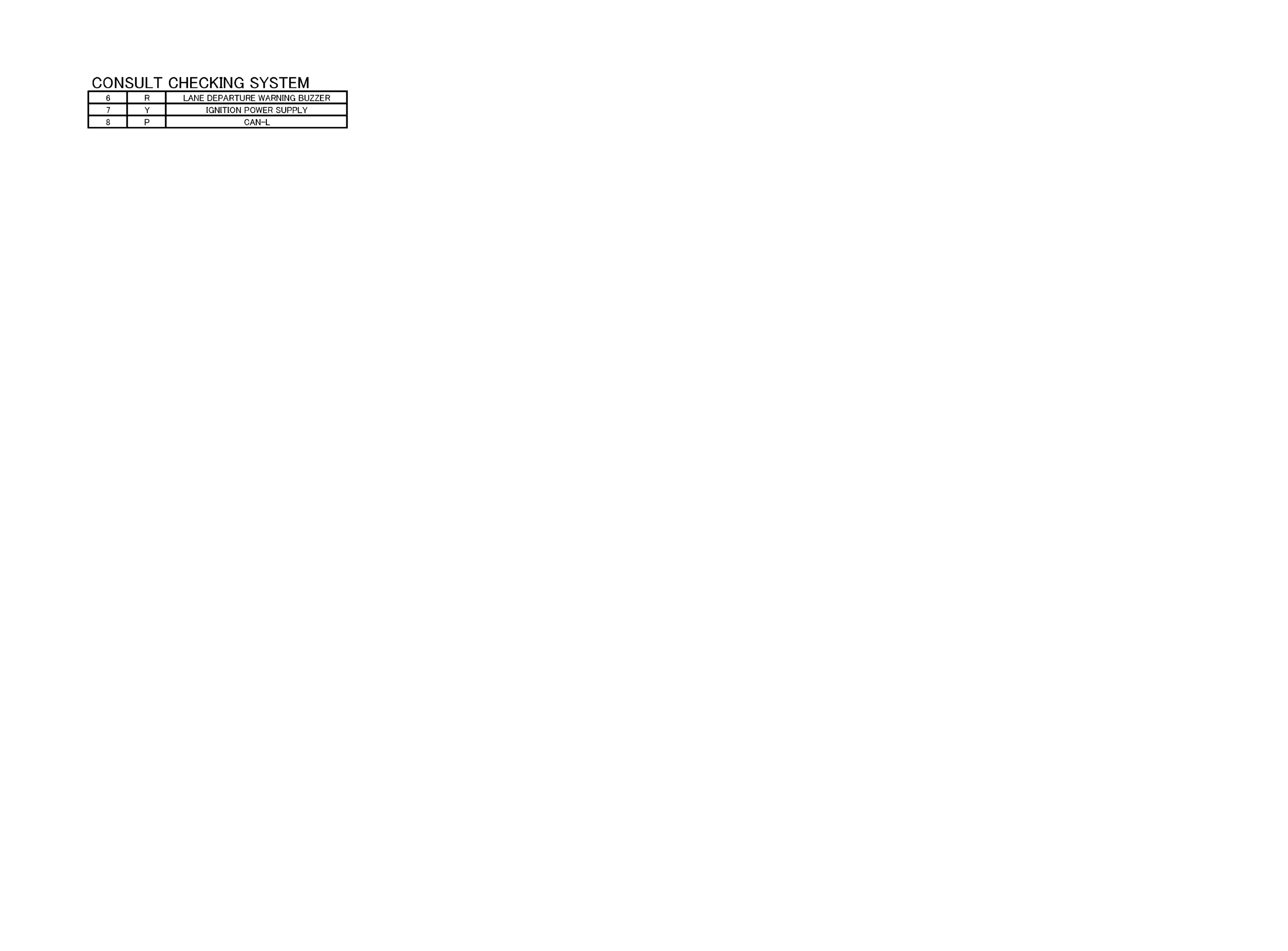

Fig 5: Consult/GST Checking System Connector End Views (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
