Engine Compartment

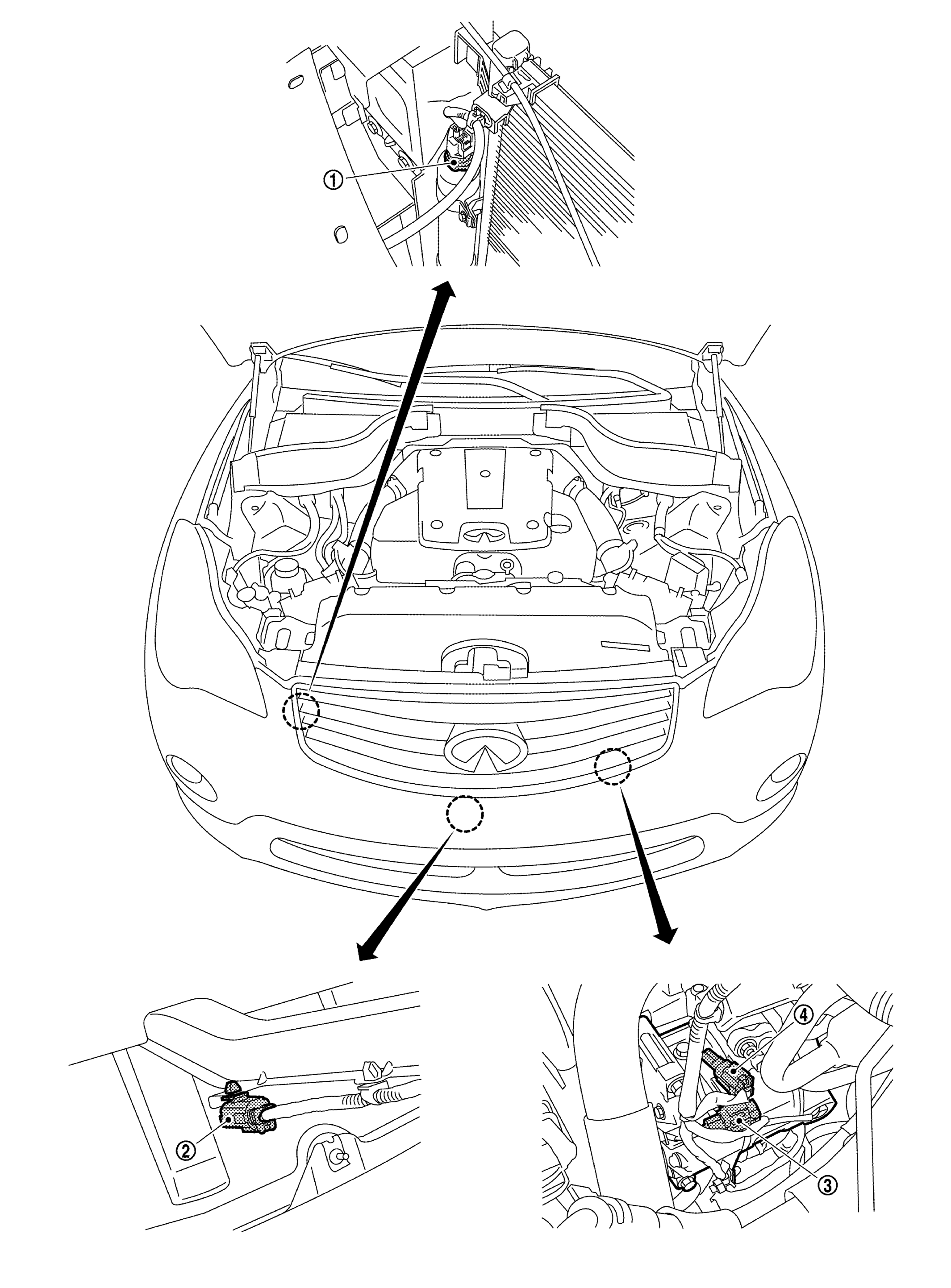

Fig 1: Automatic Air Conditioner Component Parts Location (Engine Compartment)
GNSJPIIA0715ZZ-715Courtesy of NISSAN NORTH AMERICA, INC.
1. Refrigerant pressure sensor 2. Ambient sensor 3. Compressor (magnet clutch)
4. Compressor (ECV)
