Passenger Compartment

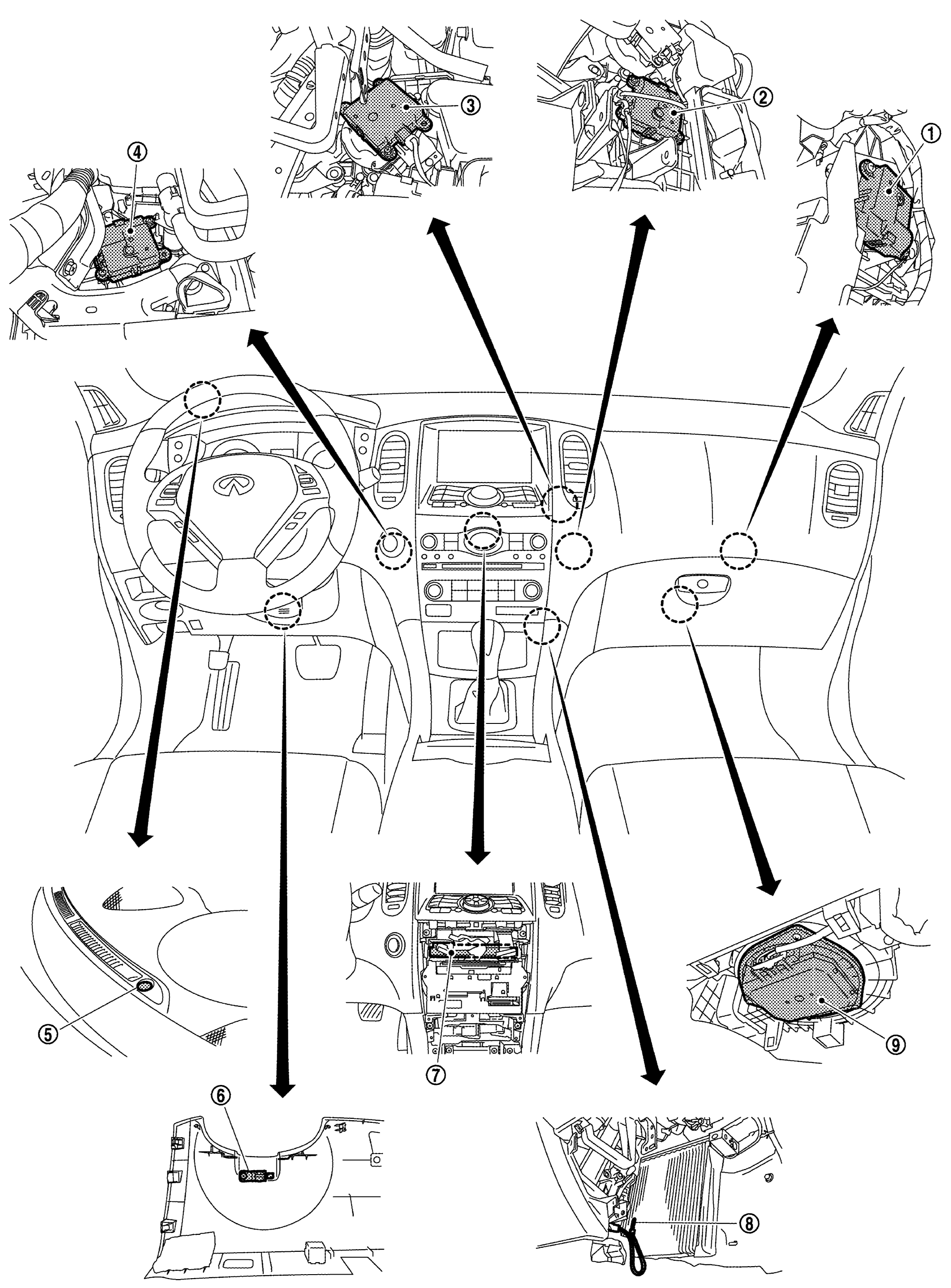

Fig 1: Automatic Air Conditioner Component Parts Location (Passenger Compartment)
GNSJPIIA0716ZZ-716Courtesy of NISSAN NORTH AMERICA, INC.
1. Intake door motor 2. Air mix door motor (passenger side) 3. Mode door motor
4. Air mix door motor (driver side) 5. Sunload sensor 6. In - vehicle sensor
7. Unified meter and A/C amp. 8. Intake sensor 9. Blower motor
