BCM Connector End Views

Fig 1: BCM Connector End Views (1 Of 10)

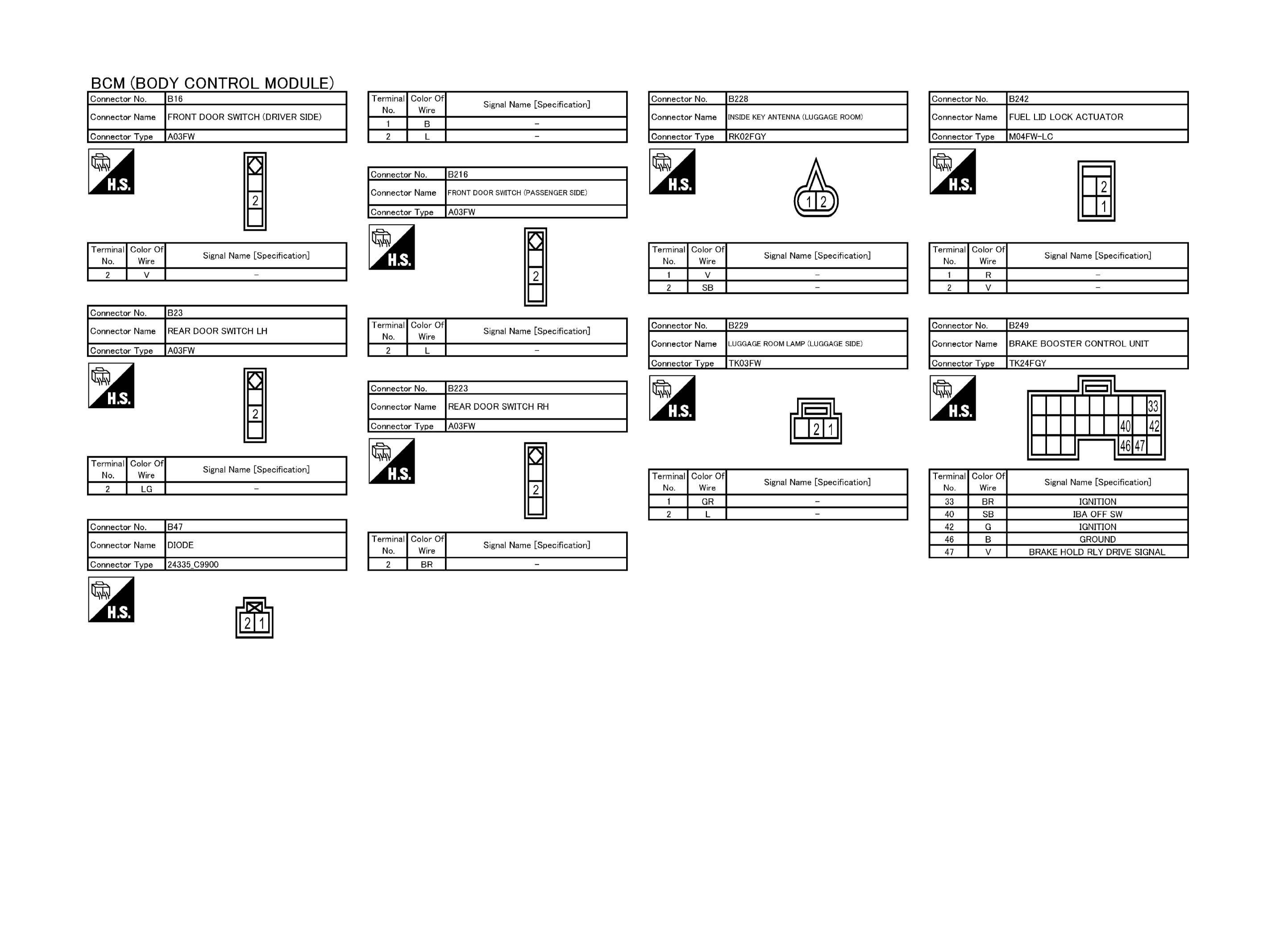

GNSJRMWF4748GB-748

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: BCM Connector End Views (2 Of 10)

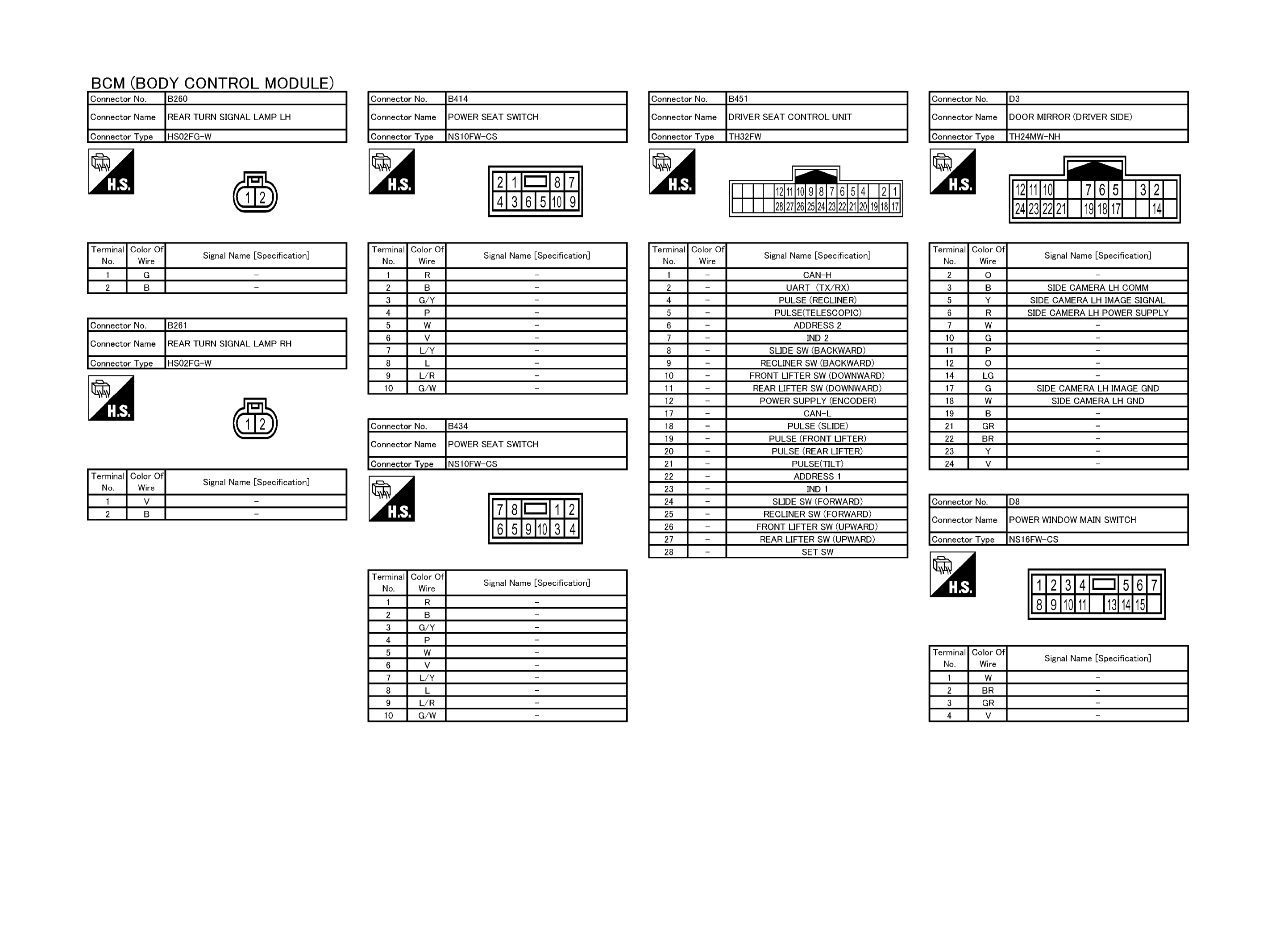

GNSJRMWF4749GB-749

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: BCM Connector End Views (3 Of 10)

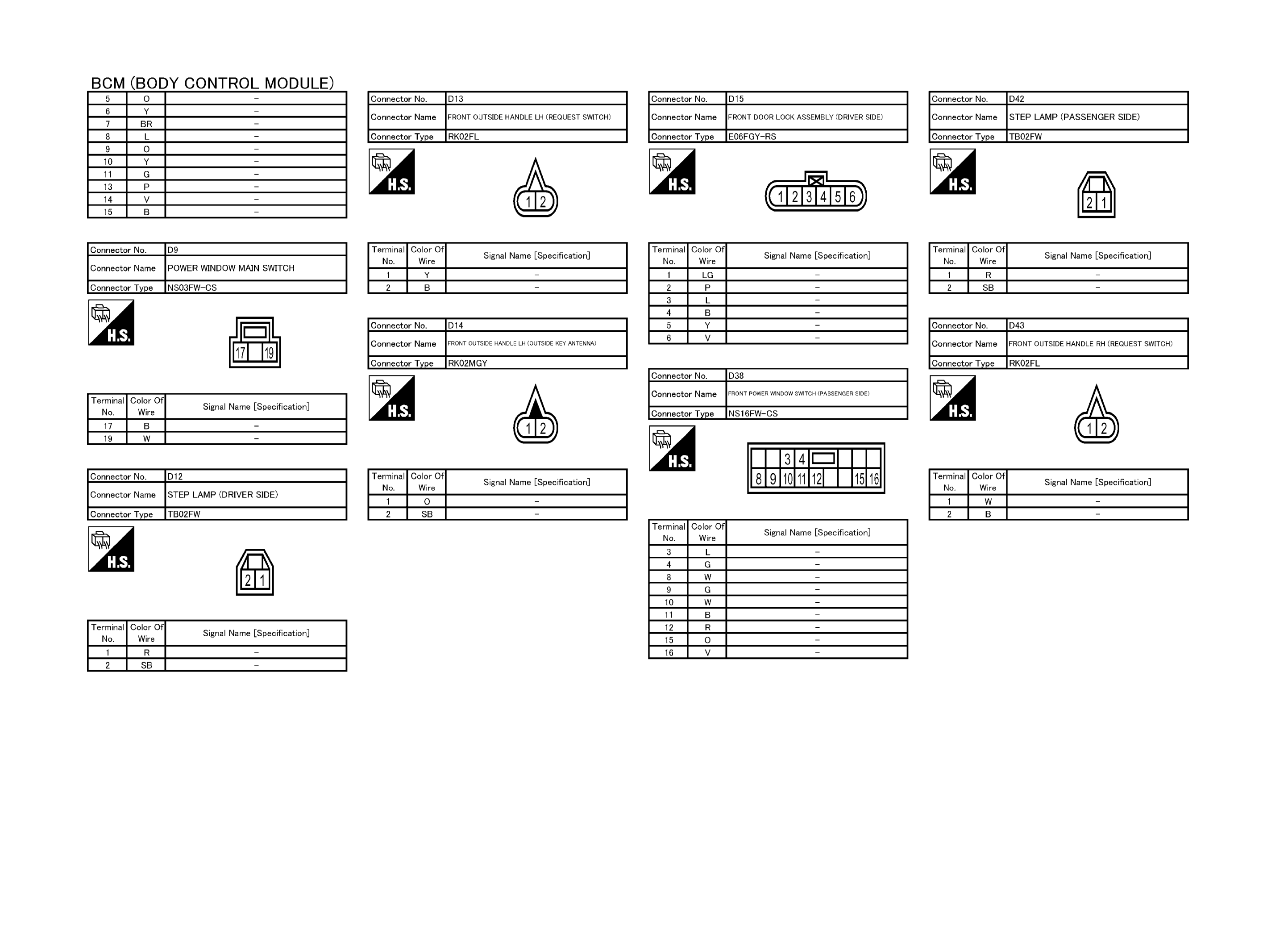

GNSJRMWF4750GB-750

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: BCM Connector End Views (4 Of 10)

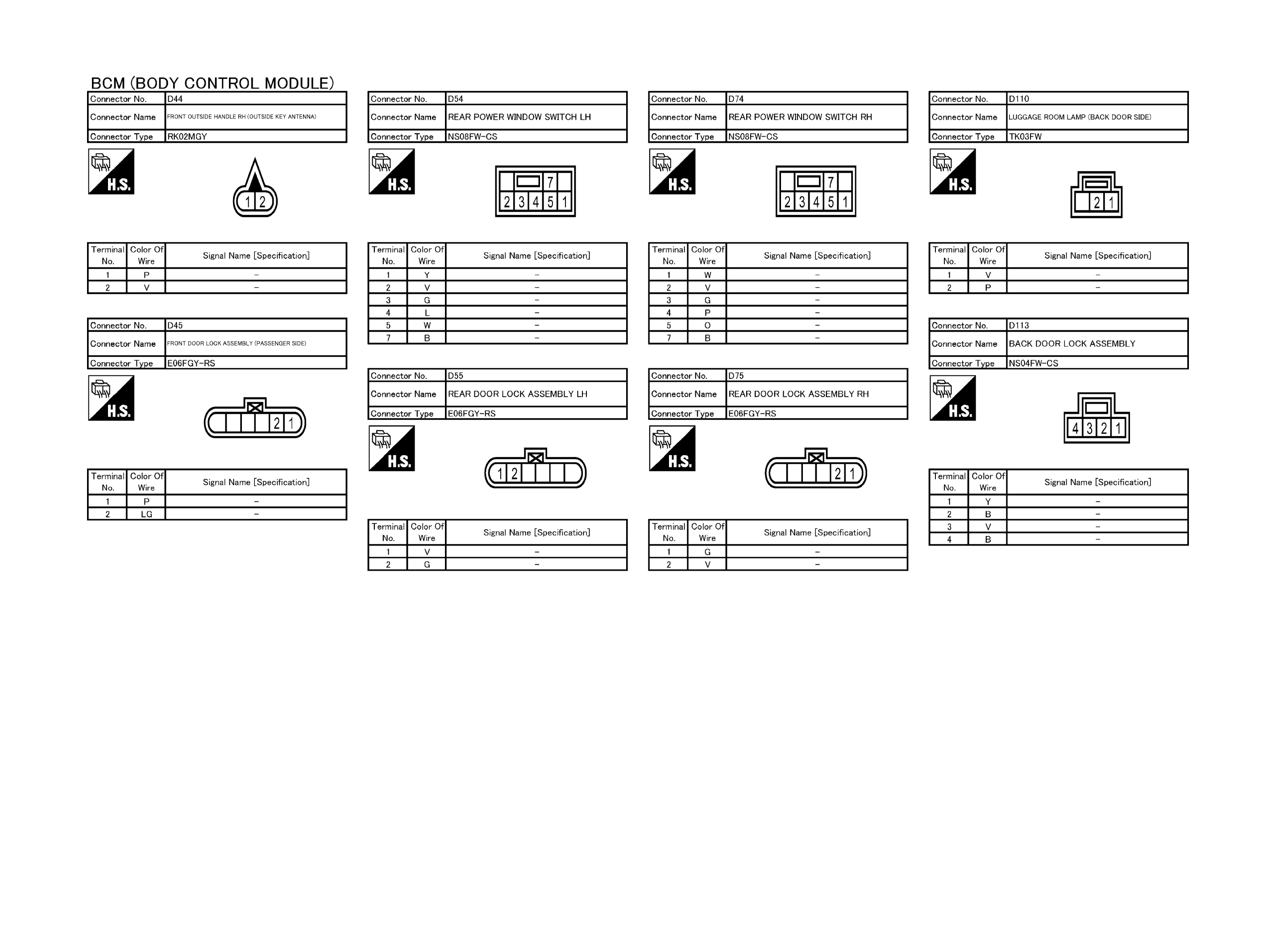

GNSJRMWF4751GB-751

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: BCM Connector End Views (5 Of 10)

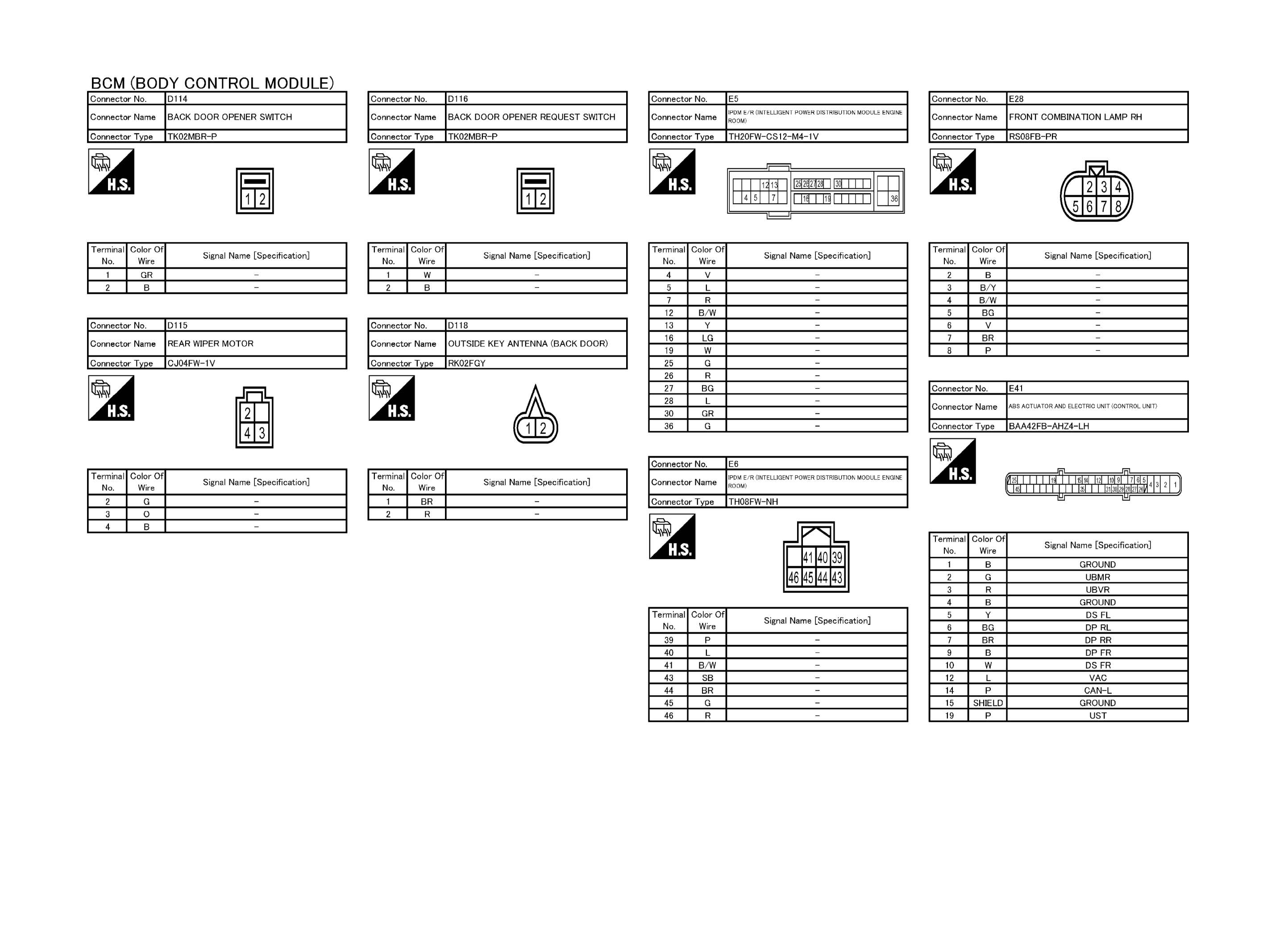

GNSJRMWF4752GB-752

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: BCM Connector End Views (6 Of 10)

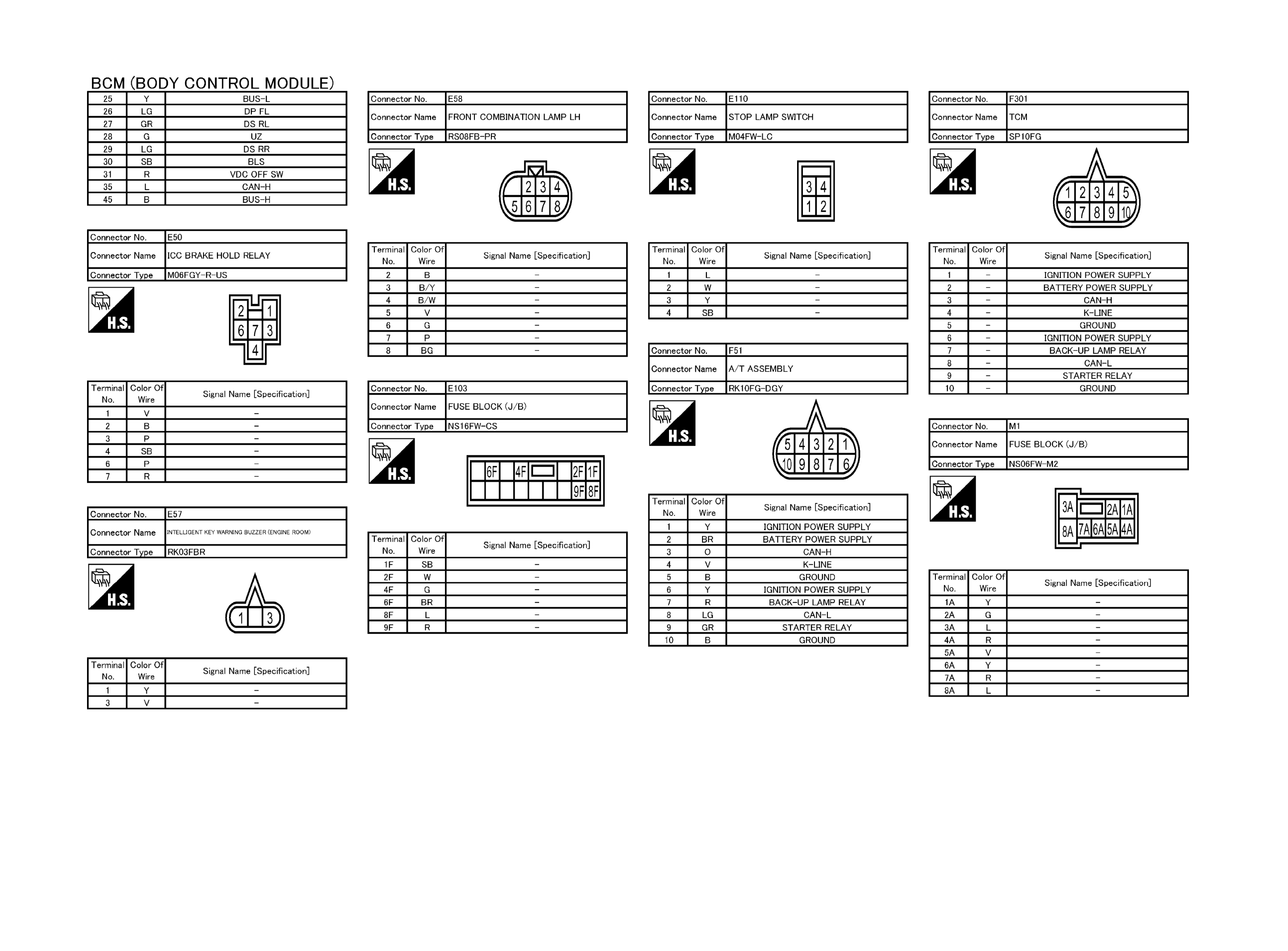

GNSJRMWF4753GB-753

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: BCM Connector End Views (7 Of 10)

GNSJRMWF4754GB-754

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: BCM Connector End Views (8 Of 10)

GNSJRMWF4755GB-755

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: BCM Connector End Views (9 Of 10)

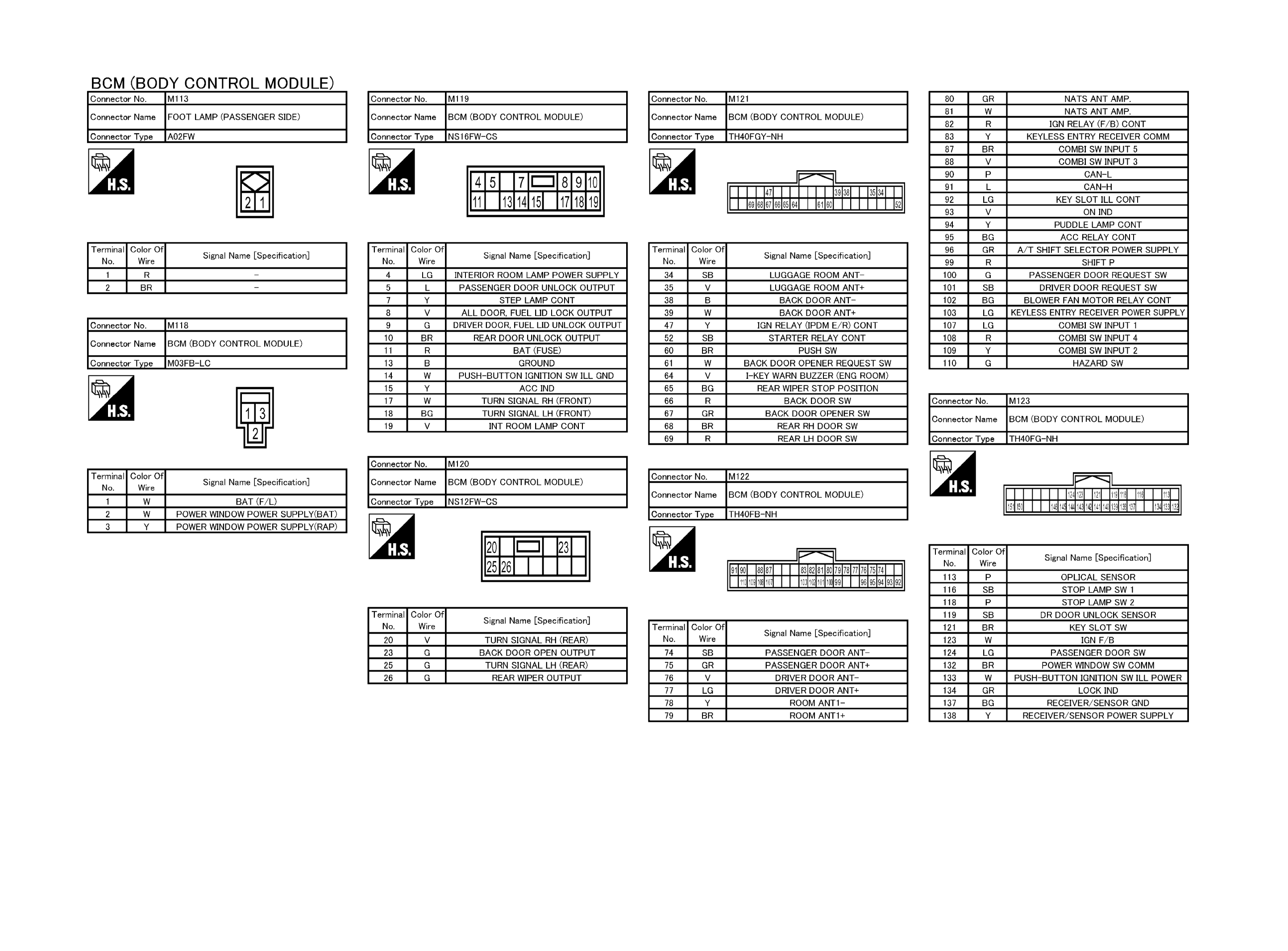

GNSJRMWF4756GB-756

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: BCM Connector End Views (10 Of 10)

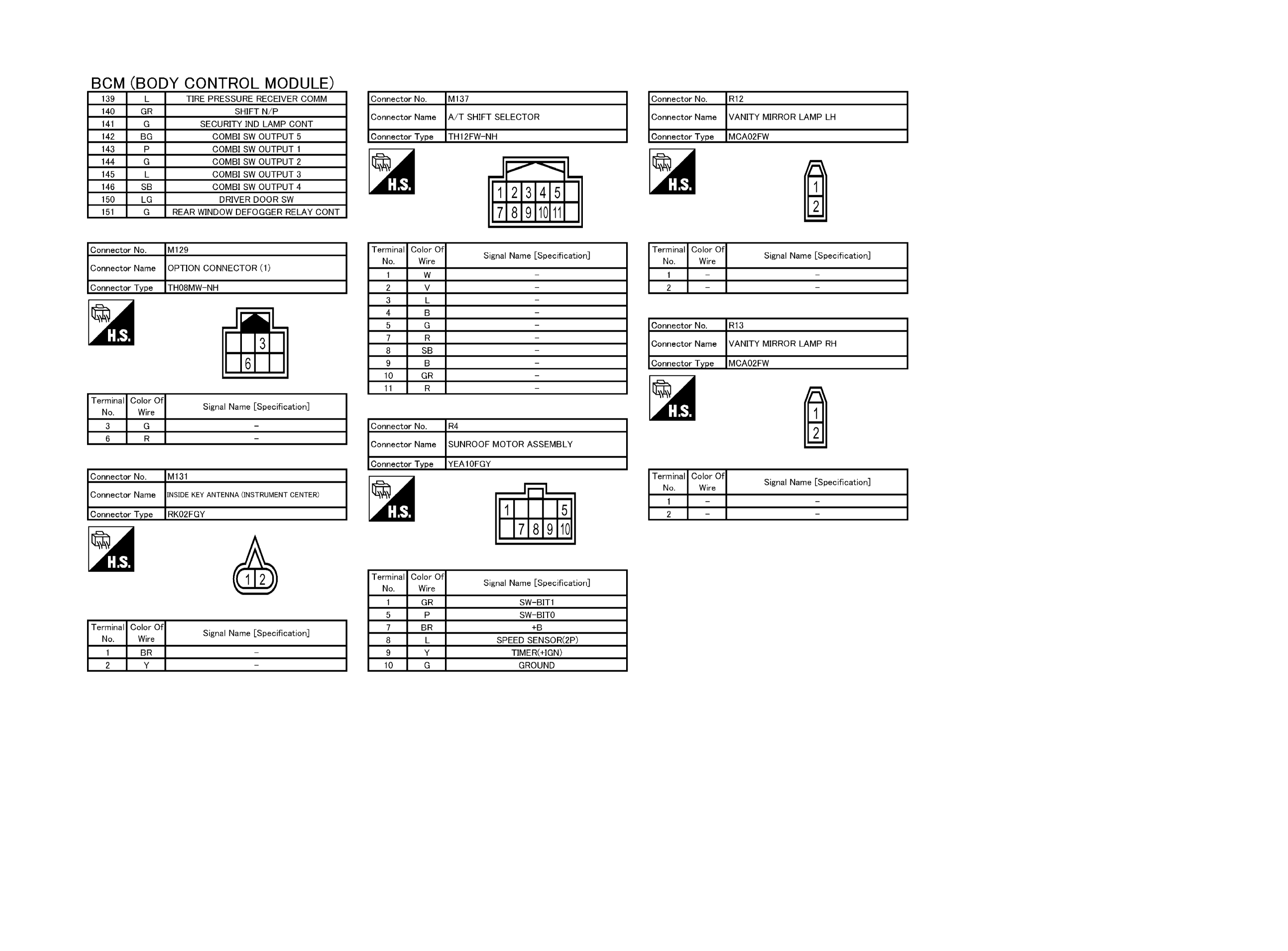

GNSJRMWF4757GB-757

Courtesy of NISSAN NORTH AMERICA, INC.
