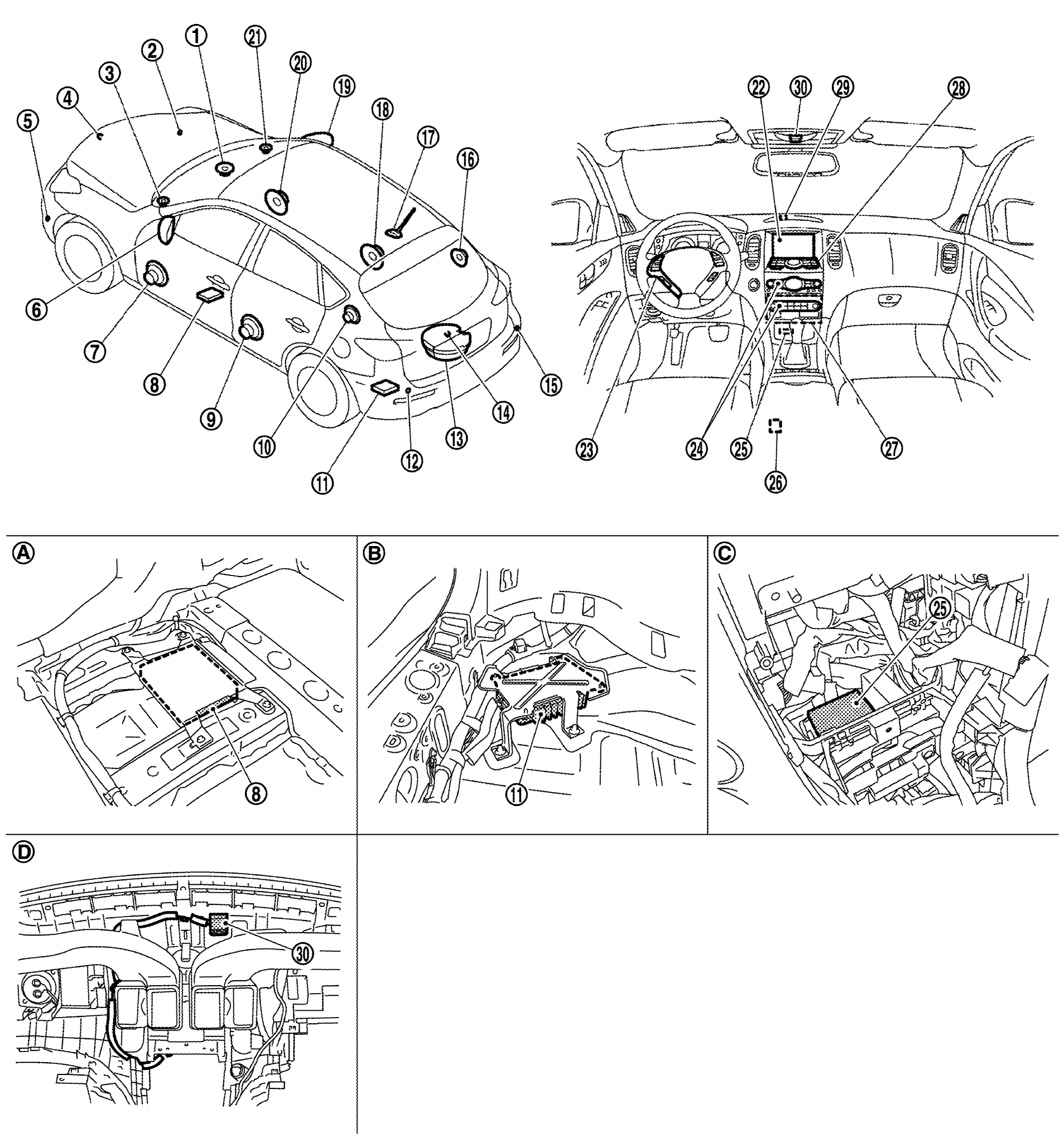

| 1. |
Center Speaker |
2. |
Corner Sensor Front RH |
3. |
Front Squawker LH |
| 4. |
Front Camera |
5. |
Corner Sensor Front LH |
6. |
Side Camera LH |
| 7. |
Front Door Speaker LH |
8. |
Around View Monitor Control Unit |
9. |
Rear Door Speaker LH |
| 10. |
Rear Squawker LH |
11. |
BOSE Amp. |
12. |
Corner Sensor Rear LH |
| 13. |
Woofer |
14. |
Rear Camera |
15. |
Corner Sensor Rear RH |
| 16. |
Rear Squawker RH |
17. |
Antenna Base (Antenna Amp. And Satellite Antenna) |
18. |
Rear Door Speaker RH |
| 19. |
Side Camera RH |
20. |
Front Door Speaker RH |
21. |
Front Squawker RH |
| 22. |
Display Unit |
23. |
Steering Switch |
24. |
Preset Switch |
| 25. |
Sonar Control Unit (With Around View Monitor) |
26. |
USB Connector |
27. |
AV Control Unit |
| 28. |
Multifunction Switch |
29. |
GPS Antenna |
30. |
Microphone |
| A. |
Under Front Seat (LH Side) |
B. |
Luggage Floor (LH Side) |
C. |
Console Pocket Assembly Removed Condition |
| D. |
Instrument Panel Rear Side |
|
|
|
|
