Power Window System Connector End Views

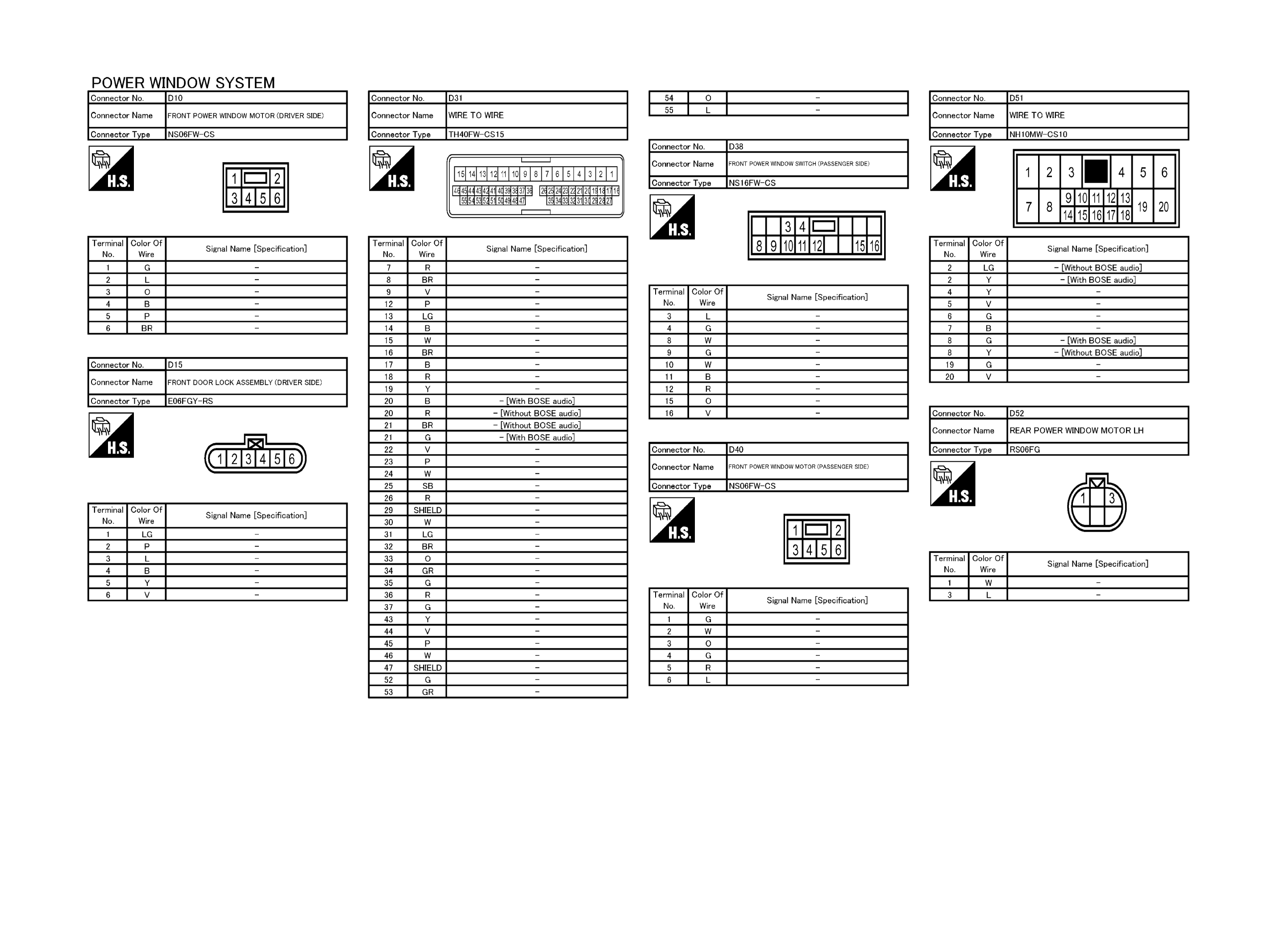

Fig 1: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

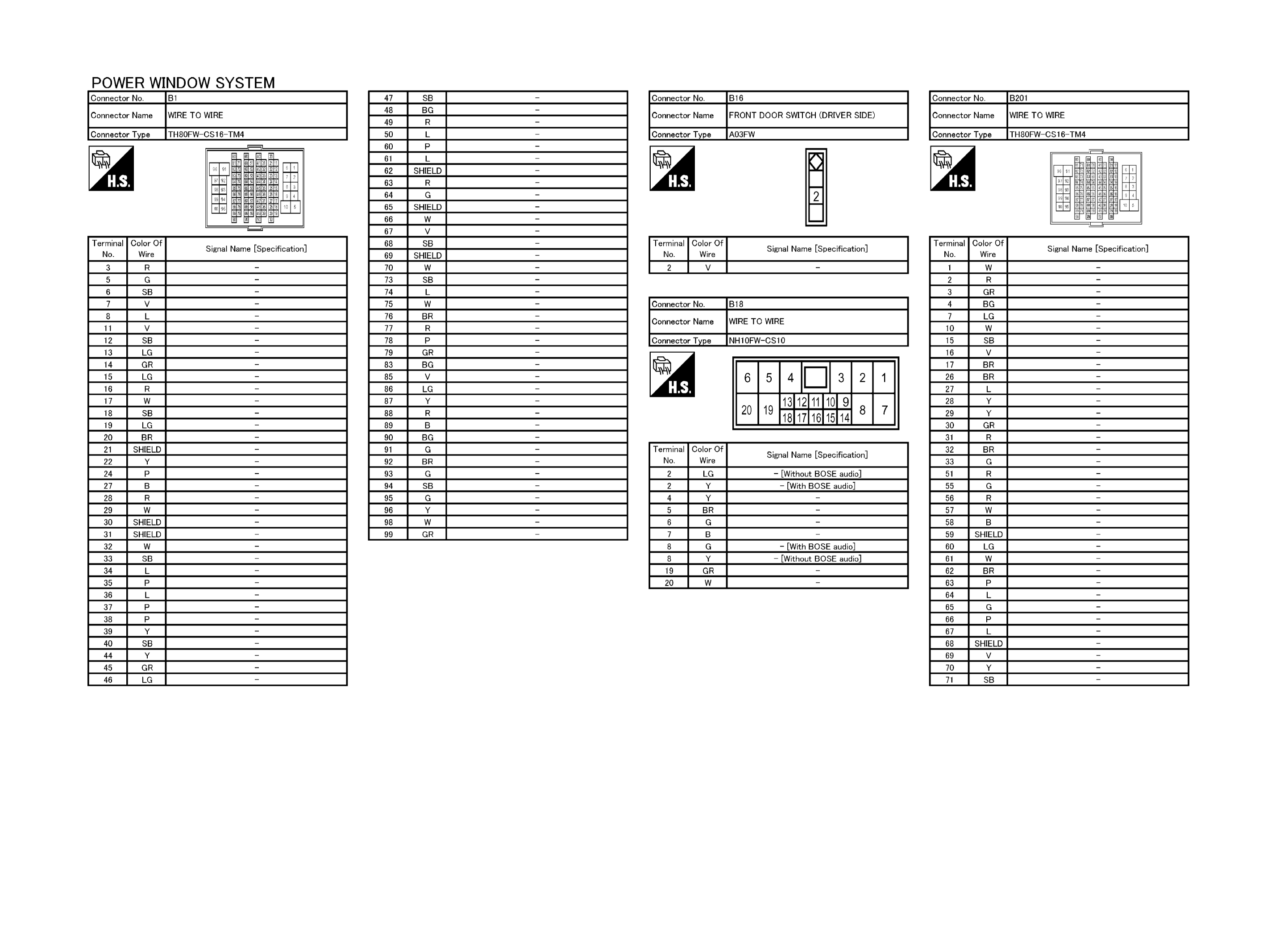

Fig 2: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

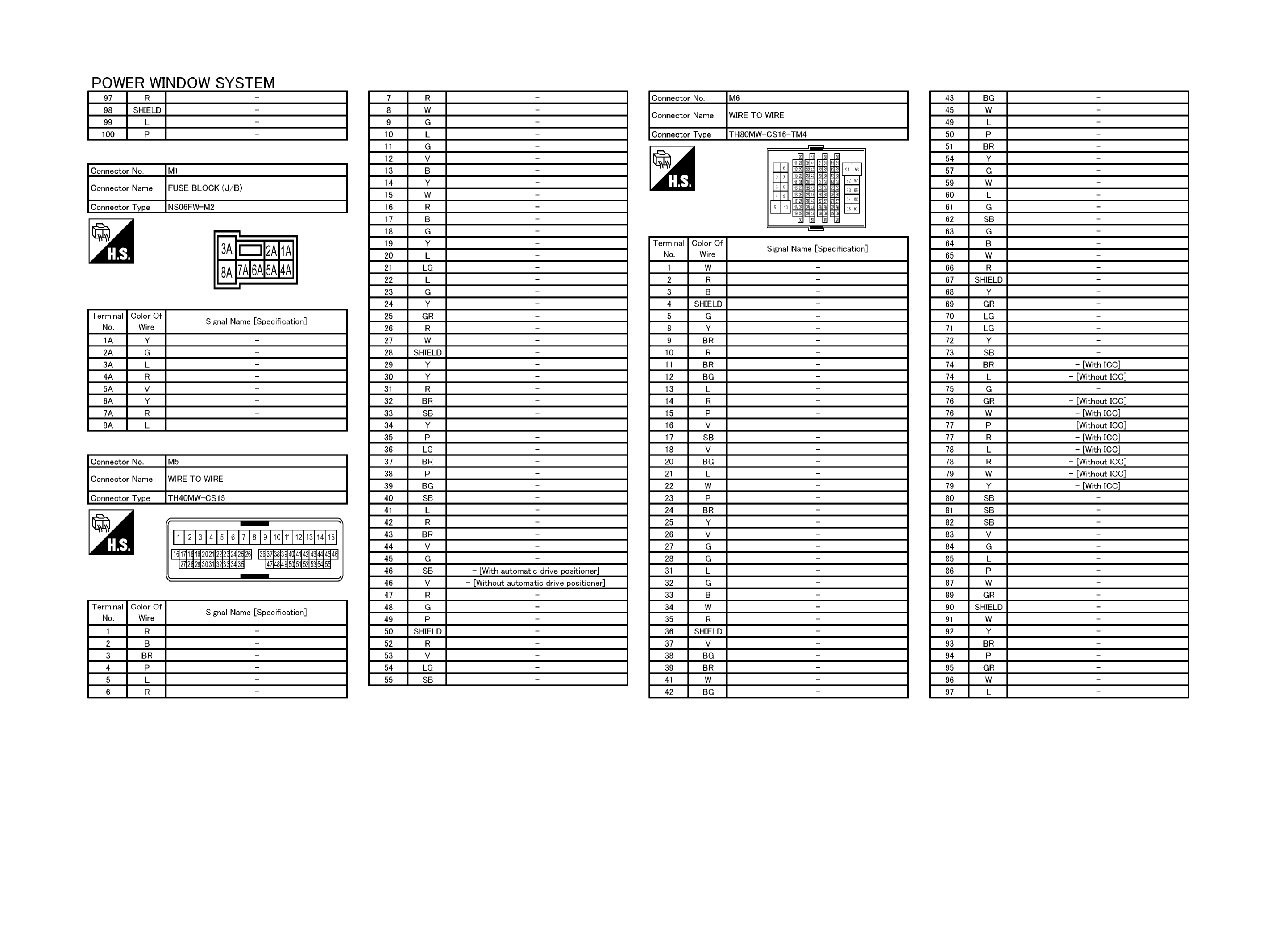

Fig 3: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

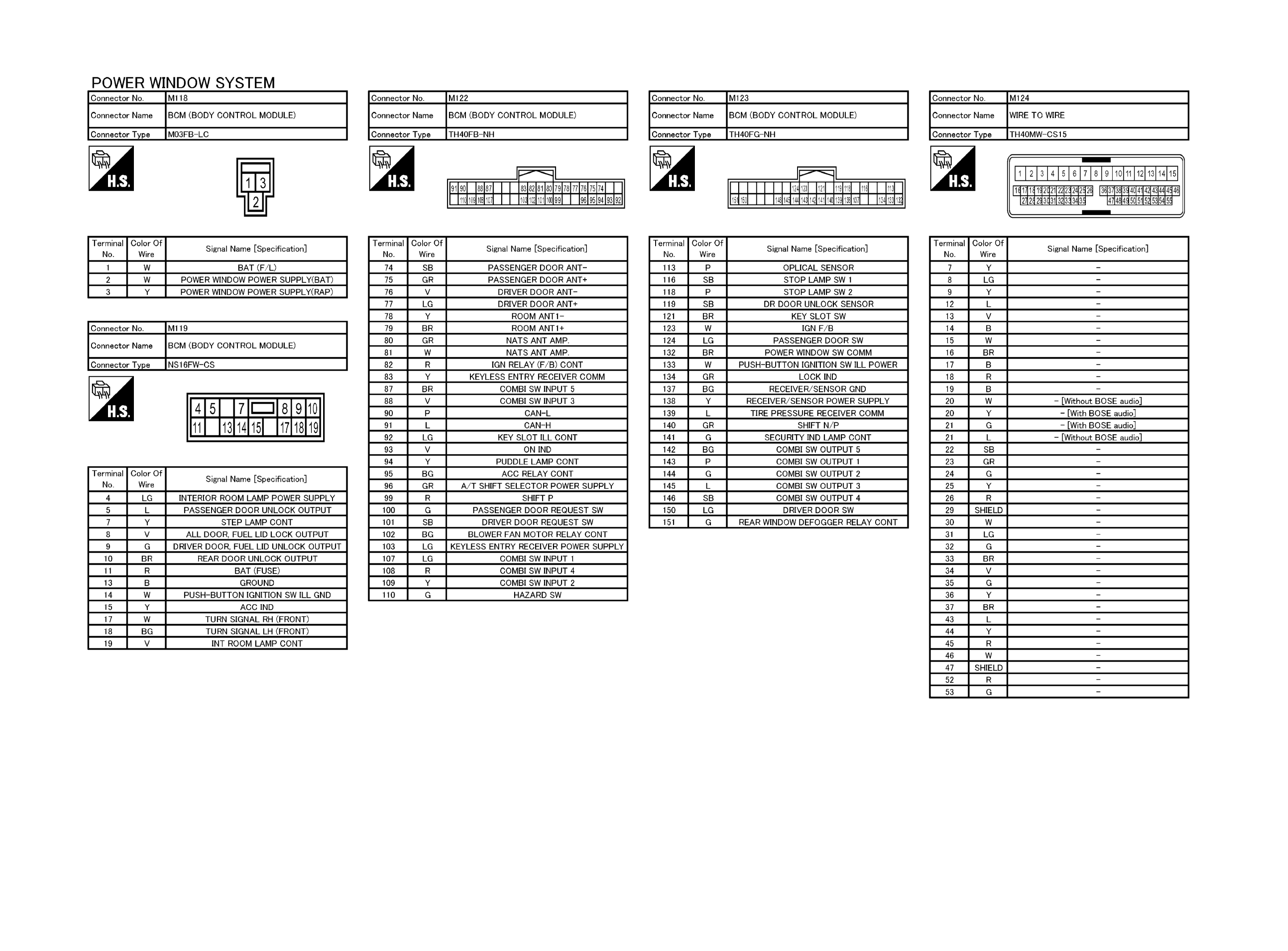

Fig 4: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

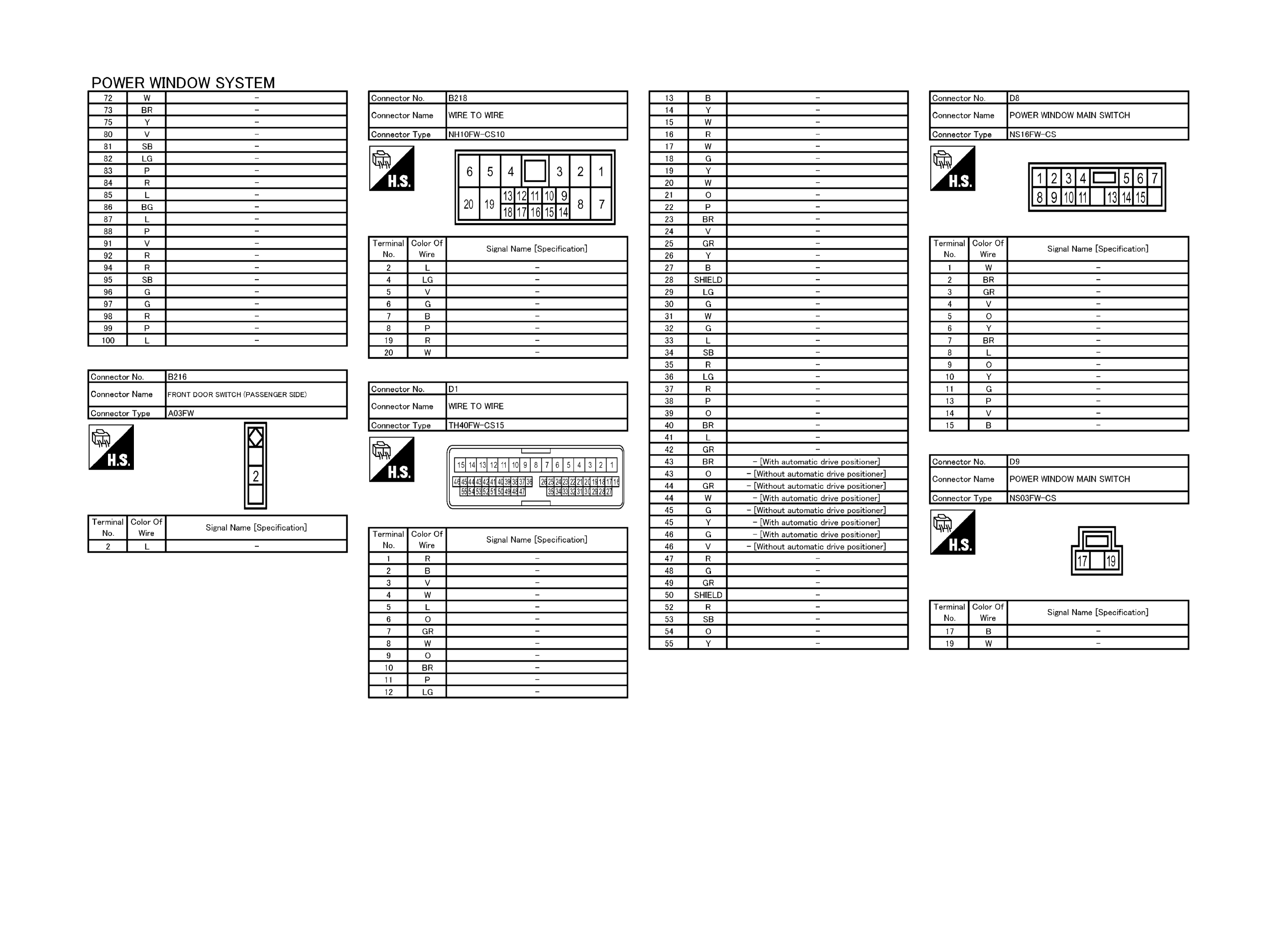

Fig 5: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

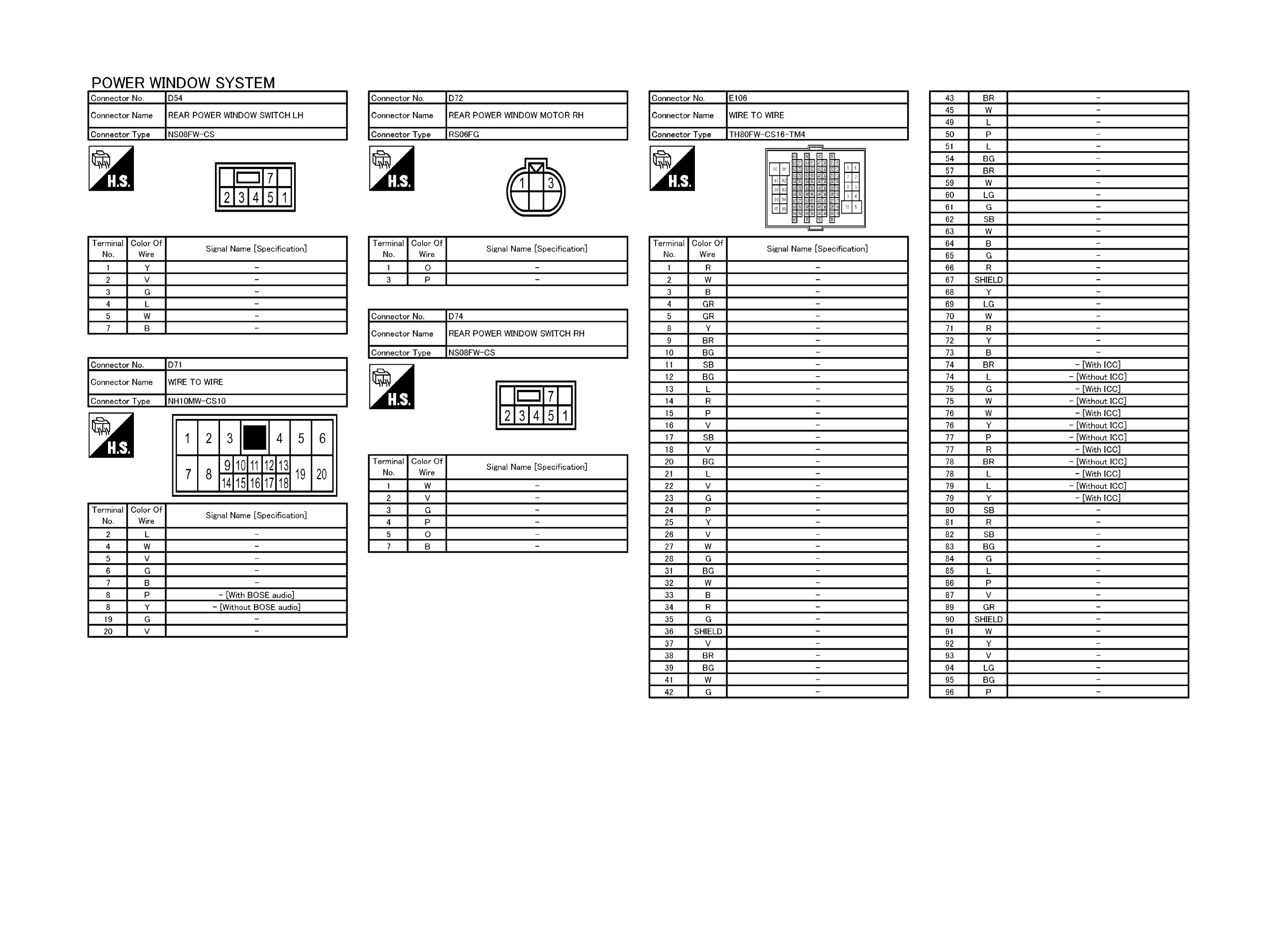

Fig 6: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

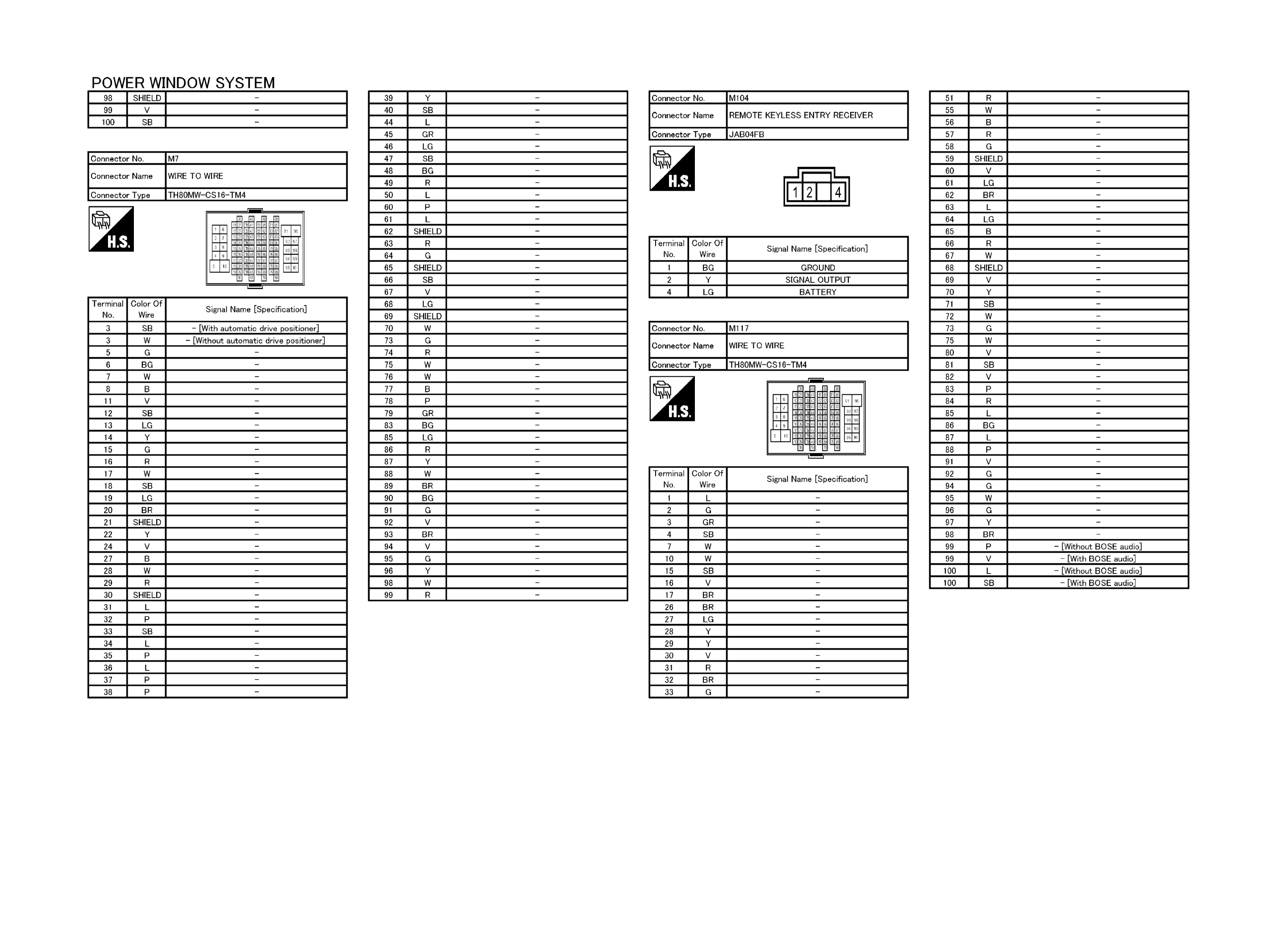

Fig 7: Power Window System Connector End Views (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

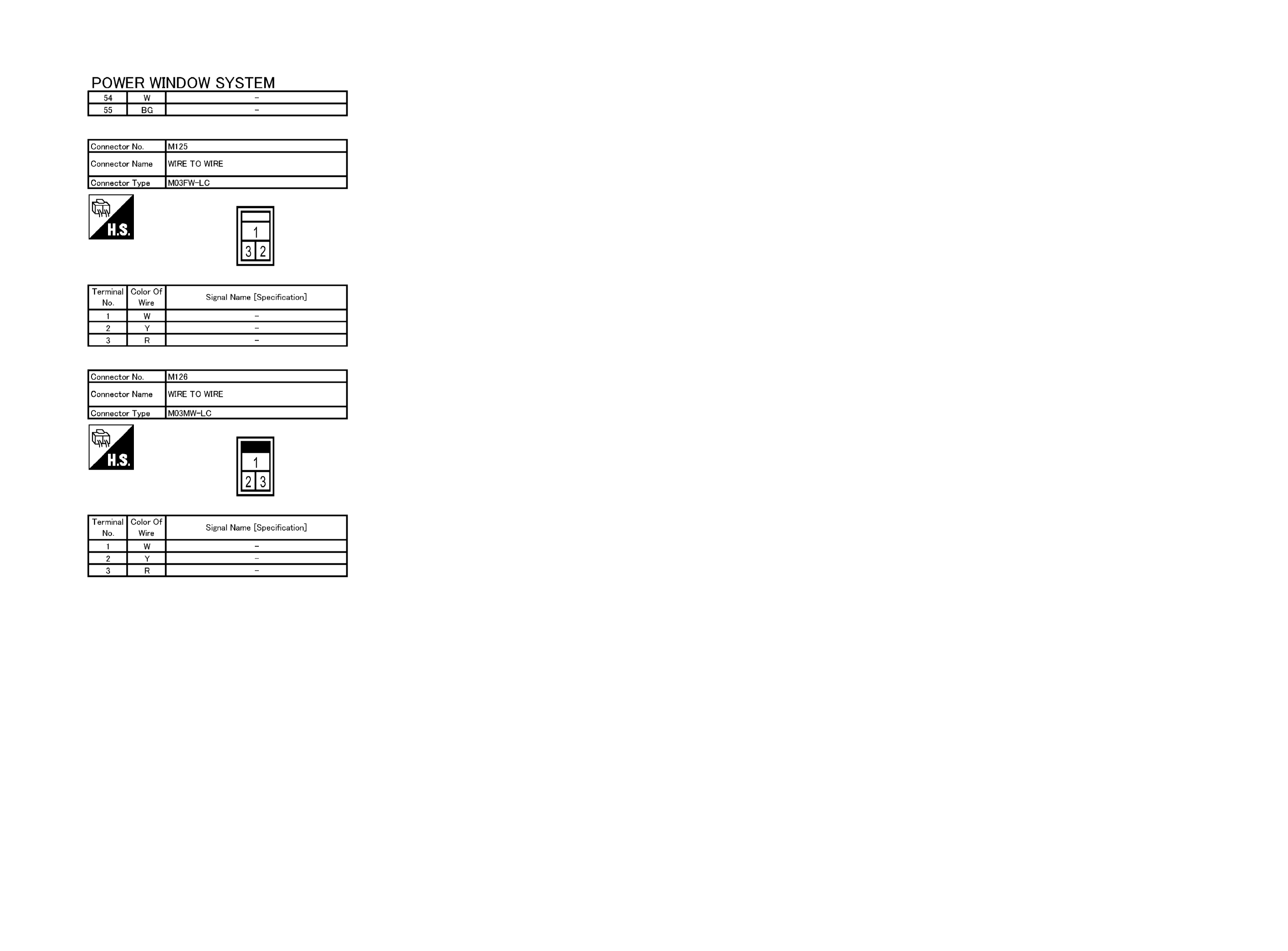

Fig 8: Power Window System Connector End Views (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
