Outside Key Antenna Detection Area

The outside key antenna detection area of rear power liftgate open function is in the range of approximately 80 cm (31.50 in) surrounding the outside key antenna (rear bumper) (1). However, this operating range depends on the ambient conditions.

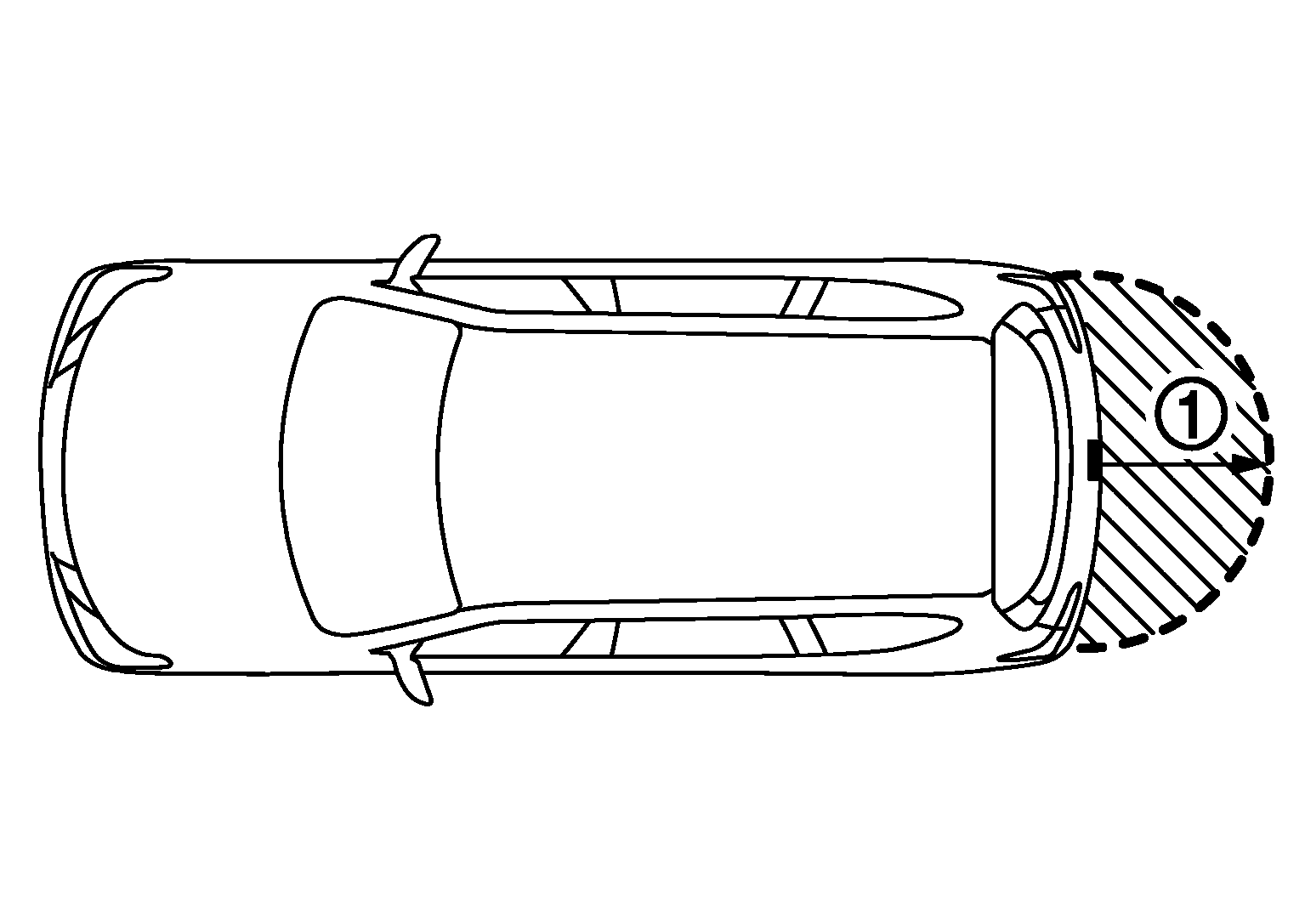

Fig 1: Identifying Outside Key Antenna Detection Area Of Back Door Open Function

Courtesy of NISSAN NORTH AMERICA, INC.
