Exploded View With Torque Specifications

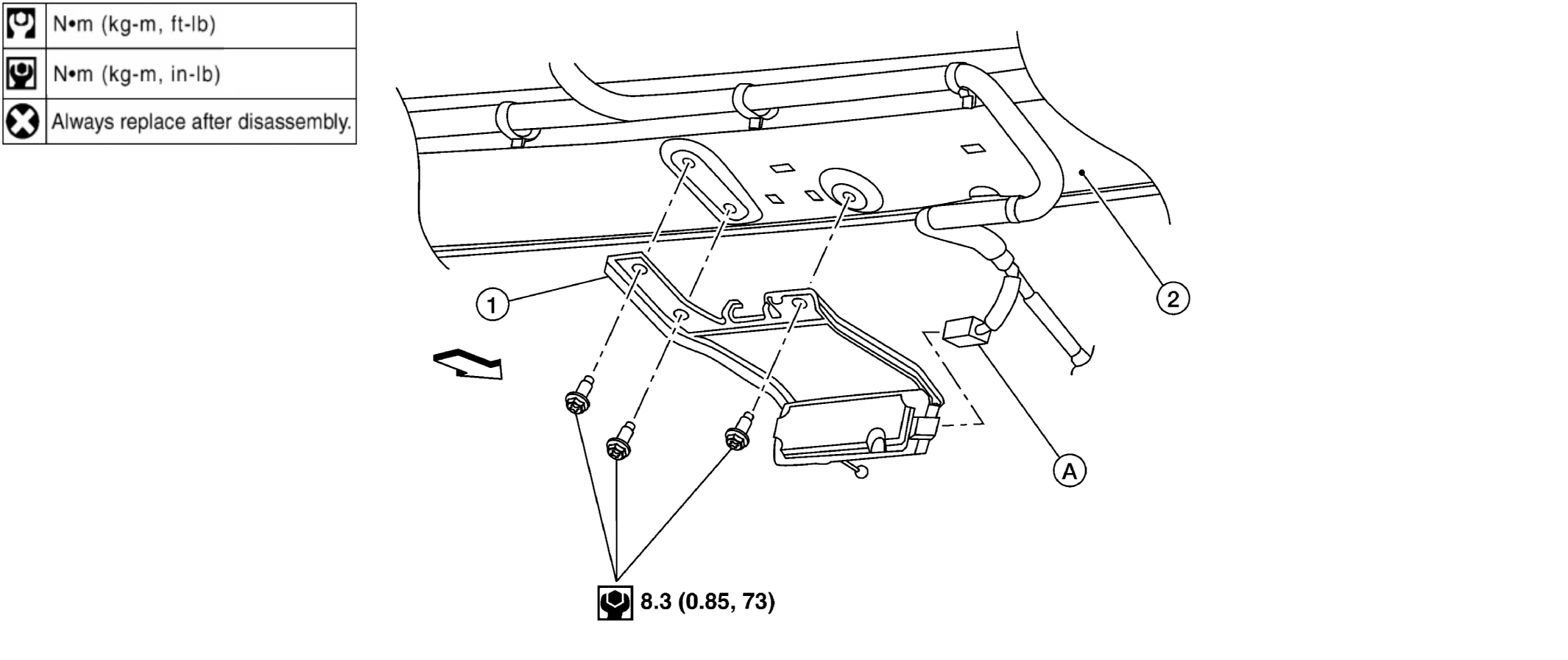

Fig 1: Exploded View Of Lane Camera Unit With Torque Specifications
G09428847ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Lane camera unit 2. Roof rail A. Lane camera unit harness connector
ARROW Front
