Disassembly And Assembly: Disassembly

NOTE:

Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

Disconnect the fuel level sensor unit (A) and the fuel tank temperature sensor (C) harness connectors. Press the tabs on the terminals to release the locking tabs.

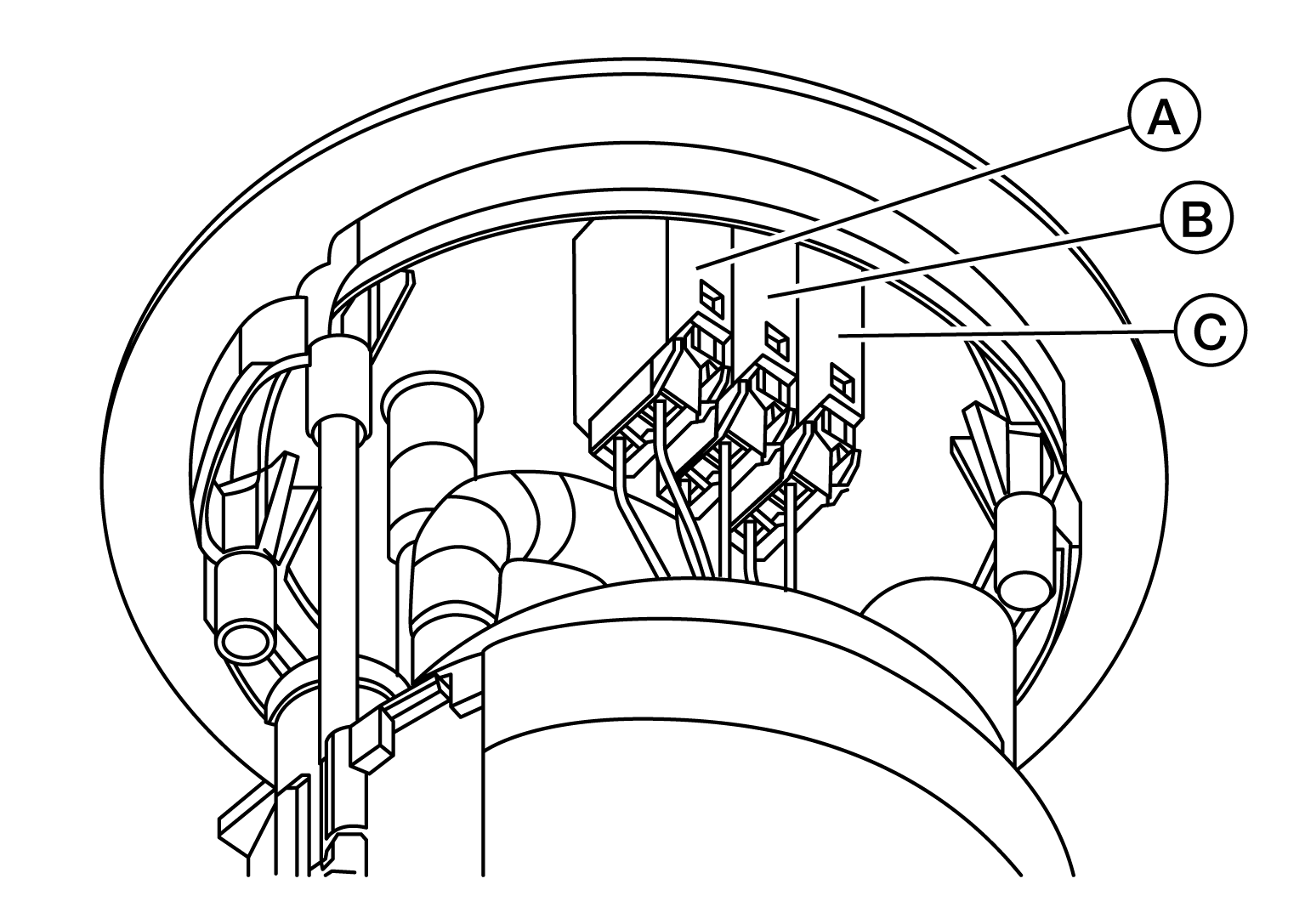

Fig 1: Fuel Level Sensor Unit Harness Connector And Fuel Tank Temperature Sensor Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.

(B) : Fuel pump harness connector
Release the two clips and remove the fuel tank temperature sensor from the pump assembly.

Fig 2: Removing Fuel Temperature Sensor From Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Release the tab (A) and slide the fuel level sensor unit and float arm assembly (B) up to remove.

Fig 3: Removing Fuel Level Sensor Unit And Float Arm Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
