AV Control Unit (With Base Audio System) Connector End View (M44)

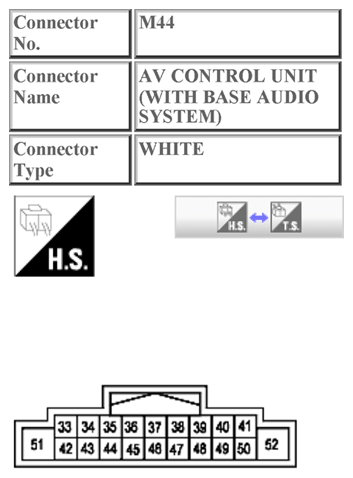

Fig 1: AV Control Unit (With Base Audio System) Connector End View (M44)
G10431140Courtesy of NISSAN NORTH AMERICA, INC.
